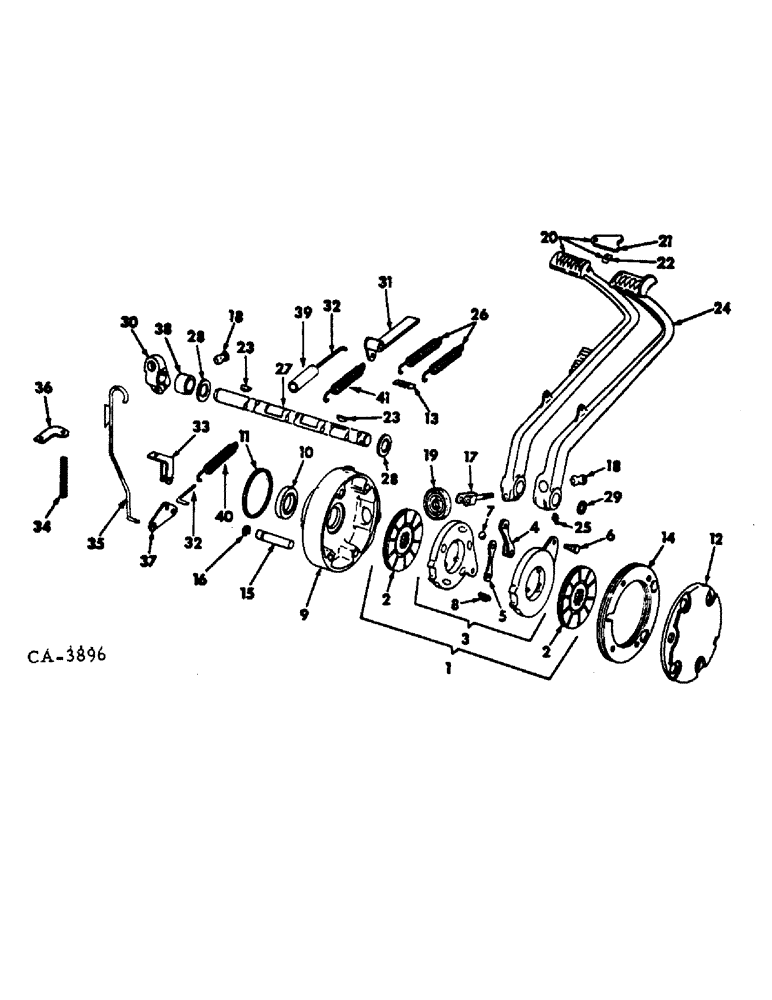

Запчасти Case IH HYDRO 86 (04-01) - BRAKES, BRAKE LOCK AND CONNECTIONS (5.1) - BRAKES

1

388268R91

DISC

BRAKE ASSY, double disc

2шт.

2

391445R91

BRAKE DISC

DISC ASSY, brake

2шт.

3

391446R91

DISC

ASSY, actuating

1шт.

4

357113R1

LINK

actuating plain, Replaces 357114R91

1шт.

5

357113R1

LINK

actuating plain

1шт.

6

354642R1

STUD

link

2шт.

*

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

7

17028R1

BALL,7/8" Dia

5шт.

8

619731C1

SPRING

extension Caliper Return Spring

3шт.

9

389283R1

HOUSING

brake

2шт.

*

393773R1

PLUG

brake housing

2шт.

10

383159R91

OIL SEAL

bull pinion shaft oil

2шт.

11

3046999R1

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

RING, brake housing sealing

2шт.

12

389284R2

COVER

brake housing

2шт.

*

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

8шт.

12

395807R11

COVER, brake housing, hi-clear tractors with seed plate drive

2шт.

*

384339R1

PLUG,Cup, 2 3/16"

2-3/16 cup

2шт.

13

357045R1

ANCHOR

brake pedal return spring

1шт.

*

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

14

392554R2

SHIM

brake housing

20шт.

15

388270R1

PIN

brake reaction

2шт.

16

393076R1

RING

retaining snap

2шт.

17

403840R2

ROD

brake operating

2шт.

*

103026

NUT,3/8"-24, G5

2шт.

*

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, 7/16 x 1.190 pln clevis

2шт.

*

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

18

368298R1

BALL

brake operating rod

2шт.

19

368299R1

INSULATOR

BOOT, enclosure

2шт.

*

112428

PLUG

no. 0 cork, hydrostatic drive tractors, to plug top tapped hole in brake hsg LH only

2шт.

20

388272R11

PEDAL ASSY, LH brake

1шт.

*

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

1шт.

*

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

21

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

22

51293D

SPRING

brake pedal lock plate tension

1шт.

*

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 rd-hd

1шт.

23

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, 3/16 x 1 Woodruff no. 13

2шт.

24

388273R1

PEDAL, RH brake

1шт.

25

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub, right brake pedal

1шт.

26

43229H

SPRING

brake pedal return

2шт.

27

400383R1

SHAFT

brake pedal

1шт.

*

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

28

48983D

THRUST WASHER

brake pedal shaft thrust

2шт.

29

40435D

WASHER, brake pedal shaft

1шт.

30

388275R1

LEVER

brake operating

1шт.

*

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

1шт.

*

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex

1шт.

*

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, 3/16 x 1 Woodruff 13

1шт.

31

530366R1

LATCH

ASSY, brake lock

1шт.

*

22634R1

PIN,3/8" x 1 3/4"

3/8 x 1-3/4 znd std-hd

1шт.

*

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

32

69684C1

ROD

brake lock lower, 666 tractors, Start Serial: 12402

2шт.

32

69684C1

ROD

brake lock lower, hydro 70 tractors, Start Serial: 8187

2шт.

32

69684C1

ROD

brake lock lower, 686 and hydro 86 tractors

2шт.

32

388279R1

ROD, brake lock lower, 666 tractors, Serial Range: -12401

1шт.

32

388279R1

ROD, brake lock lower, hydro 70 tractors, Serial Range: -8186

1шт.

*

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

2шт.

*

120392

WASHER,1/4", SAE

.28 x .52 x .05

2шт.

33

388280R21

BRACKET

ASSY, brake lock lever

1шт.

*

3063983R1

HEADED PIN,5/16" x 1"

PIN, 5/16 x 1 std-hd

1шт.

*

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

34

364847R1

SPRING

brake lock return, 666 tractors, Serial Range: -12401

1шт.

34

364847R1

SPRING

brake lock return, hydro 70 tractors, Serial Range: -8186

1шт.

35

69688C1

ROD

ASSY, brake lock upper

1шт.

*

Q3817

WASHER

.344 x .65 x .021

1шт.

*

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

2шт.

36

388283R2

GUIDE

brake lock rod

1шт.

37

388284R2

SUPPORT

LEVER, brake lock

1шт.

38

396224R1

BUSHING

brake shaft, tractors w/hydrostatic drive

1шт.

39

69685C1

TUBE,0.31" ID, 0.5" OD, 4.5" Length

brake lock rod, 666 tractors, Start Serial: 12402

1шт.

39

69685C1

TUBE,0.31" ID, 0.5" OD, 4.5" Length

brake lock rod, hydro 70 tractors, Start Serial: 8187

1шт.

39

69685C1

TUBE,0.31" ID, 0.5" OD, 4.5" Length

brake lock rod, 686 and hydro 86 tractors

1шт.

40

69686C1

SPRING

brake lock plunger, 666 tractors, Start Serial: 12402

1шт.

40

69686C1

SPRING

brake lock plunger, hydro 70 tractors, Start Serial: 8187

1шт.

40

69686C1

SPRING

brake lock plunger, 686 and hydro 86 tractors

1шт.

41

69687C1

SPRING

brake lock return, 666 tractors, Start Serial: 12402

1шт.

41

69687C1

SPRING

brake lock return, hydro 70 tractors, Start Serial: 8187

1шт.

41

69687C1

SPRING

brake lock return, 686 and hydro 86 tractors

1шт.
