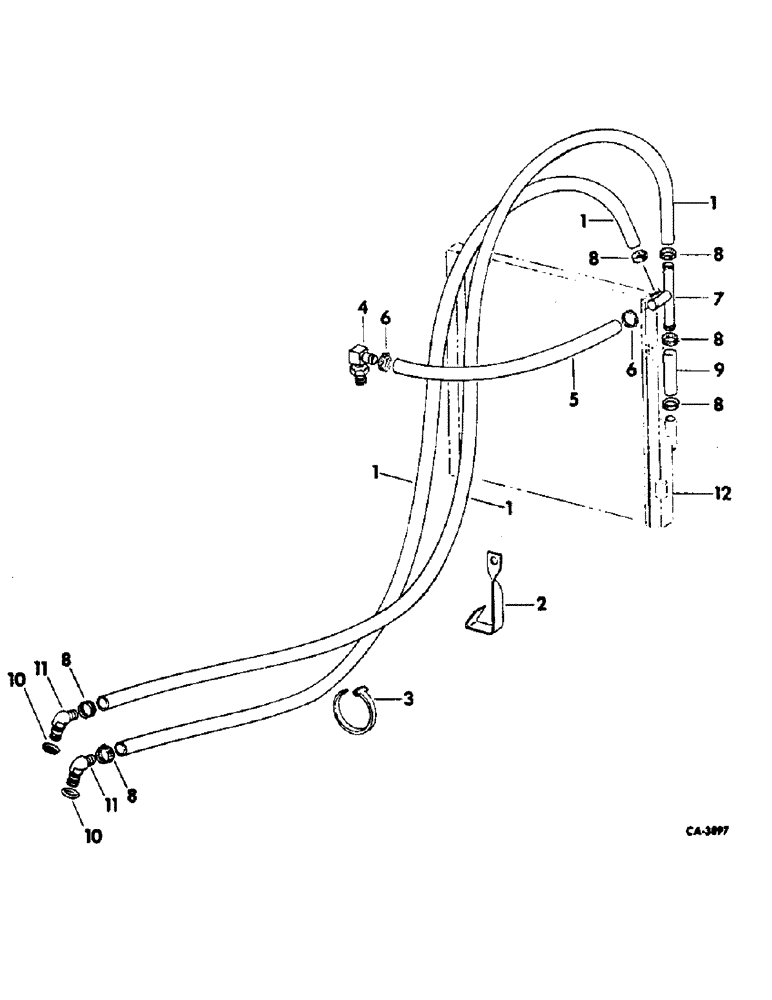

Запчасти Case IH HYDRO 86 (10-14) - HYDRAULICS, OIL COOLER, TUBES & CONNECTIONS, 666, 70 & 86 HYDROSTATIC DRIVEN TRACS. W/ DIESEL ENGINE (07) - HYDRAULICS

1

HOSE, oil cooler supply & return, Furnish 112 in. from bulk hose 73200C1

2шт.

2

68621C1

CLAMP, hose

1шт.

3

70004C1

STRAP, hose lock, tractor w/D-312 engine

1шт.

3

291207C1

CLAMP

STRAP, hose lock, tractor w/D-310 engine

1шт.

4

66132C1

ELBOW, bolster vent hose adapter

1шт.

5

66133C1

HOSE,0.38" ID x 15.50"

Bolster Vent Return 0.38" ID x 15.50"

1шт.

6

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

7

68622C1

TEE ASSY, oil cooler supply front tube

1шт.

8

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, hose

6шт.

9

HOSE, oil cooler tee return front, Furnish 242 in. from bulk hose 73200C1

1шт.

10

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

multi valve elbow

2шт.

11

399705R1

ELBOW, multi valve

2шт.

12

COOLER ASSY, oil, Refer to group 6

1шт.
