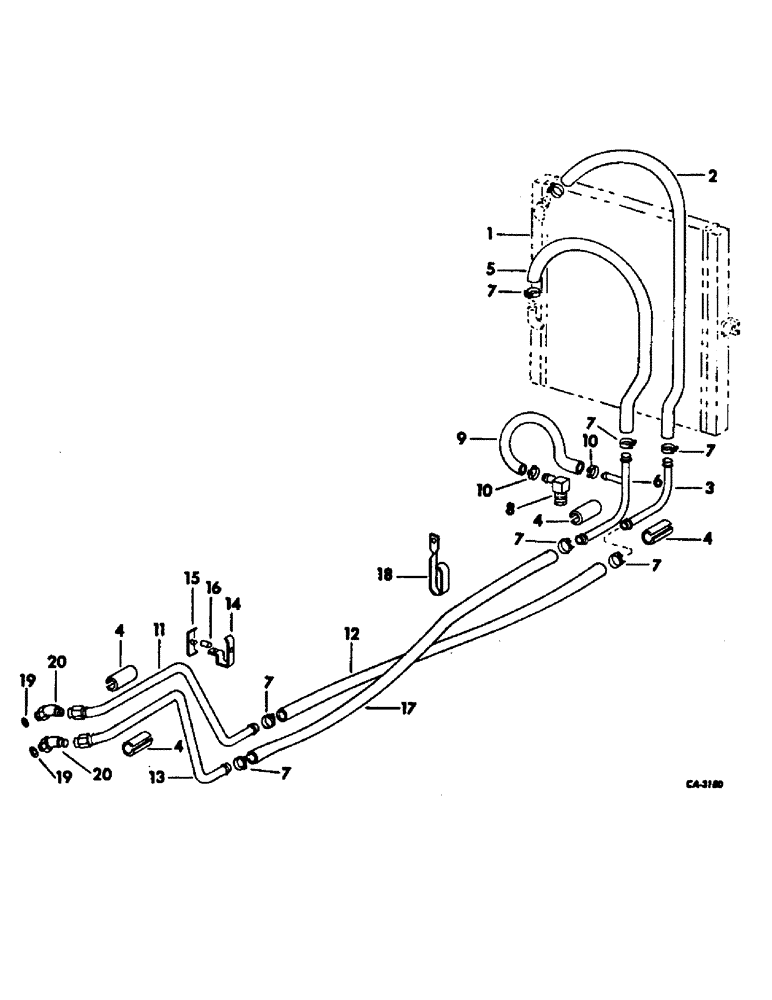

Запчасти Case IH HYDRO 86 (10-12) - HYDRAULICS, OIL COOLER, TUBES AND CONNECTIONS, 666, 70 AND 86 HYDROSTATIC DRIVE TRACTORS (07) - HYDRAULICS

1

COOLER ASSY, oil, Refer to oil cooler listing group 6

1шт.

2

HOSE, oil cooler supply, Furnish 31 in. from bulk hose 73200C1

1шт.

3

66130C1

TUBE, oil cooler supply 0.625" OD, 6.4, 3.3" Length

1шт.

4

397483R1

GROMMET

HOSE, tube bumper

4шт.

5

HOSE, oil cooler return, Furnish 26-1/2 in. from bulk hose 73200C1

1шт.

6

66131C1

TUBE ASSY, oil cooler return 0.625" OD, 6.4, 4.75" Length

1шт.

7

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, hose

8шт.

8

66132C1

ELBOW, bolster vent hose adapter

1шт.

9

66133C1

HOSE,0.38" ID x 15.50"

Bolster Vent Return 0.38" ID x 15.50"

1шт.

10

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

11

536494R1

TUBE ASSY, oil cooler supply

1шт.

12

HOSE, oil cooler supply, Furnish 35 in. from bulk hose 73200C1

1шт.

13

536495R1

TUBE ASSY, oil cooler return

1шт.

14

404803R1

BRACKET, oil cooler tubes front

1шт.

2466F

SPACER, cooler tube bracket

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

15

397489R1

SUPPORT ASSY, oil cooler tubes rear

1шт.

16

526712R1

BUSHING

SPACER, pipe

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

17

HOSE, cooler return, Furnish 35 in. from bulk hose 73200C1

1шт.

18

536498R1

BRACKET, oil cooler hoses

2шт.

19

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

multi valve elbow

2шт.

20

9411106

ELBOW

multi valve

2шт.
