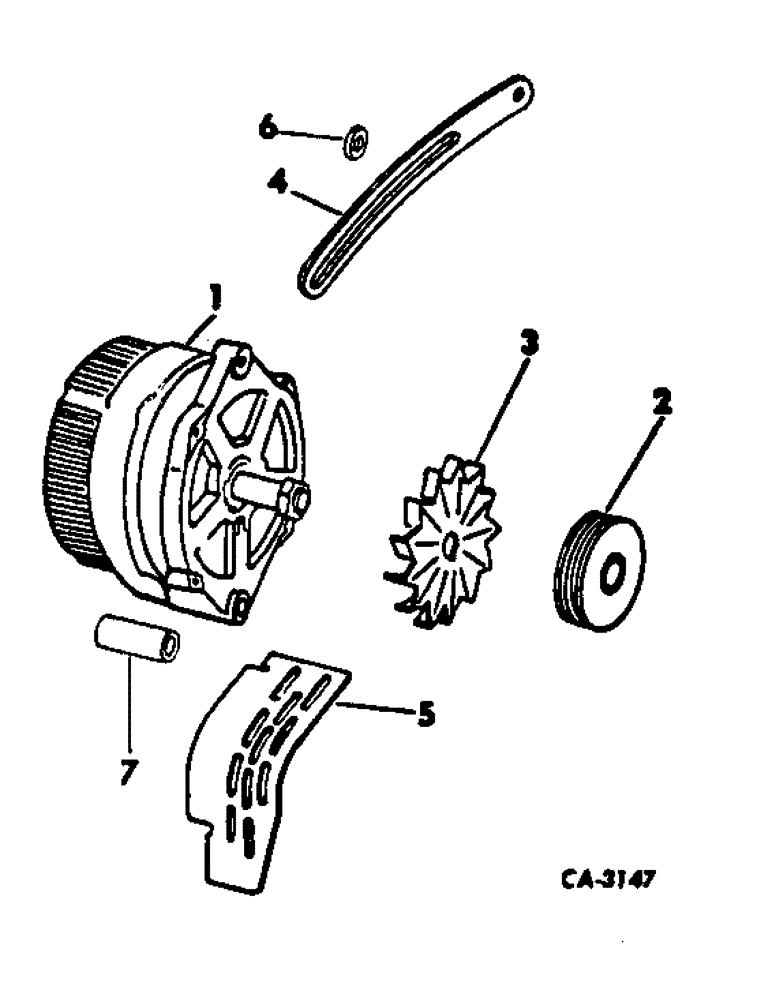

Запчасти Case IH HYDRO 86 (08-19) - ELECTRICAL, ALTERNATOR-GENERATOR AND CONNECTIONS (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1
1100578
ALTERNATOR
ALTERNATOR-GENERATOR, 37 ampere, Furnish alternator 1103171
1шт.
1
1100593
ALTERNATOR-GENERATOR, 37 ampere, Furnish alternator 1103171
1шт.
1
1100583
GENERATOR
ALTERNATOR-GENERATOR, 42 ampere, Furnish alternator 1103171
1шт.
1
1102940
GENERATOR
ALTERNATOR-GENERATOR, 42 ampere, Furnish alternator 1103171
1шт.
1
87297244
REMAN-ALTERNATOR
Reman For New PN 1102940
1шт.
1
87297245
CORE-ALTERNATOR
Return Part Number
1шт.
1
87297246
REMAN-ALTERNATOR
Reman For New PN 1102940
1шт.
1
87297247
CORE-ALTERNATOR
Return Part Number
1шт.
1
103798A1GV
ALTERNATOR
Value, 12V, 63A
1шт.
1
103798A1R
REMAN-ALTERNATOR
Remanufactured Alternator, 12 volt 63 ampere, to reman p/n 87297244. Wire Clocked to 3 O'Clock
1шт.
1
103798A1C
CORE-ALTERNATOR
Return Part Number
1шт.
1
103800A1R
REMAN-ALTERNATOR
Remanufactured Alternator, 12 volt 63 ampere, to reman p/n 87297244. Wire Clocked to 12 O'Clock
1шт.
1
103800A1C
CORE-ALTERNATOR
Return Number
1шт.
1
103799A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 63 AMP Alternator
1шт.
1
103799A1C
CORE-ALTERNATOR
Return Part Number, 12 Volt, 63 Amp Alternator
1шт.
1
A47625
ALTERNATOR
ALTERNATOR - 12 Volt 72 ampere
1шт.
1
103804A1GV
ALTERNATOR
Value, 12V, 72A
1шт.
1
103804A1R
REMAN-ALTERNATOR
Remanufactured Alternator, 12 volt 72 ampere
1шт.
1
103804A1C
CORE-ALTERNATOR
Return Part Number
1шт.
1
103802A1R
REMAN-ALTERNATOR
Reman For New PN A47625
1шт.
1
103802A1C
CORE-ALTERNATOR
Return Part Number
1шт.
225-14112
NUT,#12-24
NUT, 10-24 hex mach screw
1шт.
492-11012
LOCK WASHER,#12
Washer, Lock, #12
1шт.
NLS
NO LONGER SERVICED
SCREW, 3/8-16 x 3-1/2 hex-hd cap, diesel tractors w/D-312 engine
1шт.
180138
BOLT,Hex, 3/8" - 16 x 3", Gr 5
BOLT, 3/8 x 3 type 5, diesel tractors w/D-310 engine
1шт.
186285
BOLT,Hex, 3/8" - 16 x 4", Gr 5
BOLT, , Gasoline tractors Hex, 3/8"-16 x 4", G5
1шт.
1
1103171
GENERATOR
ALTERNATOR-GENERATOR, 42 ampere metric, Replaces 1102920
1шт.
30281R1
NUT,M6, Cl 10
NUT, M6 class 10
1шт.
933833R1
LOCK WASHER,M6
WASHER, 6 mm lock
1шт.
931714R1
BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8
BOLT, M10 x 80 pln class 8.8
1шт.
905262R1
NUT,M10 x 1.5, Cl 10
NUT, M10 phc p/t class 10
1шт.
2
384986R1
PULLEY
PULLEY, alternator-generator, gasoline tractors
1шт.
2
384645R1
PULLEY
PULLEY, alternator-generator, diesel tractors w/D-312 engine
1шт.
2
1946716
PULLEY
PULLEY, alternator-generator, dieseltractors w/D-310 engine
1шт.
3
221425R1
FAN
FAN, alternator-generator
1шт.
4
532418R1
BRACE
STRIP, alternator mtg brace, diesel tractors w/D-312 engine
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
NLS
NO LONGER SERVICED
1шт.
4
396359R2
BAR
STRIP, alternator mtg brace, diesel tractor w/D-310 engine
1шт.
9635082
NUT,5/16" - 18, Gr 5
NUT, 5/16"-18, G5
1шт.
179820
BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5
BOLT, Hex, 5/16"-18 x 1 1/4", G5
1шт.
930294R1
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
BOLT, M8 x 30 pln class 8.8
1шт.
557265R1
WASHER
WASHER, .344 x 1.000 x .105 pln or
1шт.
30183R1
WASHER,M8 x 21.5 x 2.5, HT
WASHER, 8.8 x 21 x 2.5MM phc
1шт.
5
114659C1
SHIELD
PACKAGE, alternator and fan pulley shield, gasoline tractors
1шт.
5
121525C1
PROTECTOR
PACKAGE, alternator and fan pulley shield, diesel tractors w/D-312 engine
1шт.
5
396365R2
PROTECTOR
SHIELD ASSY, alternator and fan pulley, diesel tractors w/D-310 engine
1шт.
6
280185R1
SPACER
SPACER, alternator-generator, brace, not used w/packages 71196C92 or 71197C91
1шт.
537326R1
BOLT
SCREW, 5/16-18 x 1-1/2 znd hex-hd cap
1шт.
557265R1
WASHER
WASHER, .344 x 1.0 x .105
1шт.
179820
BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5
BOLT, , Diesel tractors w/D-310 engine Hex, 5/16"-18 x 1 1/4", G5
1шт.
472146R1
LOCK NUT,5/16"-18, GB
NUT, 5/16-18 distorted thd lock, gasoline tractors and diesel tractors w/D-312 engine
1шт.
7
384993R1
SPACER
SPACER, alternator-generator mtg bracket, long, gasoline tractors
1шт.
9413953
LOCK NUT,3/8"-16, GB
NUT, 3/8-16 phc hex lock
1шт.
Выбрано товаров: 55
