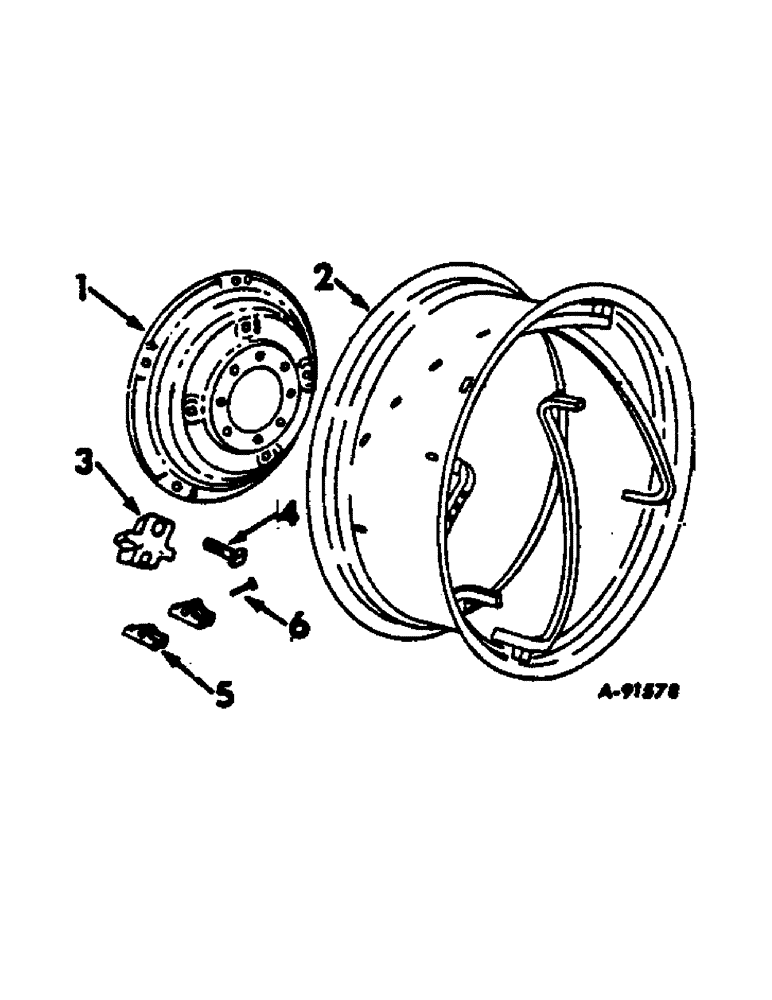

Запчасти Case IH HYDRO 84 (15-08[A]) - WHEELS AND TRACTION, POWER ADJUSTED REAR WHEELS, UTILITY TRACTORS Wheels & Traction

NSS

NOT SOLD SEPARAT

WHEEL ASSY, W12-28 power adjusted rear, utility tractors, order components

2шт.

Tractors built 1982 and later

1шт.

NSS

NOT SOLD SEPARAT

WHEEL ASSY, W14L-30 power adjusted rear, utility & all wheel drive tractors, order components

2шт.

1

1282567C1

DISC, WHEEL

DISC, 28 in. dia

2шт.

1

399002R1

DISC, WHEEL

DISC, 30 in. dia

2шт.

2

1282568C1

RIM

ASSY, 28 in. for 13.6 & 14.9-28 tire

1шт.

2

1282566C1

RIM

ASSY, 30 in. for 16.9-30 tire, replaces 399003R1

1шт.

3

399004R1

SHIN

CLAMP, rim

5шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT, 3/4 x 2.25 sq-hd

5шт.

399006R1

WHEEL NUT

3/4 hex

5шт.

399007R1

WASHER

3/4 pln

5шт.

5

365327R2

STOP

BODY, stop, used w/rim 1282568C1 or 1282566C1

2шт.

5

399008R1

BODY, stop, use w/rim 399003R1

2шт.

6

365326R1

SCREW

stop

2шт.
