Запчасти Case IH HYDRO 84 (15-02) - WHEELS AND TRACTION, REAR WHEELS, 8 BOLT TO RIM MOUNTING Wheels & Traction

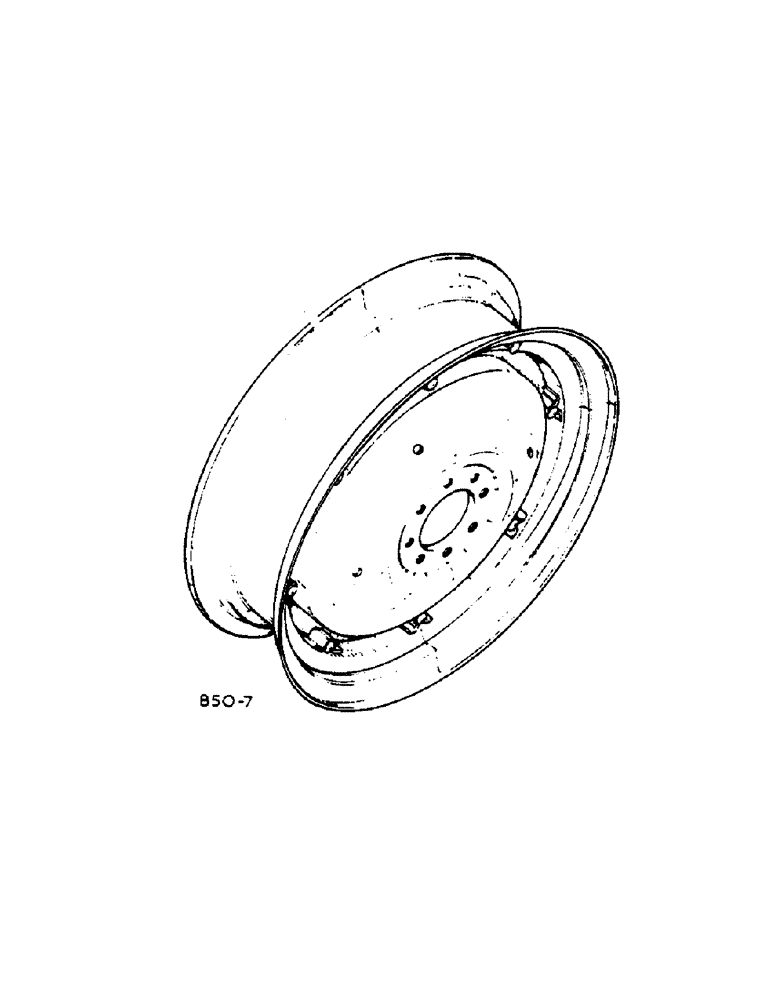

Схема запчастей Case IH HYDRO 84 - (15-02) - WHEELS AND TRACTION, REAR WHEELS, 8 BOLT TO RIM MOUNTING Wheels & Traction
1

Артикул

Название

Примечание

Количество

1

527253R91

WHEEL

ASSY, Dw14-30 rear, for W14-30/16.9, 15-30/18-30 tire

2шт.

406944R1

RIM

w/lug DW 14-30 rear wheel

2шт.

406942R1

DISC

rear wheel

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel disc

16шт.

406952R1

WASHER

rear wheel disc bolt

16шт.

406953R1

NUT

rear wheel disc bolt

16шт.

1

527251R91

WHEEL

ASSY, W13-28 rear, for 14.9-28 tire

1шт.

406941R1

RIM

w/lug W13-28 rear wheel

2шт.

406942R1

DISC

rear wheel

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel disc

16шт.

406952R1

WASHER

rear wheel rim mtg. bolt

16шт.

406953R1

NUT

rear wheel rim mtg.

16шт.

1

NSS

NOT SOLD SEPARAT

WHEEL ASSY, W11-38 row crop

2шт.

3069092R1

DISC

rear

2шт.

389539R1

CLAMP

rear wheel hub

4шт.

3073513R91

RIM

ASSY, rear wheel

2шт.

14-1480

BOLT,Hex, 7/8" - 14 x 5", Gr 5

7/8nf x 4-3/4 pln type 5

8шт.

3073516R1

BOLT

rim clamp

16шт.

363018R1

NUT

rim clamp

16шт.

Выбрано товаров: 19
