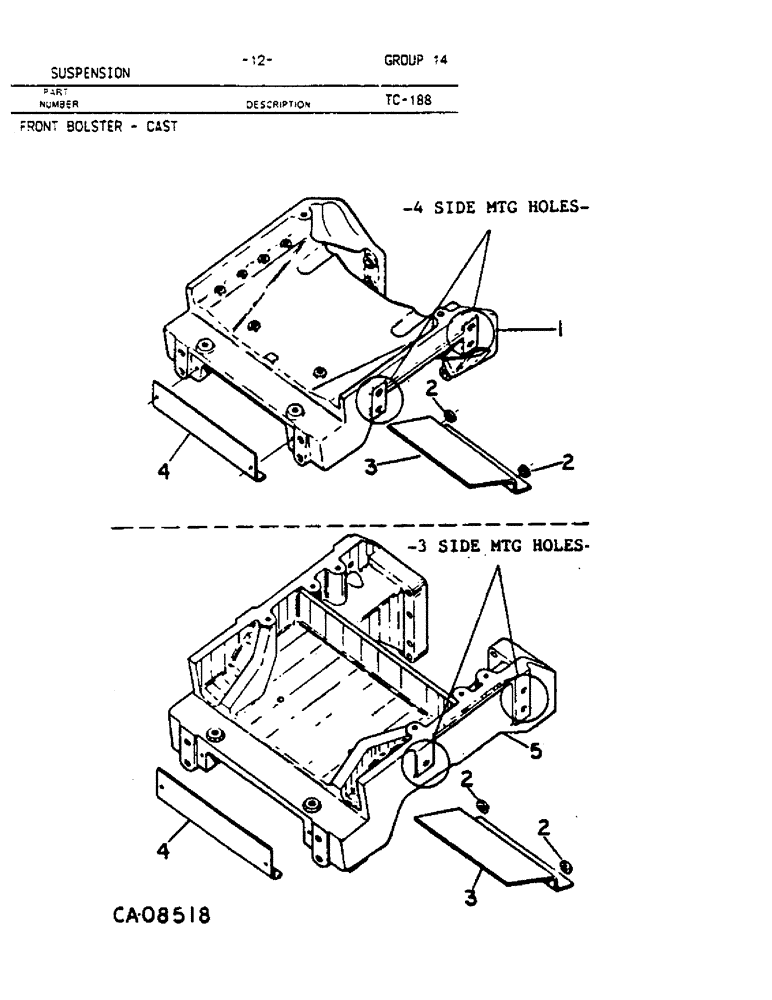

Запчасти Case IH HYDRO 84 (14-12) - SUSPENSION, FRONT BOLSTER, CAST Suspension

1

3121169R4

BOLSTER

front, 4 side mtg holes, used on all wheel drive, row crop & tractors w/low profile

4шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5/8 x 2-1/2 pln type 5

6шт.

24970R1

BOLT

5/8 x 2-1/2 pln type 5

6шт.

2

534813R1

SPACER

air baffle

2шт.

3

534812R1

BAFFLE

air, bolster w/3 side mtg holes

1шт.

3

1500014C1

BAFFLE

air, bolster w/4 side mtg holes

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 pln type 5

2шт.

369936R1

WASHER

air baffle

1шт.

4

3121168R3

COVER

bolster front

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znp p/hds mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

3121167R3

BOLSTER

front, 3 side mtg holes

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5/8 x 2-1/2 pln type 5 OR

6шт.

24970R1

BOLT

5/8 x 2-1/2 pln type 5

6шт.
