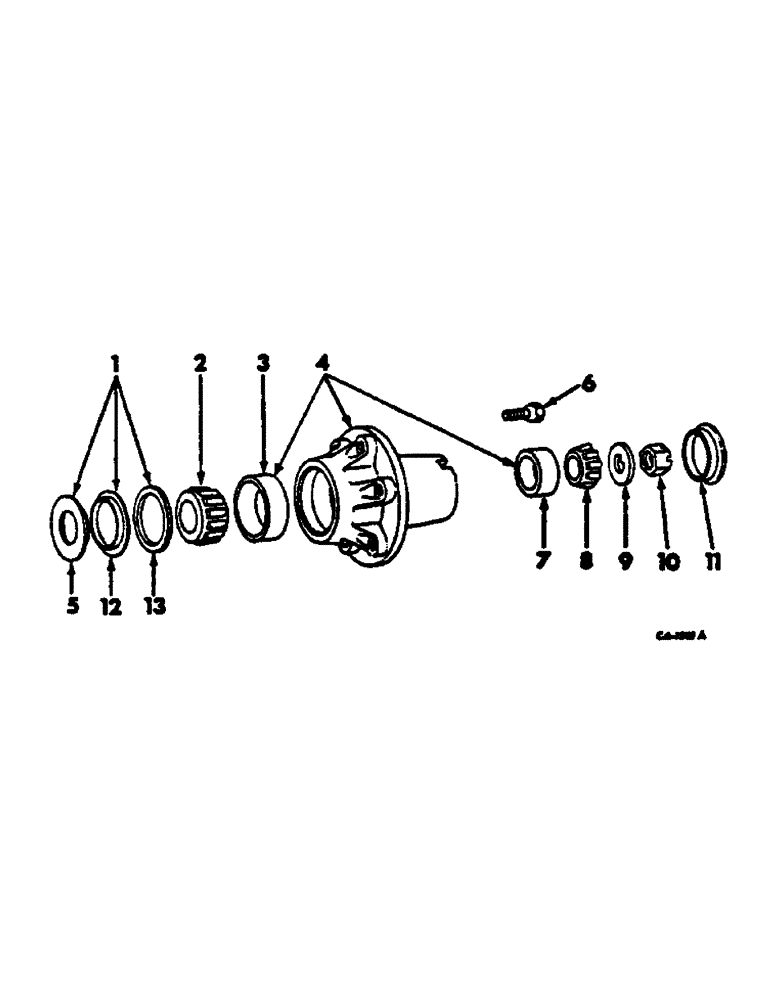

Запчасти Case IH HYDRO 84 (14-11) - SUSPENSION, FRONT WHEEL HUB, BEARINGS AND CAP, HEAVY DUTY CAST FRONT AXLE Suspension

1

378402R11

RETAINER

ASSY, hub felt

2шт.

2

ST2005A

ROLLER BEARING,44.45mm ID x 30.94mm W

CONE, front wheel inner bearing

2шт.

3

ST954

BEARING, CUP,1.7505" ID x 3.4385" OD x 1.2015"

CUP, front wheel inner bearing

2шт.

4

378401R21

HUB

ASSY, front wheel

2шт.

5

NSS

NOT SOLD SEPARAT

RETAINER, oil seal, furnish retainer assy, 378402R11

1шт.

6

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT, front wheel mtg

12шт.

7

20646DA

TAPERED BEARING,1.125" ID x 2.484" OD x 0.937"

CUP, front wheel outer bearing

2шт.

8

ST2034

TAPERED BEARING,1.125" ID x 2.484" OD x 0.9375"

CONE, front wheel outer bearing

2шт.

9

97788HA

WASHER,1.033" ID x 2.125" OD x 2.03"

brg adjustable nut

2шт.

10

25-1316

NUT,1"-14, G5

NUT, SLOTTED, , Bearing Adj. 1"-14, G5

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

11

378814R1

CAP

front wheel hub

2шт.

12

97739HX

RING

RETAINER, oil seal

2шт.

13

NSS

NOT SOLD SEPARAT

FELT, oil seal, furnish retainer assy, 378402R11

2шт.

65990C91

PACKAGE

front wheel bearing overhaul, consist of

1шт.

ST2005A

ROLLER BEARING,44.45mm ID x 30.94mm W

CONE

1шт.

ST954

BEARING, CUP,1.7505" ID x 3.4385" OD x 1.2015"

CUP

1шт.

ST2034

TAPERED BEARING,1.125" ID x 2.484" OD x 0.9375"

CONE

1шт.

20646DA

TAPERED BEARING,1.125" ID x 2.484" OD x 0.937"

CUP

1шт.

97788HA

WASHER,1.033" ID x 2.125" OD x 2.03"

1шт.

378402R11

RETAINER

ASSY

1шт.
