Запчасти Case IH HYDRO 84 (14-01) - SUSPENSION, ADJ. FRONT AXLE, STRAIGHT, HEAVY DUTY, 52-77" THREAD, STANDARD PROFILE UTILITY TRACTORS Suspension

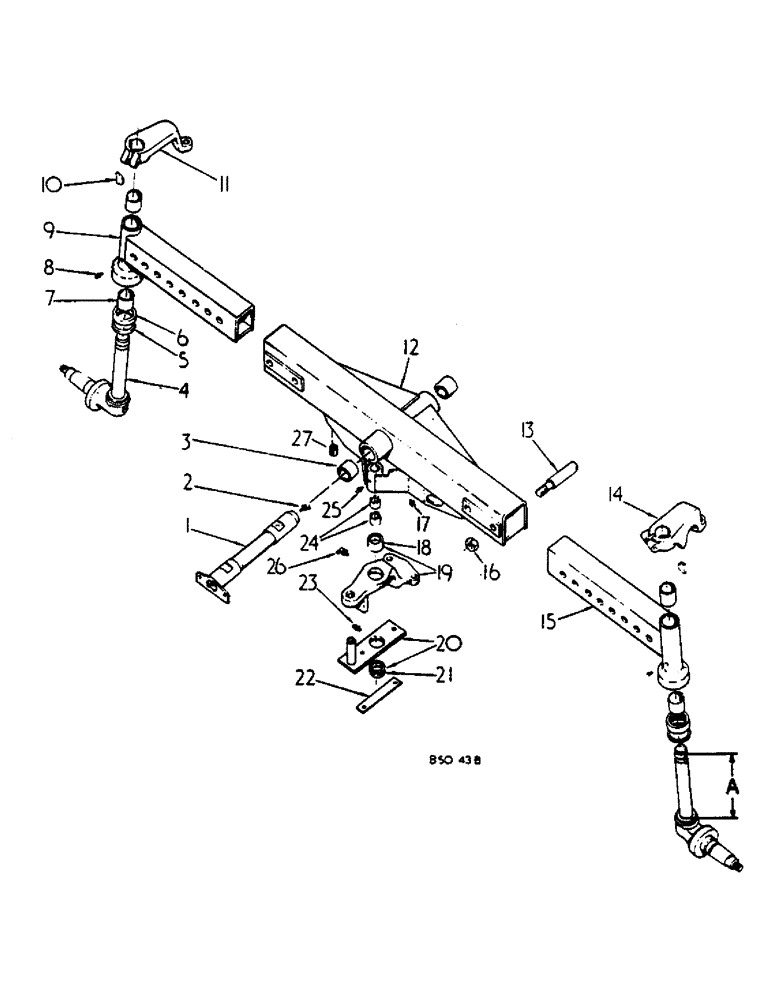

Схема запчастей Case IH HYDRO 84 - (14-01) - SUSPENSION, ADJ. FRONT AXLE, STRAIGHT, HEAVY DUTY, 52-77" THREAD, STANDARD PROFILE UTILITY TRACTORS Suspension
13
19
23
22
24
5
2
11
10
27
16
25
8
9
26
18
6
15
7
1
14
4
12
21
3
20
17

Артикул

Название

Примечание

Количество

1

3121254R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

hardened

2шт.

2

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 ptf short 90D lub

1шт.

3

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

4

3121261R91

KNUCKLE,RH

ASSY, steering, high spindle, a dimension is 11.22 in.

2шт.

4

3121270R91

KNUCKLE

ASSY, steering, low spindle, a dimension is 8.32 in.

2шт.

5

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

6

405831R91

BEARING

steering knuckle thrust

2шт.

7

376099R1

BUSHING

4шт.

8

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 hole 45D lub

2шт.

9

3121257R91

EXTENSION ASSY.

EXTENSION ASSY, front axle RH, high spindle

1шт.

9

3121268R91

EXTENSION ASSY.

EXTENSION ASSY, front axle RH, low spindle

1шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

3121264R1

ARM

steering knuckle, RH

1шт.

454993

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

1/2 x 3-1/2 pln type 8

1шт.

25526R1

NUT,1/2"-13, G8

1/2 phc type 8

1шт.

12

3121242R92

CENTER AXLE

AXLE ASSY, center, straight, on orders for 3121242R91 furnish 3121242R92 plus clevis 3125306R1, pin 3125305R1 and bushing, 3125304R1

1шт.

13

3121252R1

BOLT,3/4" - 16 x 1 27/32"

axle extension shoulder

4шт.

14

3121263R1

ARM

steering knuckle, LH

1шт.

454993

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

1/2 x 3-1/2 pln type 8

1шт.

25526R1

NUT,1/2"-13, G8

1/2 phc type 8

1шт.

15

3121256R91

EXTENSION ASSY.

EXTENSION ASSY, front axle, LH, high spindle

1шт.

15

3121267R91

EXTENSION ASSY.

EXTENSION ASSY, front axle, LH, low spindle

1шт.

16

3121253R1

SPECIAL NUT

front axle

4шт.

17

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 hole less ball check lub, brg, tube and pivot spacer

1шт.

18

379748R1

BUSHING

power steering center arm

1шт.

19

67499C91

ARM ASSY.

ARM ASSY, power steering complete with bushing

1шт.

20

405580R11

BAR ASSY.

BAR ASSY, power steering cylinder complete with bushing

1шт.

21

379748R1

BUSHING

1шт.

22

67976C1

PLATE, LOCKING

STRIP, steering center arm bolt lock

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

23

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive str lub

1шт.

24

405574R1

BUSHING

cylinder mounting bracket

2шт.

25

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 hole less ball check lub

1шт.

26

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 hole 65D lub

1шт.

27

3125304R1

BUSHING

spring steel

1шт.

Выбрано товаров: 37
