Запчасти Case IH HYDRO 84 (12-42) - POWER, FUEL INJECTION PUMP, BOSCH INJECTION PUMP, HYDRO 84 TRACTORS Power

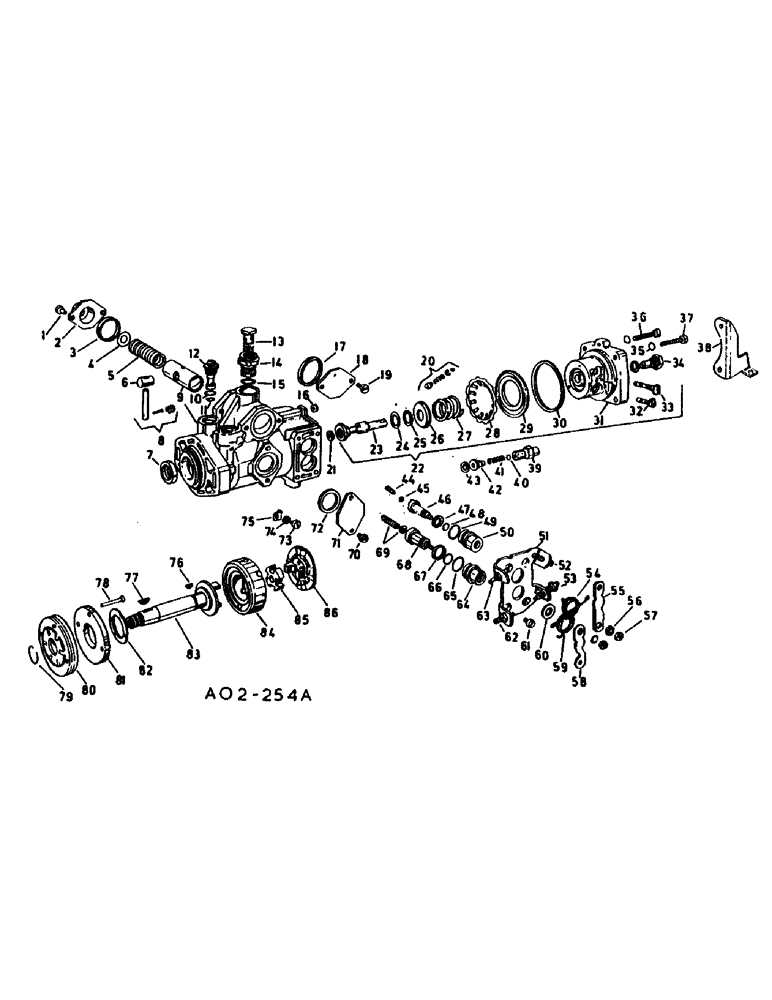

Схема запчастей Case IH HYDRO 84 - (12-42) - POWER, FUEL INJECTION PUMP, BOSCH INJECTION PUMP, HYDRO 84 TRACTORS Power
49
39
7
22
2
54
26
8
76
71
68
20
82
18
80
4
10
25
14
27
48
15
50
60
40
44
81
41
51
86
1
45
29
62
32
34
73
66
57
70
74
63
35
5
23
17
28
56
30
19
64
9
59
6
79
37
38
85
31
84
47
21
52
69
77
65
42
83
36
3
78
33
75
43
55
16
13
46
58
67
12
61
24
72
53

Артикул

Название

Примечание

Количество

3218488R91

PUMP

fuel injection, VA4110H 1200 cr 85-1

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

3555574R1

WASHER, .355 x .748 x .098

2шт.

3050129R1

LOCK WASHER

WASHER, lock

2шт.

1

439189C1

SCREW

pan hd

2шт.

2

3078489R1

COVER

advance hsg

1шт.

3

3078488R1

RING

packing

1шт.

4

3078528R1

THRUST WASHER

thrust, 0.6mm

1шт.

4

3078529R1

THRUST WASHER

thrust, 0.8mm

1шт.

4

3078530R1

THRUST WASHER

thrust, 1.0mm

1шт.

4

3078531R1

THRUST WASHER

thrust, 1.2mm

1шт.

4

3078532R1

THRUST WASHER

thrust, 1.4mm

1шт.

4

3078533R1

THRUST WASHER

thrust, 3.0mm

1шт.

5

3079106R1

VALVE SPRING

SPRING, advance piston

1шт.

6

3078482R1

SLIDE

advance piston

1шт.

7

3078355R1

SEAL

drive shaft

1шт.

8

3078481R1

PIN

connecting auto advance

1шт.

9

3078572R91

HOUSING

O-RING, regulator valve

1шт.

11

3078535R1

O-RING

regulator valve

1шт.

12

3078534R91

VALVE

regulator

1шт.

3078942R1

PLATE

CLOSING

1шт.

13

3059086R1

BANJO BOLT

SCREW, inlet union pump hsg

1шт.

14

3078484R1

VALVE

overflow

1шт.

15

3078483R1

O-RING,2.5mm Thk x 15mm ID

union adaptor adv hsg

1шт.

16

3078487R1

O-RING

packing

1шт.

17

3078488R1

RING

packing plate adv hsg

1шт.

18

3078486R1

COVER

PLATE, advance hsg

1шт.

19

931585R1

BOLT,M6 x 15mm, Cl 10.9

hex hd

2шт.

20

Not used this application

1шт.

21

3078767R2

WASHER

1.92mm

1шт.

21

3078769R2

WASHER

1.96mm

1шт.

21

3078771R2

WASHER

2.00mm

1шт.

21

3078773R2

WASHER

2.04mm

1шт.

21

3078775R2

WASHER

2.08mm

1шт.

21

3078777R2

WASHER

2.12mm

1шт.

21

3078779R2

WASHER

2.16mm

1шт.

21

3078781R2

WASHER

2.20mm

1шт.

21

3078783R2

WASHER

2.24mm

1шт.

21

3078785R2

WASHER

2.28mm

1шт.

21

3078787R2

WASHER

2.32mm

1шт.

21

3078789R2

WASHER

2.36mm

1шт.

21

3078791R2

WASHER

2.40mm

1шт.

21

3078793R2

WASHER

2.44mm

1шт.

21

3078795R2

WASHER

2.48MM

1шт.

21

3078797R2

WASHER

2.52mm

1шт.

21

3078799R2

WASHER

2.56mm

1шт.

21

3078801R2

WASHER

2.60MM

1шт.

21

3078803R2

WASHER

2.64mm

1шт.

21

3078805R2

WASHER

2.68mm

1шт.

21

3078807R2

WASHER

2.72mm

1шт.

21

3078809R2

WASHER

2.76mm

1шт.

21

3078811R2

WASHER

2.80mm

1шт.

21

3078813R2

WASHER

2.84mm

1шт.

21

3078815R2

WASHER

2.88mm

1шт.

22

3078912R91

HEAD

distributor assy w/plunger throttle and control plunger

1шт.

23

NSS

NOT SOLD SEPARAT

order head assy, 3078912R91

1шт.

24

3078540R1

WASHER

plunger 1.35mm

1шт.

24

3078541R1

WASHER

plunger 1.60mm

1шт.

24

3078542R1

WASHER

plunger 1.85mm

1шт.

25

3078537R1

WASHER

plunger 1.65mm

1шт.

25

3078571R1

WASHER

plunger 2.35mm

1шт.

26

3078516R1

SEAT

spring plunger

1шт.

27

3078516R1

SEAT

SPRING, plunger

1шт.

28

3078576R1

SPRING WASHER

spring

1шт.

29

3078578R1

FILTER, FUEL

FILTER

1шт.

30

3078366R1

O-RING

distributor end

1шт.

31

NSS

NOT SOLD SEPARAT

order head assy, 3078912R91

1шт.

32

NSS

NOT SOLD SEPARAT

order head assy, 3078912R91

1шт.

33

NSS

NOT SOLD SEPARAT

order head assy, 3078912R91

1шт.

34

3078914R1

PLUG

distributor head

1шт.

3078915R1

RING

packing distributor head plug

1шт.

35

Not used this application

1шт.

36

3078600R1

SCREW

pump to distributor head

2шт.

37

3078600R1

SCREW

pump to distributor head

2шт.

38

3078549R1

SUPPORT

BRACKET, injection pump

1шт.

39

3059067R2

HYD CONNECTOR

HOLDER, delivery valve

4шт.

3079097R2

CAP

protective

4шт.

40

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

delivery valve

4шт.

41

3132382R1

SPRING

delivery valve

4шт.

42

3079142R1

VALVE

delivery

4шт.

43

3079378R1

WASHER

delivery valve, replaces 3078362R1

4шт.

44

3078555R1

SPRING

throttle

1шт.

45

Not used this application

1шт.

46

3078517R1

SHAFT

throttle

1шт.

47

3078519R1

WASHER

throttle shaft

1шт.

48

3078354R1

O-RING,2mm Thk x 6.5mm ID

throttle shaft

1шт.

49

785602R1

O-RING

control plunger and throttle shaft bushing

1шт.

50

3078556R1

BUSHING

throttle shaft

1шт.

51

3078557R1

PLATE

stop

1шт.

52

3132885R1

BOLT

stop

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

hex stop screw M6, Cl 8

1шт.

53

3132251R1

STOP LOCK

SCREW, stop

1шт.

3079141R1

NUT

hex stop screw

1шт.

54

3132588R1

SPRING

torsion throttle shaft

1шт.

55

3132590R1

LEVER

throttle OR

1шт.

55

3132591R1

LEVER

throttle

1шт.

56

933987R1

LOCK WASHER,M6

WASHER, lock throttle and control, plunger lever

2шт.

57

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

hex throttle and control, plunger lever M6, Cl 8

2шт.

58

3059077R1

LEVER

control plunger OR

1шт.

58

3059078R1

LEVER

control plunger

1шт.

59

3132589R1

SPRING

torsion control plunger shaft

1шт.

60

3059076R1

WASHER

control plunger shaft

1шт.

61

931320R1

SCREW,M6 x 12mm, Cl 8.8

countersunk stop plate

4шт.

62

3059074R1

SCREW

stop

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

hex stop screw M6, Cl 8

1шт.

63

3136136R1

SCREW

stop

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

hex stop screw M6, Cl 8

1шт.

64

3078524R1

BUSHING

control plunger shaft

1шт.

65

785602R1

O-RING

control plunger and throttle shaft bushing

1шт.

66

3078363R1

O-RING

control plunger shaft

1шт.

67

3078523R1

WASHER

control plunger shaft

1шт.

68

3078521R1

SHAFT

control plunger

1шт.

69

3079143R91

PACKAGE

service control plunger spring

1шт.

70

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

pan hd mach timing window cover

2шт.

71

3078486R1

COVER

timing window

1шт.

72

3078485R1

RING

packing timing window cover

1шт.

73

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

pan hd slotted timing pointer

1шт.

74

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER, lock timing pointer

1шт.

75

3132589R1

SPRING

INDICATOR, timing

1шт.

76

3132395R1

KEY

woodruff drive shaft rear

1шт.

77

3079101R1

WOODRUFF KEY

KEY, woodruff drive shaft

1шт.

78

3078477R1

BOLT,CSK

support ring

2шт.

79

3078474R1

RING

retaining

1шт.

80

3078475R91

PUMP

charge

1шт.

81

3078476R1

RING

support charge pump

1шт.

82

3078479R1

THRUST WASHER

thrust roller retainer

1шт.

83

3078473R1

SHAFT

drive

1шт.

84

3078473R1

SHAFT

RETAINER, roller assy

1шт.

85

3059007R1

DISC

cross type cam face

1шт.

86

3078480R1

CAM

face

1шт.

3078526R91

GASKET KIT

SET, gasket injection pump, consist of

1шт.

3078485R1

RING

packing

1шт.

3078488R1

RING

packing

2шт.

3078358R1

O-RING

1шт.

3078535R1

O-RING

1шт.

3078366R1

O-RING

1шт.

3078354R1

O-RING,2mm Thk x 6.5mm ID

1шт.

785602R1

O-RING

2шт.

3078363R1

O-RING

1шт.

933981R1

NUT,M12 x 1.75, Cl 5

For end of shaft M12 x 1.75, Cl 5

1шт.

933834R1

LOCK WASHER,M12

WASHER for end of shaft

1шт.

1329163C1

PUMP, FUEL INJECTION

PUMP fuel injection, V.E.

1шт.

Выбрано товаров: 142
