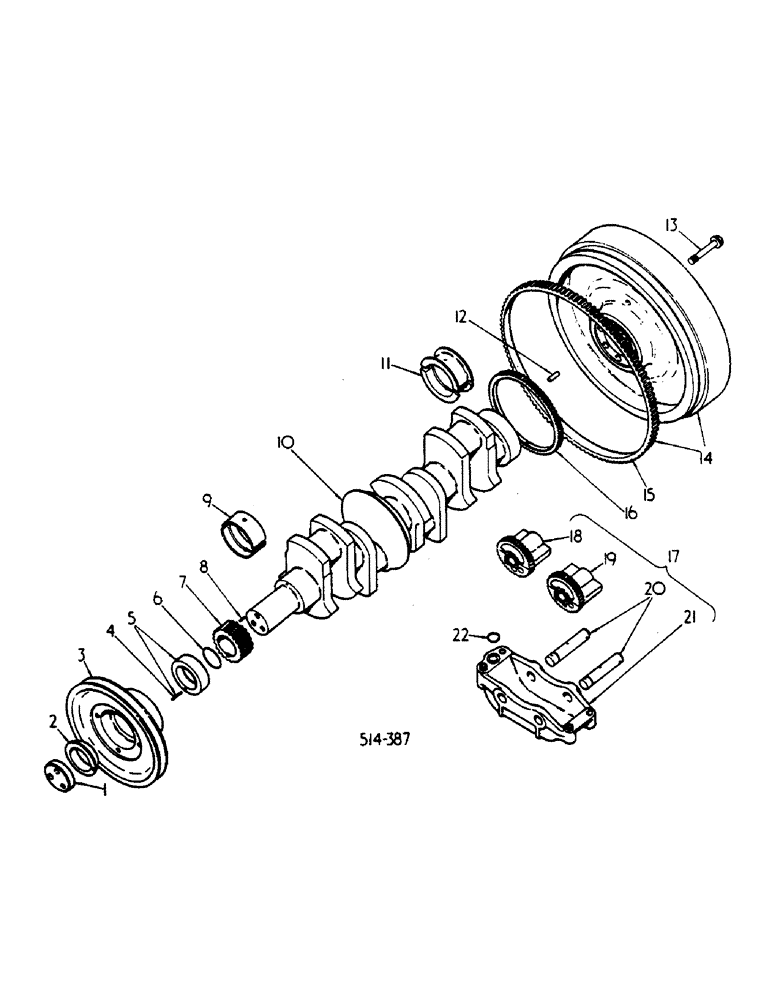

Запчасти Case IH HYDRO 84 (12-31) - POWER, CRANKSHAFT, FLYWHEEL AND BEARINGS Power

1

3055154R1

WASHER

pressure

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3138874R1

BEARING WASHER

RING, clamping

1шт.

3

3138838R2

PULLEY

crankshaft

1шт.

4

932681R1

DOWEL,4mm OD x 24mm L

Pin, groove M4 x 24, Oval

1шт.

5

NSS

NOT SOLD SEPARAT

RING ASSY, distance w/pin, order package 3228133R93

1шт.

6

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

7

3055028R1

PINION

GEAR, crankshaft pinion

1шт.

8

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

9

3055130R21

CRANKSHAFT BEARING

BEARING ASSY, main, std

4шт.

9

3056832R21

BEARING ASSY

BEARING, main 0.25mm U/S, 684, Start Serial: 666989

4шт.

9

3056832R21

BEARING ASSY

BEARING, main 0.25mm U/S, Hydro 84, Start Serial: D119911

4шт.

10

3144626R92

CRANKSHAFT BEARING

W/BEARING, std, consists of (1) crankshaft (NSS)

1шт.

3055028R1

PINION

GEAR

1шт.

3136237R1

PINION

GEAR

1шт.

141242

DOWEL

PIN

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

3055129R21

CRANKSHAFT BEARING

BEARING

1шт.

3055130R21

CRANKSHAFT BEARING

BEARING

4шт.

3055351R91

BEARING ASSY

BEARING, connecting rod

4шт.

10

3218861R91

CRANKSHAFT

W/BEARINGS 0.25mm U/S, consist of: 1 crankshaft, NSS, 684, Start Serial: 666989

1шт.

10

3218861R91

CRANKSHAFT

W/BEARINGS 0.25mm U/S, consist of: 1 crankshaft, NSS, Hydro 84, Start Serial: D119911

1шт.

3055028R1

PINION

GEAR

1шт.

3136237R1

PINION

GEAR

1шт.

NLS

NO LONGER SERVICED

PIN

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

3056820R11

BEARING ASSY

BEARING, main 0.025mm U/S

1шт.

3056832R21

BEARING ASSY

BEARING, main 0.025mm U/S

4шт.

3056834R11

BEARING ASSY

BEARING, connecting rod 0.25mm U/S

4шт.

11

3055129R21

CRANKSHAFT BEARING

BEARING ASSY, main std

1шт.

11

3056820R11

BEARING ASSY

BEARING, main 0.25mm U/S, 684, Start Serial: 666989

1шт.

11

3056820R11

BEARING ASSY

BEARING, main 0.25mm U/S, Hydro 84, Start Serial: D119911

1шт.

12

141242

DOWEL

PIN, dowel

1шт.

13

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Flywheel, Use w/flywheel 3136044R41

7шт.

13

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

Flywheel, Use w/flywheel 1808412C91

7шт.

14

3136044R41

FLYWHEEL WITH GEAR

FLYWHEEL ASSY, tractors w/11 inch clutch, Serial Range: -10338

1шт.

14

1808412C91

FLYWHEEL

ASSY, tractors w/12 inch clutch, Start Serial: 10339

1шт.

15

60883H

RING GEAR

GEAR

1шт.

16

3136237R1

PINION

GEAR, balance drive

1шт.

17

3132874R94

HOUSING

BALANCER ASSY, complete, consists of items 18 thru 22

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

7/16 x 2-1/4 pln type 5

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

1шт.

3218543R1

LOCK WASHER

7/16 lock

3шт.

18

NSS

NOT SOLD SEPARAT

WEIGHT ASSY, idler, order set 3228374R94

1шт.

19

NSS

NOT SOLD SEPARAT

WEIGHT ASSY, drive, order set 3228374R94

1шт.

20

3132878R11

PIN,23mm OD x 93mm L

SHAFT ASSY, weight

2шт.

21

NSS

NOT SOLD SEPARAT

HOUSING ASSY, order assy 3132874R94

1шт.

932229R1

SPLIT PIN/SAFETY PIN

PIN, roll

2шт.

932299R1

LOCK PIN,M2.5 x 20, Slotted

M2.5 x 20, Roll

2шт.

3055174R1

BUSHING

dowel

2шт.

22

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

7/8 x 1-1/16 class 6

1шт.

3228133R93

SEAL KIT

PACKAGE, crankshaft oil seal, consists of 1 retainer, distance, 1 seal, radial lip

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

RING, sealing

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

932224R1

DOWEL,M4 x 32, Oval

PIN, 4M6 x 32

1шт.

932652R1

DOWEL,4mm OD x 28mm L

PIN, 4M6 x 28 INSTRUCTIONS, NSS

1шт.

3228374R91

BALANCER

SET, matched balancer weight assy, consists of items 18 & 19

1шт.
