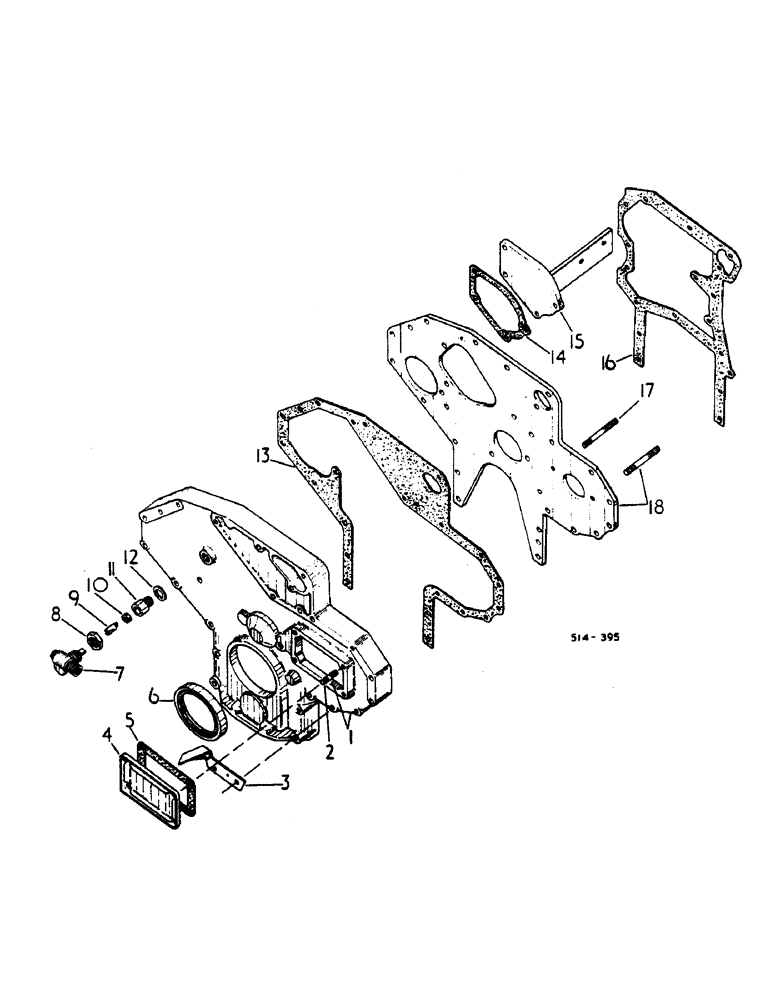

Запчасти Case IH HYDRO 84 (12-28) - POWER, CRANKCASE FRONT COVER Power

1

3136057R14

COVER ASSY

front complete with studs

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

9шт.

179827

FRONT AXLE

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

7шт.

3050129R1

LOCK WASHER

WASHER, lock

5шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

3055242R1

STUD

crankcase front cover

4шт.

3

3136040R21

ADJUSTER

INDICATOR, timing assy

1шт.

4

3055140R1

COVER

injection pump

1шт.

131402H

WASHER

.344 x .562 x .054 pln

4шт.

3050129R1

LOCK WASHER

WASHER, lock

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

5

3138640R1

GASKET

injection pump cover

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, order package 3228133R93

1шт.

7

3055982R93

DRIVE, ANGLE

1шт.

8

3132116R1

NUT

hex

1шт.

9

3056986R1

SUPPORT

COUPLING, drive angle

1шт.

10

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

RING, seal

1шт.

11

3055983R1

REDUCER FITTING

SPACER

1шт.

12

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Packing M18 x 24 x 1.5

1шт.

13

3055994R1

GASKET

crankcase front cover

1шт.

14

3132541R1

GASKET

closing cover

1шт.

15

3136061R92

COVER ASSY

684, Serial Range: -667628

1шт.

15

3136061R92

COVER ASSY

hydro 84, Serial Range: -120520

1шт.

15

3228003R1

COVER ASSY

684, Bosch injection, Start Serial: 667629

1шт.

15

3228003R1

COVER ASSY

hydro 84, Bosch injection, Start Serial: 120521

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

16

3055239R1

GASKET

crankcase front cover plate

1шт.

17

3055065R1

STUD

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

18

3055996R11

PLATE ASSY.

PLATE ASSY, crankcase front complete with studs, Bosch injection

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

7шт.

3050129R1

LOCK WASHER

WASHER, lock

7шт.

20990R1

PLUG

3/8 hex hd pipe

1шт.

3228133R93

SEAL KIT

PACKAGE, crankcase oil seal service, consist of 1 retainer, distance, 1 seal, radial lip, NSS

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

RING, sealing

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

932224R1

DOWEL,M4 x 32, Oval

PIN, 4M6X32

1шт.

932652R1

DOWEL,4mm OD x 28mm L

PIN, 4M6X28 INSTRUCTIONS (NSS)

1шт.
