Запчасти Case IH HYDRO 84 (12-22[A]) - POWER, COOLANT MANIFOLD Power

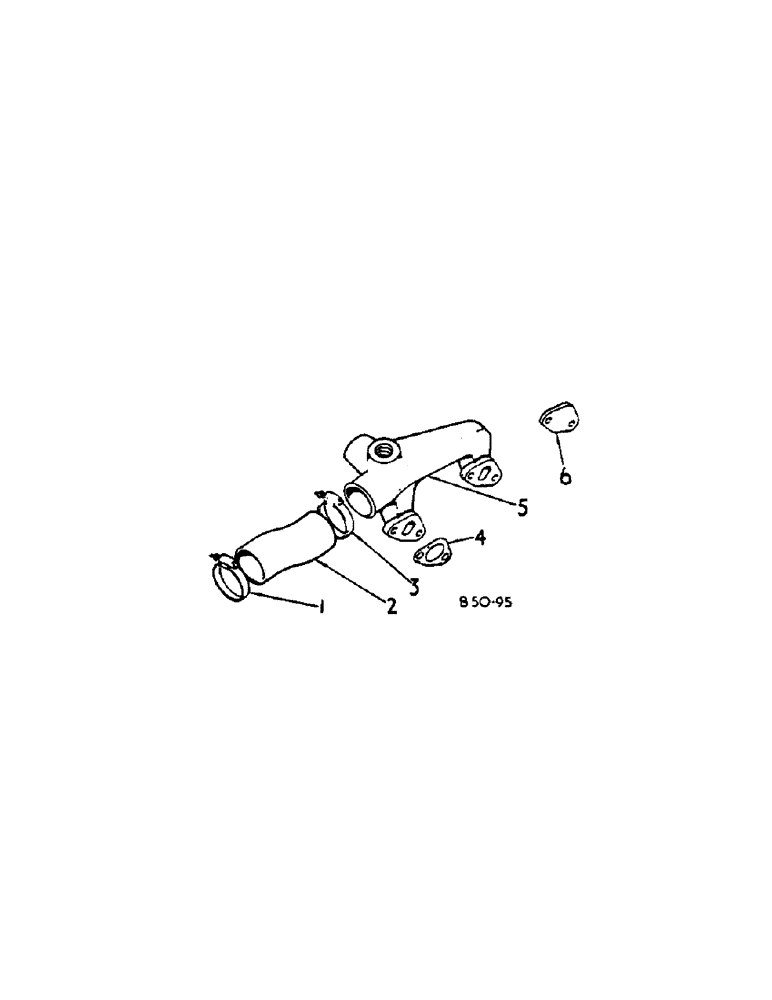

Схема запчастей Case IH HYDRO 84 - (12-22[A]) - POWER, COOLANT MANIFOLD Power
3
4
2
1
6
5

Артикул

Название

Примечание

Количество

1

3218259R1

CLAMP,M40-60, Worm

hose, replaces 3144921R1 or 755023R91

1шт.

2

3144028R1

HOSE,50.70 mm ID x 112.00 mm, SAE J20B Or SAE 20

- Connecting 50.70 mm ID x 112.00 mm, SAE J20B Or SAE 20

1шт.

3

3218259R1

CLAMP,M40-60, Worm

hose, replaces 3144921R1 or 755023R91

1шт.

4

3055306R1

GASKET

manifold

4шт.

5

3218034R1

MANIFOLD

water collecting

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3136506R1

RING

packing 8 x 14 x 1.5mm

1шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat round

3шт.

444667

PLUG

1/2-14 znp sq/skt auto pipe

2шт.

6

3132721R1

COVER

closing

2шт.

Выбрано товаров: 11
