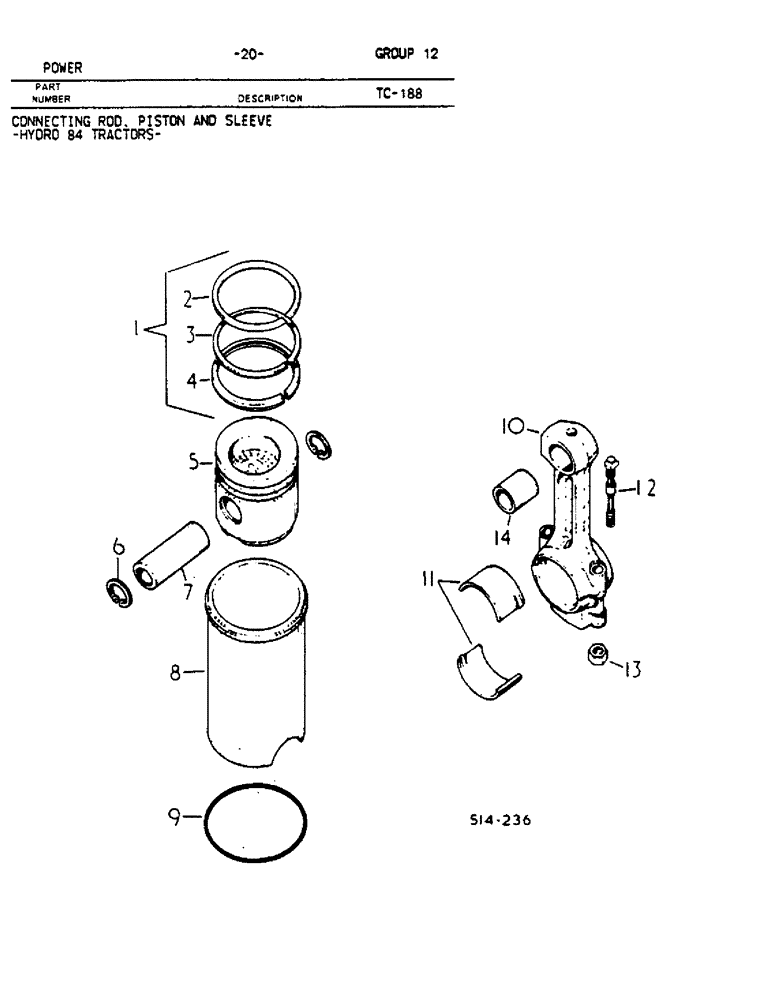

Запчасти Case IH HYDRO 84 (12-20) - POWER, CONNECTING ROD, PISTON AND SLEEVE, HYDRO 84 TRACTORS Power

1

3218669R91

PISTON RING SET

RING, set piston, used w/3 ring pistons

4шт.

2

NSS

NOT SOLD SEPARAT

RING, compression, first, used w/3 ring pistons, order set 3218669R91

4шт.

3

NSS

NOT SOLD SEPARAT

RING, compression, second, used w/3 ring pistons, order set 3218669R91

4шт.

4

NSS

NOT SOLD SEPARAT

RING, compression, third, used w/3 ring pistons, order set 3218669r91

4шт.

5

3218668R94

SLEEVE ASSY

PISTON ASSY W/SLEEVE, 3 piston ring

4шт.

6

933327R1

SNAP RING,M36, Int

RING, piston pin retainer

8шт.

7

3055217R2

PISTON PIN

PIN, piston

4шт.

8

3144682R3

SLEEVE CYLINDER

SLEEVE, cylinder

4шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

cylinder sleeve packing, Replaces 3218603R1, Start Serial: D123041

4шт.

Engine serial no. D123041 and above.

1шт.

9

3228344R1

SEALING RING,5mm Thk x 110mm ID

RING, cylinder sleeve packing, Serial Range: -D123041

4шт.

Engine serial no. D123041 and above.

1шт.

10

3055030R24

ROD, CONNECTING

ROD ASSY, connecting w/two bolts and bushing

4шт.

11

3055351R91

BEARING ASSY

BEARING ASSY, connecting rod, std

4шт.

11

3056834R11

BEARING ASSY

BEARING, connecting rod 0.25mm U/S, Start Serial: D119911

1шт.

Engine serial no. D119911 and above.

1шт.

12

3055033R11

BOLT

Connecting rod w/nut

8шт.

13

NSS

NOT SOLD SEPARAT

NUT, connecting rod bolt

8шт.

14

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

piston pin

4шт.
