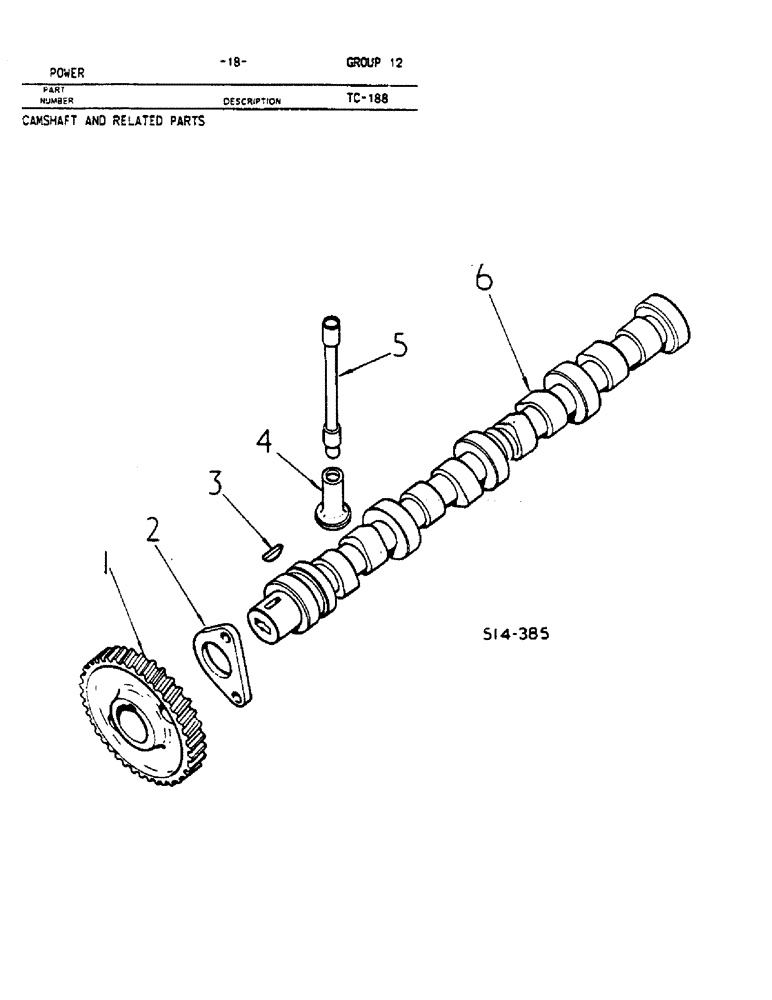

Запчасти Case IH HYDRO 84 (12-18) - POWER, CAMSHAFT AND RELATED PARTS Power

1

3055176R1

PINION

GEAR, camshaft, 66T

1шт.

2

3055051R2

PLATE

camshaft thrust or OR

1шт.

2

3218896R1

PLATE

camshaft thrust

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

3050129R1

LOCK WASHER

WASHER, 5/16 med lock

2шт.

3

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, 1/4 x 7/8 SAE a woodruff, camshaft gear

1шт.

4

3055052R1

TAPPET

valve push

8шт.

5

3144341R1

PUSH ROD

ROD, valve push, replaces 3055054R2 or 3136967R1

8шт.

6

3055046R3

CAMSHAFT

1шт.

Changed from 5 lobes to 3 lobes, See Service Manual

1шт.
