Запчасти Case IH HYDRO 84 (12-12) - POWER, GOVERNOR CONTROLS, BOSCH Power

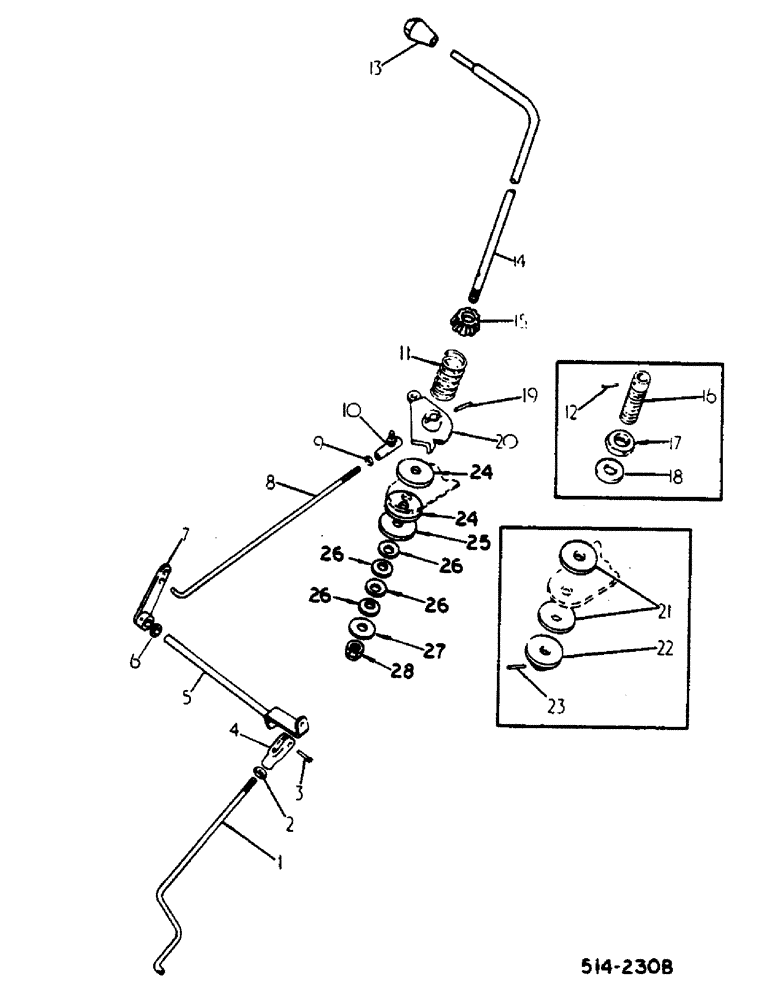

Схема запчастей Case IH HYDRO 84 - (12-12) - POWER, GOVERNOR CONTROLS, BOSCH Power
10
12
26
18
15
24
9
16
1
7
4
27
21
2
6
5
24
13
23
26
26
28
20
17
14
25
3
22
8
11
19
26

Артикул

Название

Примечание

Количество

1

528334R3

ROD

front governor controls

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 pln cot

1шт.

2

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-nf pln jam type 5

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x .770 pln clevis

1шт.

4

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS, 1/4-28 x 1-11/16 pln sht adj OR

1шт.

4

1500842C1

YOKE

rod end

1шт.

5

528325R2

ARM

ASSY, governor control idler

1шт.

6

Q1597

WASHER

.406 x .734 x .056 pln OR

1шт.

6

20285H

WASHER

.406 x .750 x .105 pln

1шт.

7

539572R2

LEVER

ASSY, idler arm

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

8

528336R2

ROD

rear governor control

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 pln cot

1шт.

9

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

10

191474

BALL JOINT

JOINT, 1/4 unf ball OR

1шт.

10

192227

BALL JOINT

JOINT, 1/4 unf ball OR

1шт.

10

27258R1

BALL JOINT

JOINT, 1/4 unf ball

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-nf pln jam type 5

1шт.

25-114

NUT,1/4"-28, G5

1/4-nf pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

65344C1

SPRING

governor friction control, used w/rod 3121391R1

1шт.

12

19313R1

PIN,5/32" x 7/8", Coiled

5/32 x 1 HV coiled spring

1шт.

13

402584R1

BUTTON

KNOB, governor control handle

1шт.

14

3121391R2

ROD

governor control handle, replaces 3121391R1 by also furnishing ref. no. 24 thru 28

1шт.

15

528290R1

GUIDE RING

COLLAR, governor control handle

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW, no. 8 x 3/8 pln f/pt hdl/hs set

1шт.

16

65345C1

SPACER

adjustable, used w/rod, 3121391R1

1шт.

17

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 znd hex jam, used w/rod, 3121391r1

1шт.

18

467750R1

WASHER

25/32 x 1-1/2 x .120 znd, used w/rod, 3121391R1

1шт.

19

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

20

528291R3

ARM ASSY.

ARM ASSY, governor control rod

1шт.

21

394716R1

DISC

governor control friction, used w/rod, 3121391R1

1шт.

22

528294R1

PLATE ASSY.

PLATE ASSY, governor control friction, used w/rod, 3121391R1

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

23

19313R1

PIN,5/32" x 7/8", Coiled

Used w/rod 3121391R1 5/32" x 7/8", Coiled

1шт.

24

3123275R1

FRICTION WASHER

DISC, governor control friction, used w/rod, 3121391R2

2шт.

25

22042R1

WASHER

.531 x 2.000 x .105, used w/rod, 3121391R2

1шт.

26

1500778C1

DISC

spring 24.4 x 12.9 x .90, used w/rod, 3121391R2

1шт.

27

22187R1

WASHER

.531 x 1.125 x .054, used w/rod, 3121391R2

1шт.

28

894980H1

LOCK NUT

1/2 unf self locking, used w/rod, 3121391R2

1шт.

Выбрано товаров: 40
