Запчасти Case IH HYDRO 84 (12-03) - POWER, AIR CLEANER & CONNECTIONS, 684 TRACTORS W/S/N 8143 & ABOVE, HYDRO 84 TRAC. W/S/N 8001 & ABOVE Power

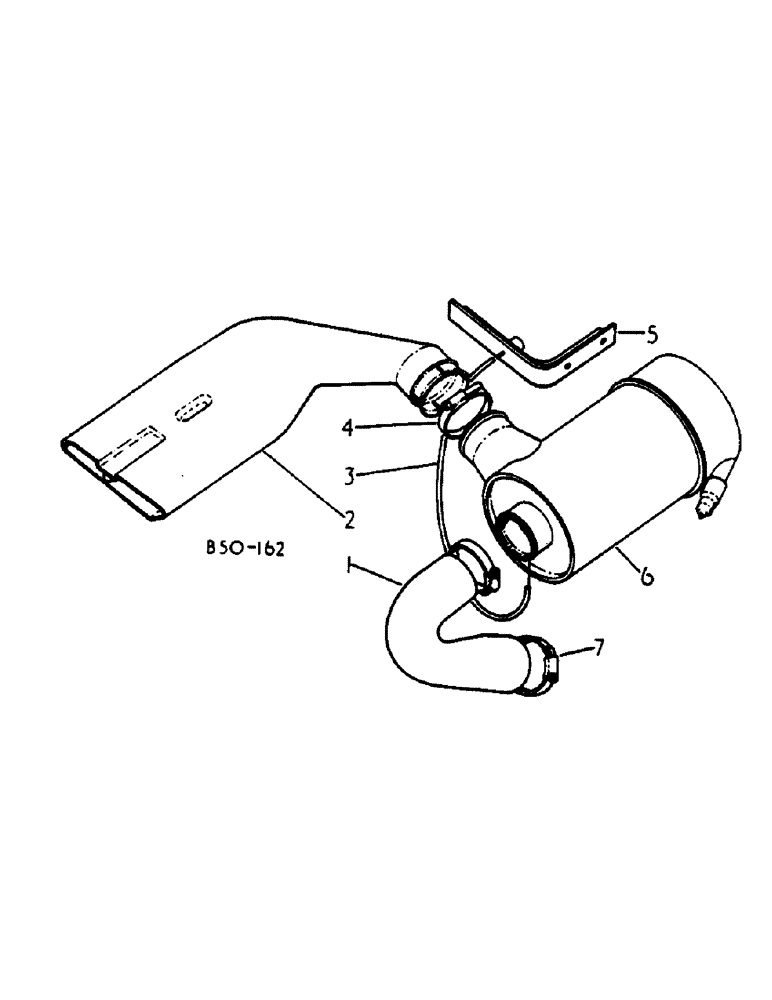

Схема запчастей Case IH HYDRO 84 - (12-03) - POWER, AIR CLEANER & CONNECTIONS, 684 TRACTORS W/S/N 8143 & ABOVE, HYDRO 84 TRAC. W/S/N 8001 & ABOVE Power
2
5
4
7
1
6
3

Артикул

Название

Примечание

Количество

1

3125121R2

HOSE

air cleaner outlet

1шт.

2

3129847R1

DUCT

air inlet

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE, air cleaner restriction ind use 230mm, 9 inches, from bulk roll marked 990015C1

1шт.

4

985851R91

HOSE CLAMP,#64, 3.56/4.50 Type F Worm

CLAMP, hose

1шт.

5

3121420

BRACKET, air cleaner mounting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

1265217C91

CLEANER

ASSY, air, for components see list of parts under detail of air cleaner

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

894005H1

CLAMP

no. 4005 hose OR

1шт.

7

1265536C1

CLAMP

.046 hose, air cleaner end

1шт.

7

539994R

CLAMP, no. 3505 hose OR

1шт.

7

1265535C1

CLAMP

.048 hose, intake manifold end

1шт.

Выбрано товаров: 15
