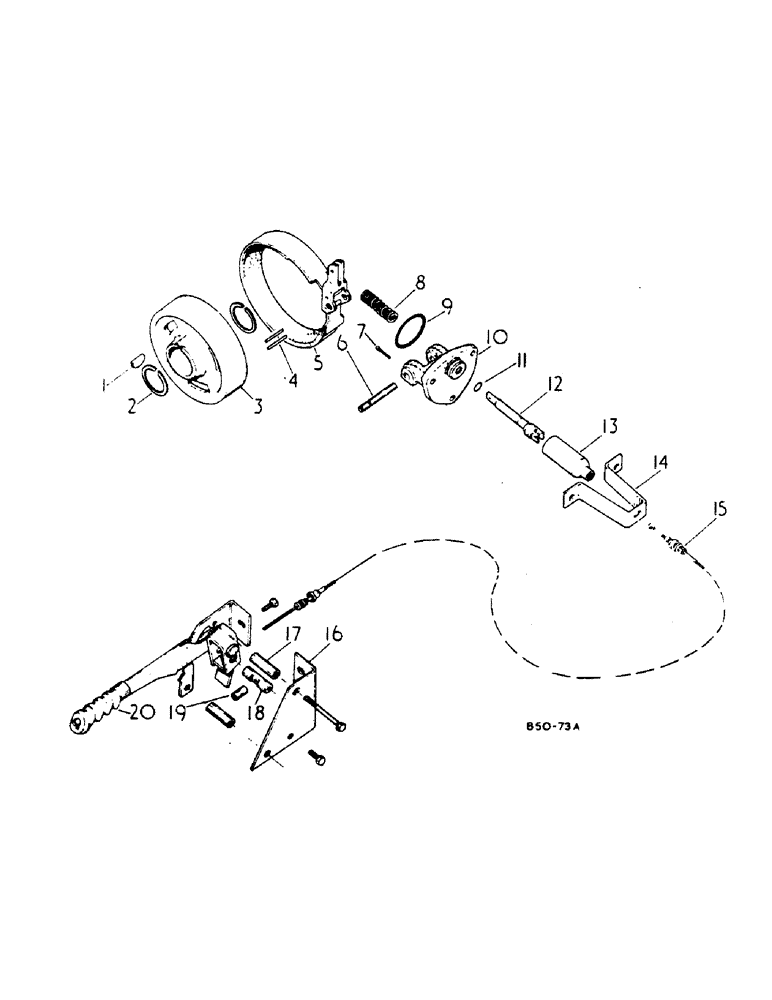

Запчасти Case IH HYDRO 84 (04-06) - BRAKES, PARK BRAKE, HYDRO 84 TRACTORS (5.1) - BRAKES

1

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

2

327058R1

RING, SNAP

RING, retaining snap

1шт.

3

399828R1

HUB

brake drum

1шт.

4

535544R1

PIN

anchor

2шт.

5

401992R3

BAND

ASSY, brake and actuating toggle

1шт.

16616R1

CLEVIS PIN,5/16" x .940"

PIN, 5/16 x .940 PHC clevis

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

6

401998R1

PIVOT PIN

PIN, parking brake pivot

1шт.

7

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

8

402000R1

SPRING

parking brake return

1шт.

9

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 x 3/32, parking brake pivot

1шт.

10

401997R2

PIVOT

parking brake

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16, pivot plunger

1шт.

12

402014R1

PLUNGER

parking brake pivot

1шт.

702269R1

HEADED PIN,5/16" x 15/16"

PIN, 5/16 x .938 pln hd type 1

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

13

402015R1

BOOT

cable protection

1шт.

14

401999R1

SUPPORT

BRACKET, cable housing anchor lower

1шт.

15

CABLE ASSY, parking brake, on orders for cable assy 529084R1, cable, 3129788R2, pin, 3129789R1, block 3129790R1 and nut 144418H, Serial Range: -5549

1шт.

15

3129788R2

CABLE ASSY.

CABLE ASSY, parking brake, Start Serial: 5550

1шт.

144418H

LOCK NUT,5/16"-24, GB

NUT, LOCK, 5/16"-24, GB

2шт.

148150

HAIR PIN COTTER,3/8" Retainer

PIN, 3/8 pln ret

2шт.

16

1502240C1

SUPPORT

BRACKET ASSY, hand brake support, replaces 3121680R1

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

17

11531N

SPACER,3/8" Pipe x 2"

.675 x .493 x 2.0 long

2шт.

18

3121683R1

PIN

parking brake cable, used w/cable assy, 529084R1

1шт.

18

3129789R1

PIN,16mm OD x 50mm L

parking brake cable, used w/cable assy, 3129788R2

2шт.

19

48094K

SPACER

.5 x .334 x .938 long used w/cable assy, 529084R1

1шт.

19

3129790R1

BLOCK

park brake cable, used w/cable assy, 3129788R2

1шт.

20

3129929R92

LEVER ASSY.

LEVER ASSY, park brake hand, replaces 3121682R91, for components, see list of parts under details of park brake hand lever

1шт.
