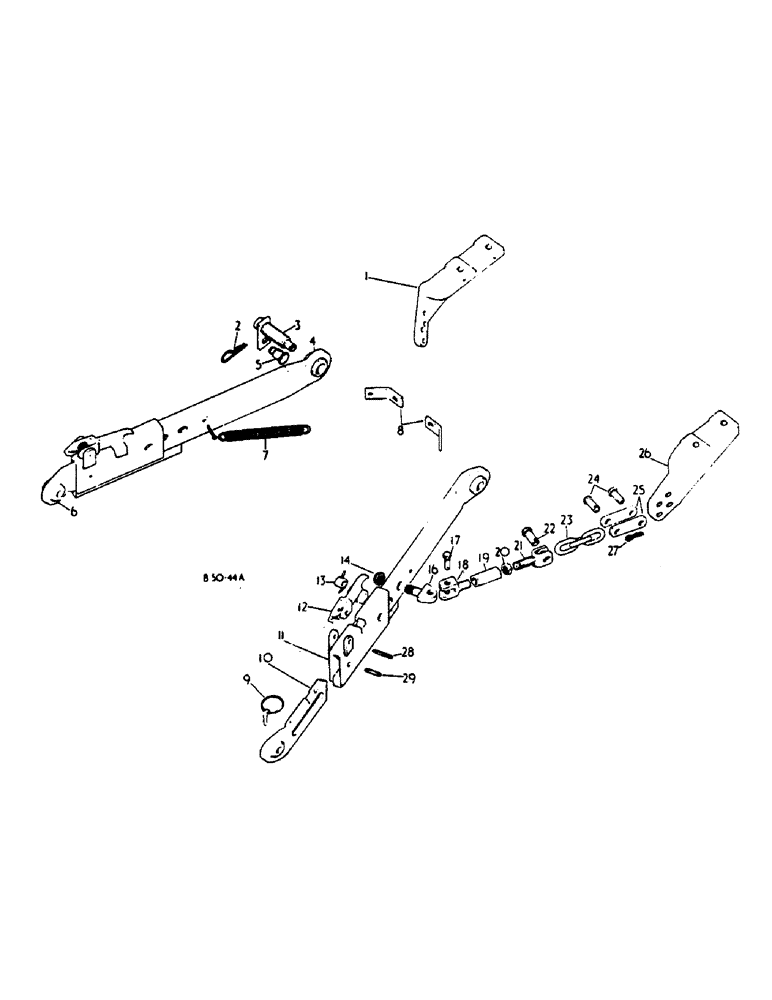

Запчасти Case IH HYDRO 84 (09-11) - FRAME, TELESCOPIC LOWER LINKS, THREE POINT HITCH, W/ OUTSIDE CHECK CHAINS, UTILITY AND AWD TRACTORS (12) - FRAME
№
Артикул
Название
Примечание
Количество
1
529874R1
SUPPORT
BRACKET, check chain LH
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
5/8 x 2 pln type 5
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
2
538406R1
COTTER PIN
PIN, qa cotter
2шт.
3
3118060R1
PIN
lower link
2шт.
4
3121157R91
LOWER LINK
LINK ASSY, front section LH lower
1шт.
32-2024
COTTER PIN,5/16" x 1 1/2"
PIN, SPLIT (COTTER), 5/16" x 1 1/2"
1шт.
5
3118063R1
PIN
lower link drawbar
2шт.
6
403019R2
END FITTING
LINK ASSY, rear section LH lower
1шт.
7
662632R1
SPRING
check chain restaining
2шт.
8
3121228R1
BRACKET
sway chain
2шт.
271554
GREASE,Hex, 5/8" - 11 x 1", Gr 5
5/8 x 1 pln type 5
4шт.
9
533189R1
PIN
ASSY, lower link drawbar
2шт.
10
403020R2
END FITTING
LINK ASSY, rear section RH lower
1шт.
11
3121158R941
LINK ASSY, front section RH lower
1шт.
32-2024
COTTER PIN,5/16" x 1 1/2"
PIN, SPLIT (COTTER), 5/16" x 1 1/2"
1шт.
12
403023R1
LATCH
rear section lower
2шт.
13
403024R1
SPRING
2шт.
14
19853R1
LOCK NUT,7/8"-14
NUT, 7/8-14 lock
2шт.
15
Not used this application
1шт.
16
3113599R1
BOLT,7/8" - 14 x 1.90"
eye
2шт.
17
528112R2
PIN,15.77mm OD x 54.61mm L
limiter chain
2шт.
108630
COTTER PIN,1/8" x 7/8"
Pin, Split (Cotter), 1/8" x 7/8"
2шт.
18
3118016R1
CLEVIS,7/8" - 14
limiter chain lh thd
2шт.
19
3116619R1
NUT
adjustment
2шт.
20
219754
BACK-UP RING
7/8-14 hex jam
2шт.
21
70622C1
CLEVIS,7/8" - 14
limiter chain
2шт.
22
403037R2
PIN
limiter chain
2шт.
108630
COTTER PIN,1/8" x 7/8"
Pin, Split (Cotter), 1/8" x 7/8"
2шт.
23
3113595R1
CHAIN,139.7mm L
CHAIN, limiter
4шт.
24
528112R2
PIN,15.77mm OD x 54.61mm L
limiter chain
4шт.
108630
COTTER PIN,1/8" x 7/8"
Pin, Split (Cotter), 1/8" x 7/8"
2шт.
25
3113594R1
PLATE
STRAP, check chain adj
4шт.
26
529875R1
SUPPORT
BRACKET, check chain RH
1шт.
271563
SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5
5/8 x 2-1/4 pln type 5
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
27
720631R1
LINCH PIN
PIN, adj strap cotter
2шт.
28
591261R1
PIN,3/8" x 2 1/8", Coiled
2шт.
29
19903R1
PIN,1/2" x 1 3/4", Coiled
2шт.
1092798R2
PRODUCT GRAPHIC
sway chains
1шт.
Выбрано товаров: 40
