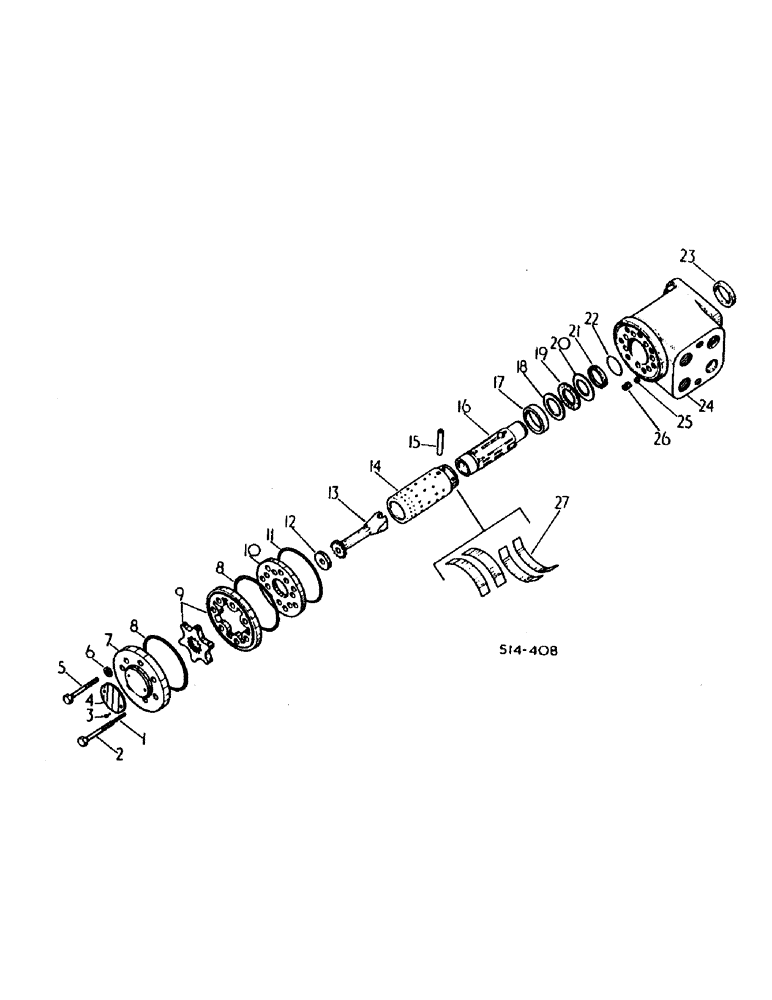

Запчасти Case IH HYDRO 84 (10-22) - HYDRAULICS, INTEGRAL HYDROSTATIC POWER STEERING VALVE (07) - HYDRAULICS

67698C93

VALVE

ASSY, integral power steering

1шт.

1

3112271R1

PIN, ROLL

ed

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE, rating

1шт.

5

3146908R1

BOLT,M8 x 1 x 35mm

plain

6шт.

5

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

drilled

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER

7шт.

Order package 1500443C91.

1шт.

7

1500444C1

CAP

end

2шт.

8

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Order package 1500443C91.

1шт.

9

538918R1

ROTOR ASSY.

SET, rotor, consist of items 12 & 13

1шт.

10

3112276R1

PLATE

valve

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Order package 1500443C91.

1шт.

12

538916R1

SPACER

1шт.

13

538915R1

DRIVE SHAFT

LINK, drive

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

15

3112269R1

PIN

cross

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

17

3112264R1

RING

1шт.

3234338R91

BEARING SET

ASST, consist of ref no. 18, 19 & 20

1шт.

18

NSS

NOT SOLD SEPARAT

RACE, bearing

1шт.

Order bearing assembly 3234338R91.

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING, needle

1шт.

Order bearing assembly 3234338R91.

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER, axial

1шт.

Order bearing assembly 3234338R91.

1шт.

21

NSS

NOT SOLD SEPARAT

RING, kin

1шт.

Order package 1500443C91.

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Order package 1500443C91.

1шт.

23

NSS

NOT SOLD SEPARAT

RING, seal

1шт.

Order package 1500443C91.

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING, included ref nos. 14 & 16

1шт.

25

3112270R1

BALL

steel

1шт.

26

3112272R1

BUSHING

threaded

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING, leaf

4шт.

1500443C91

SEAL KIT

PACKAGE, seal & spring service, consists of 1 ring, dust seal 1 seal, lip, 4 o-rings, 7 washers, 4 spring, leaf, NSS

1шт.
