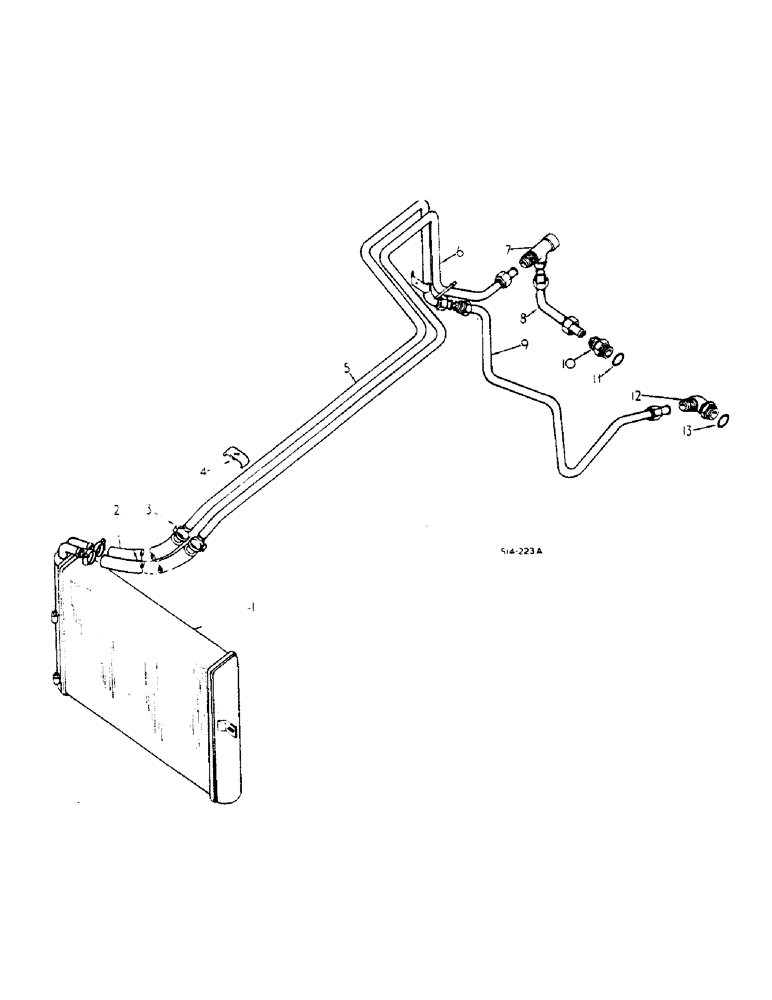

Запчасти Case IH HYDRO 84 (06-02) - COOLING, OIL COOLER, HYDRO 84 TRACTORS Cooling

1

3121371R1

COOLER

oil, or

1шт.

1

406409R2

COOLER

oil

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1.875 pln hd type 1

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

73200C1

HOSE,16mm ID x 1219.2mm L

Oil Cooler, 14.0 in, Furnish From .62 ID Bulk Hose Marked 3121724R1 0.63" ID x 48.00"

2шт.

3

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, no. 12 hose, or

4шт.

3

709899R91

CLAMP

no. 12 hose

4шт.

4

529645R1

CLAMP

oil cooler tube

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

56554C2

PIPE

TUBE ASSY, oil cooler outlet fwd

1шт.

6

65770C1

TUBE ASSY.,0.625" OD, 42.27, 16" Length

TUBE ASSY, oil cooler inlet

1шт.

7

9403139

TEE,7/8"-14, 37º x 1/2"-14, NPTF Fem Run

5/8 C-Z hyd flared tube two way

1шт.

8

65768C1

TUBE ASSY.,0.625" OD, 3.9, 3.6" Length

TUBE ASSY, oil cooler inlet, short

1шт.

9

66103C1

PIPE

TUBE ASSY, oil cooler outlet rear

1шт.

10

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel, to multiple valve

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

12

9410973

ELBOW,90 Degree, 3/8"-24, 37 Degree x 3/8"-24, O-Ring

3/16 C-Z hyd fld adj 90D

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.
