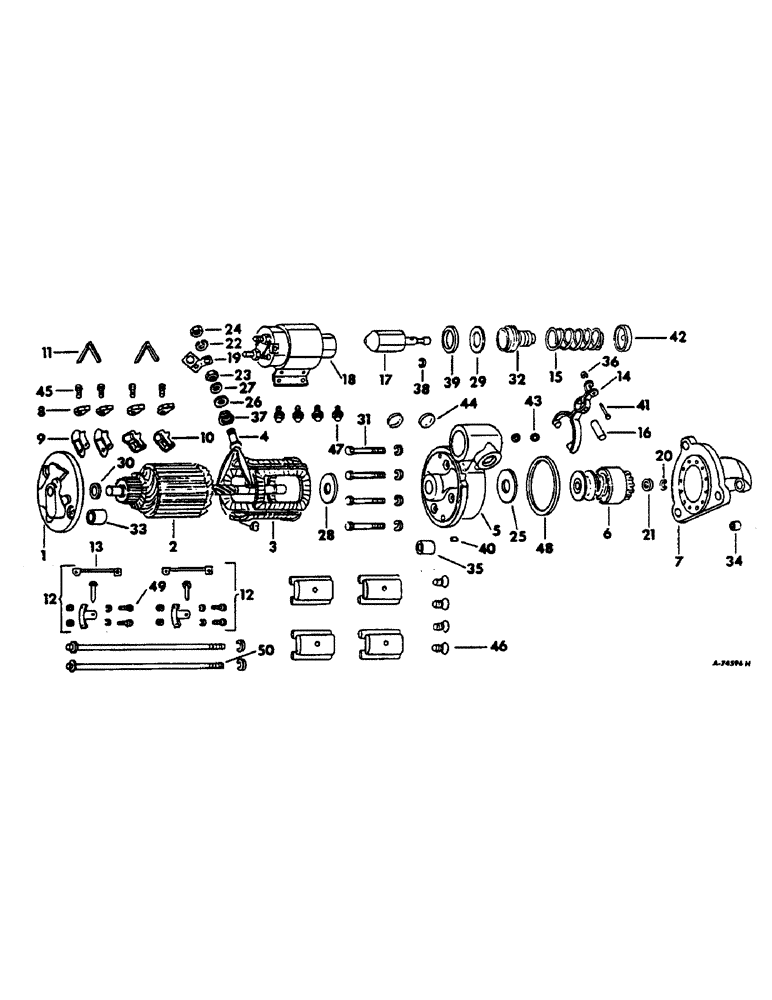

Запчасти Case IH HYDRO 84 (08-07) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, HYDRO 84 TRACTORS (06) - ELECTRICAL

1993792

MOTOR

STARTER MOTOR, delco remy, replaced by 1993705 cranking motor, Replaced 1113690

1шт.

1

1945617

HOLDER

FRAME, commutator end

1шт.

1916439

WICK

commutator end

1шт.

810819

PLUG

end

1шт.

2

594930C1

ARMATURE

Replaced 1967045

1шт.

3

1946386

COIL ASSY.

COIL ASSY, field, 4 coils, Replaced 1346386

1шт.

1914873

INSULATOR

field coil

2шт.

4

1933879

TERMINAL CONNECTOR

terminal

1шт.

5

1942241

HOUSING

lever, consists of

1шт.

1933999

BUSHING

1шт.

9411375

PLUG

2шт.

9419572

PLUG

1шт.

1947350

WICK

1шт.

6

1941157

MOTOR HOUSING

MOTOR ASSY, drive

1шт.

7

1947803

HOUSING

drive

1шт.

1916439

WICK

drive end

1шт.

8

1906987

BRUSH

4шт.

9

1640477

HOLDER, brush ground

2шт.

10

1950546

HOLDER

SPRING, brush insulated

2шт.

11

1945620

SPRING

brush

2шт.

12

1945923

PACKAGE

brush support

2шт.

13

1930694

CABLE

WIRE, ground

2шт.

14

1942245

LEVER

shift

1шт.

15

1948521

SPRING

lever

1шт.

16

Not used this application

1шт.

17

1942250

PLUNGER

1шт.

18

1115510

SOLENOID SWITCH

SWITCH ASSY, solenoid

1шт.

1917084

SCREW

switch

4шт.

19

1946394

CONNECTOR, ELEC

CONNECTOR, switch

1шт.

20

1928022

SNAP RING

RING, pinion stop retainer

1шт.

21

19280213

COLLAR, pinion stop

1шт.

22

Not used this application

1шт.

23

805258

NUT

terminal stud, 5/32 in. thick

1шт.

24

Not used this application

1шт.

25

NLS

NO LONGER SERVICED

brake

1шт.

26

1950029

WASHER

insulating terminal stud

1шт.

27

9421425

WASHER

terminal stud

1шт.

28

1946395

WASHER

space

1шт.

29

1942259

WASHER

spring retainer

1шт.

30

1914842

WASHER

commutator end space

1шт.

31

122077

PLUG

drive housing attaching

4шт.

32

1949618

BOOT

plunger

1шт.

33

1872678

BUSHING

commutator end

1шт.

34

1955994

BUSHING

drive end

1шт.

35

1933999

BUSHING

lever housing

1шт.

36

1938376

RING, SNAP

RING, lever attaching pin snap

1шт.

37

1937783

BUSHING, insulating terminal stud

1шт.

38

9415235

RING, SNAP

RING, retainer snap

1шт.

39

1942256

RETAINER

spring 1-13/64 in hole

1шт.

40

1947350

WICK

lever housing

1шт.

41

1942253

PIN

lever attaching

1шт.

42

1942282

PIN

RETAINER, spring 13/32 in hole

1шт.

43

9419572

PLUG

1/2 in diameter lever housing

2шт.

44

9411375

PLUG

1-3/16 diameter lever housing

2шт.

45

Not used this application

1шт.

46

1968396

SCREW

pole shoe

8шт.

47

Not used this application

1шт.

48

Not used this application

1шт.

49

Not used this application

1шт.

50

1883865

BOLT

commutator end through

2шт.

1993705

MOTOR

cranking, replaces 1113690 cranking motor, service parts not available at time of printing

1шт.

Brush Spring for cranking motor is P/N 1985314.

1шт.

537143R1

TERMINAL CONNECTOR,Male

TERMINAL, Male

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120381

WASHER

3/8 lt lock

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.
