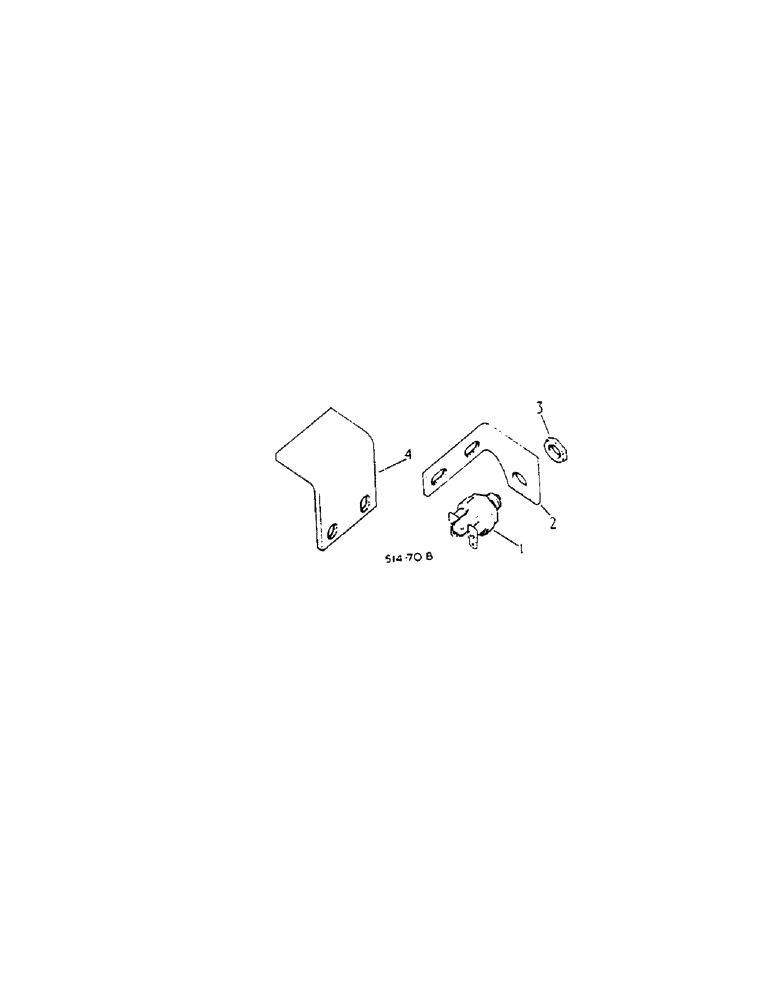

Запчасти Case IH HYDRO 84 (08-05[A]) - ELECTRICAL, NEUTRAL SAFETY SWITCH, 684 TRACTORS WITH SERIAL NO. 7252 AND BELOW, HYDRO 84 TRACTORS (06) - ELECTRICAL

1

3114409R92

NEUTRAL START SWITCH

SWITCH, neutral safety, Replaces: 3072122R93

1шт.

Under the neutral Safety Switches, a 4-prong switch is available in Torque Amplifier Pkg 98808C91.

1шт.

2

531203R2

BRACKET

ASSY, safety switch mounting

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

684 tractors Hex, 3/8"-16 x 1", G5

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Hydro 84 tractors Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

2шт.

3

3112570R1

NUT

NUT, safety switch locking

1шт.

4

Not used this application

1шт.
