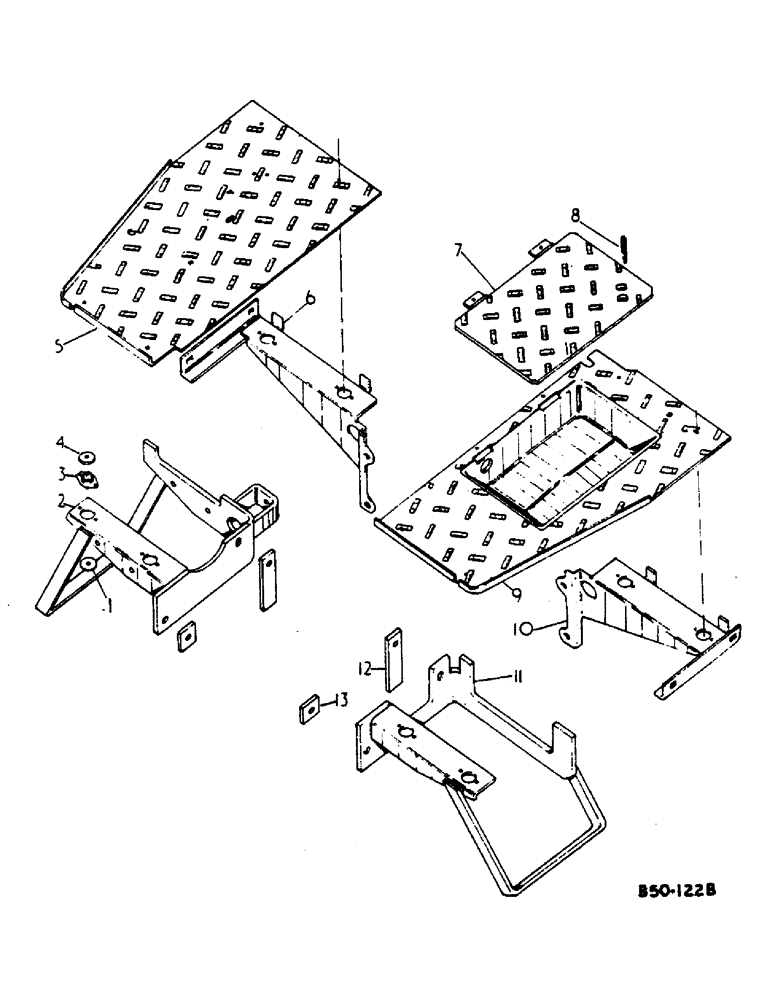

Запчасти Case IH HYDRO 84 (13-16) - SUPERSTRUCTURE, PLATFORMS AND SUPPORTS (05) - SUPERSTRUCTURE

1

3123710R1

WASHER

snubbing

8шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

8шт.

120622

NUT,#8-32

8шт.

2

1265128C1

SUPPORT

ASSY, platform frt RH w/step, 684 tractors, replaces 3123695R2

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

1265128C1

SUPPORT

ASSY, platform frt RH w/step, hydro 84 tractors, replaces 3125088R2

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

3123709R1

SHOCK ABSORBER

ABSORBER

8шт.

159287

SCREW,Cross Pan Hd, #6 - 32 x 3/8"

no. 6 x 3/8 phc p/hdcr mach

16шт.

131044

LOCK WASHER

Lock, #6

16шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

16шт.

4

3123710R1

WASHER

snubbing

8шт.

159675

SCREW,Cross Pan Hd, #8 - 32 x 1"

8 x 1 znp p/hd cr mach

8шт.

NLS

NO LONGER SERVICED

.188 x .438 x .036

8шт.

120622

NUT,#8-32

8шт.

5

3123690R1

PLATFORM

ASSY, RH

1шт.

6

3123703R1

SUPPORT

ASSY, platform rear RH, utility & row crop tractors

1шт.

6

1500041C2

SUPPORT

ASSY, platform rear RH, all wheel drive tractors

1шт.

179887

CABLE

1/2 x 1-3/4 pln type 5, support to clutch housing

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln), Support to fenders 3/8"

2шт.

7

538421R1

COVER ASSY

tool box

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

8

528917R1

RING

finger pull

1шт.

9

1536026C1

PLATFORM

ASSY, LH (replaced 3123689R1 )

1шт.

Had tool box made in it. Because of cost reduction, tool box eliminated. Only alternative is to add magnum tool box A181436, and A181434 MTG bracket on side set up instead.

1шт.

10

3123702R1

SUPPORT

ASSY, platform rear LH

2шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 pln type 8, support to clutch housing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln), Support to fenders 3/8"

2шт.

11

3123694R3

SUPPORT

ASSY, platform LH

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

3125086R1

BAR

spacer platform front support, LH and RH

2шт.

13

3125087R1

SPACER

platform front support, LH and RH

2шт.
