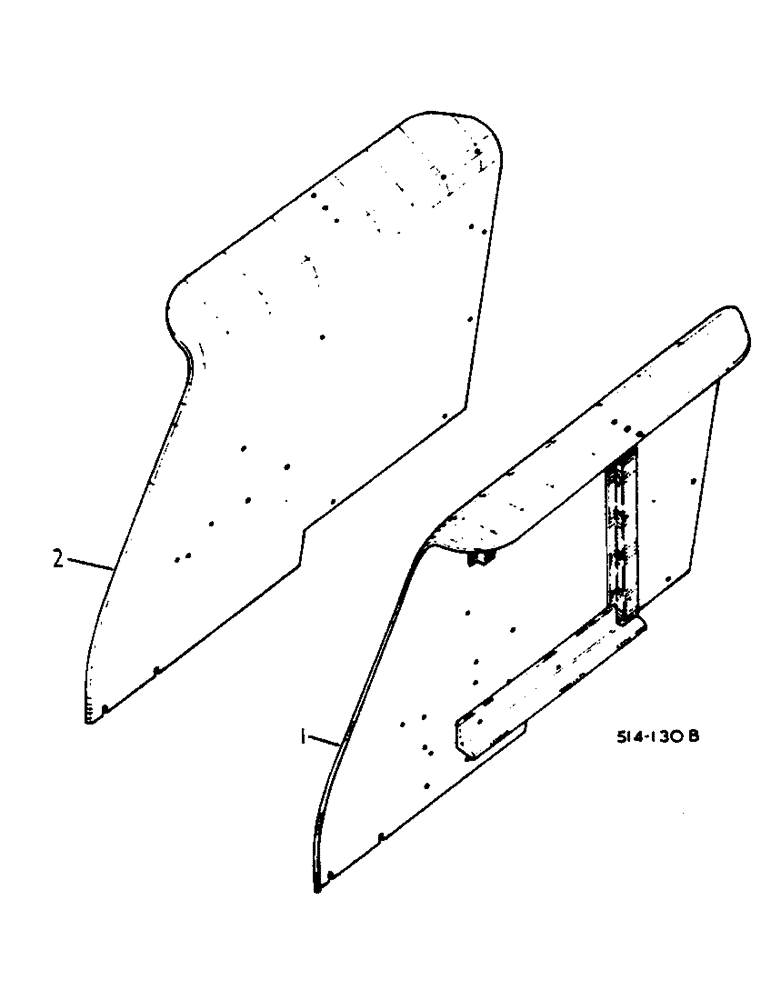

Запчасти Case IH HYDRO 84 (13-06) - SUPERSTRUCTURE, REAR FENDERS, CROWN TYPE (05) - SUPERSTRUCTURE

1

538641R4

FENDER ASSY.

FENDER W/PRODUCT GRAPHIC, LH, high crown

1шт.

6" wide. left hi-crown. 848 mm high (33.39" high).

1шт.

1

538639R3

FENDER ASSY.

FENDER W/PRODUCT GRAPHIC, LH, low crown

1шт.

8" wide. Left lo-crown. 805 mm HIGH (31.69" high).

1шт.

2

530015R7

FENDER ASSY.

FENDER ASSY, RH, high crown

1шт.

2

530002R5

FENDER ASSY.

FENDER ASSY, RH, low crown

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , To rear top cover 5/16"

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

To transmission shift control housing or draft control housing 5/16"-18, G5

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd cap

4шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, , To axle carrier 1/2"

4шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , To parking brake bracket 3/8"

3шт.

3113657R1

PLUG

side and tail light blanking

4шт.

3113430R1

PLUG

side and tail light blanking

2шт.

3112888R1

PLUG

blanking fender RH

1шт.

531625R1

GROMMET

2шт.

3113430R1

PLUG

blanking fender LH, low crown only

3шт.

3125820R1

SLEEVE

pvc

3шт.
