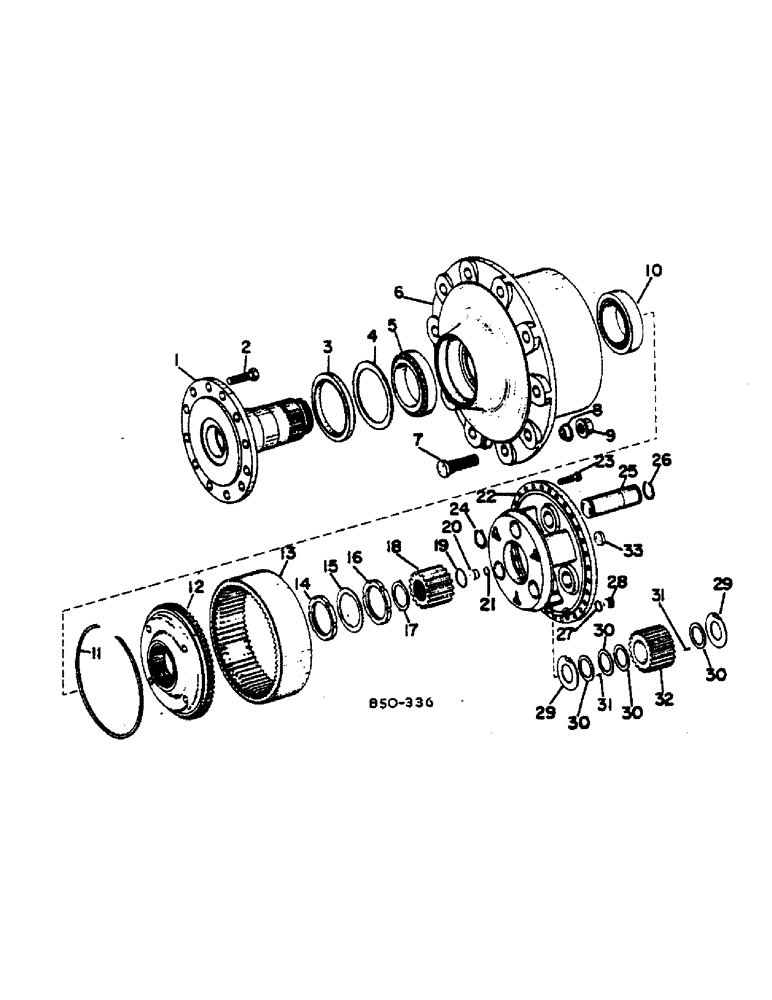

Запчасти Case IH HYDRO 84 (07-70) - DRIVE TRAIN, HUB CARRIER, PLANETARY DRIVE, ALL WHEEL DRIVE TRACTORS (04) - Drive Train

1

1502272C1

HUB CARRIER

HUB, carrier

2шт.

2

934654R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

SCREW, M12 x 25

24шт.

3

3216594R1

OIL SEAL

SEAL, oil

2шт.

4

3216593R1

WASHER

WASHER

2шт.

5

3230271R1

BEARING

inner

2шт.

6

3230280R1

HUB

wheel

2шт.

7

3230876R1

BOLT,Wheel, Serr, M18 x 1.5 x 61 mm

wheel

16шт.

8

712824R1

LOCK WASHER,M18.5, Spring

WASHER, lock

16шт.

9

933800R1

NUT

wheel

16шт.

10

533727R1

BEARING, CUP

2шт.

533726R91

BEARING

cone

2шт.

11

3146675R1

RING, SNAP

RING, cone

2шт.

12

3230266R1

RING CARRIER

CARRIER, ring gear 72T

2шт.

13

3230267R1

GEAR, RING

72T

2шт.

14

3230269R1

NUT

adj

2шт.

15

3230270R1

DISC

RING, locking

2шт.

16

3230269R1

NUT

adj

2шт.

17

Not used

1шт.

18

3230265R1

GEAR

sun 18T

2шт.

19

933074R1

SNAP RING,M28, Ext

RING, 25.28mm ext ret

1шт.

20

3147209R2

PLUG

thrust

2шт.

21

3147212R1

WASHER

SHIM, .3mm

2шт.

21

3147211R1

WASHER

SHIM, .5mm

2шт.

21

3147210R1

SHIM

1.0mm

2шт.

22

3230259R1

PINION CARRIER

CARRIER, planetary

2шт.

23

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

SCREW, M8 x 30

54шт.

932840R1

LOCK PIN,M8 x 26, Slotted

PIN, 8 x 26 coiled spring

8шт.

932742R1

LOCK PIN,M5 x 26, Slotted

PIN, 5 x 26 slt, spr

8шт.

24

717072R1

SNAP RING,M22, Ext

RING, retaining 24 x 1.2

6шт.

25

3230260R1

SHAFT

planet gear\6

26шт.

26

933255R1

CIRCLIP,Ext, M20.2

RING, snap

6шт.

27

933709R1

PACKING RING

RING, seal

2шт.

28

934651R1

PLUG,Hex Soc, M18 x 1.5

Control Hex Soc, M18 x 1.5

2шт.

28

934718R1

PLUG, M24 drain

2шт.

29

3146668R1

THRUST WASHER

12шт.

30

314667R1

WASHER

12шт.

31

3230262R1

NEEDLE BEARING

BEARING, needle

32шт.

32

3230261R1

GEAR

planet 26T

6шт.

33

933565R1

PLUG,M14, Conical

cup

2шт.
