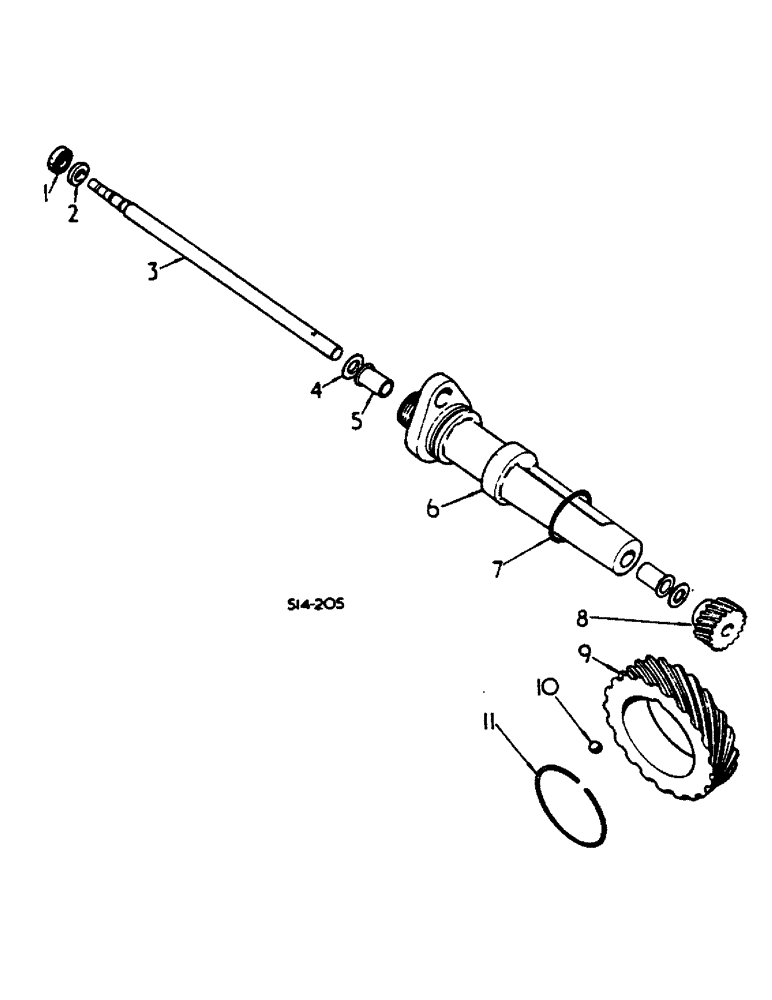

Запчасти Case IH HYDRO 84 (07-63) - DRIVE TRAIN, SPEEDOMETER DRIVE, HYDRO 84 TRACTORS (04) - Drive Train

1

529762R91

SEAL,6.17mm ID x 14.43mm OD x 5.18mm Thk

drive shaft oil

1шт.

2

529758R1

COLLAR

speedometer drive shaft

1шт.

3

529757R11

PIN

SHAFT ASSY, speedometer drive

1шт.

4

529760R1

WASHER, THRUST

WASHER, drive shaft thrust

2шт.

5

529761R1

BUSHING

BEARING, drive shaft

2шт.

6

529763R1

HOUSING

speedometer

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

7

370943R1

O-RING,1.114" ID x 0.07" Width

1-1/8 x 1-1/4 x 1/16

1шт.

8

529778R1

GEAR

speedometer drive, 20T

1шт.

20948R1

PIN,1/8" x 5/8", Coiled

1шт.

9

529777R1

GEAR

speedometer drive, 16T, utility & row crop tractors

1шт.

9

1500440C1

GEAR

speedometer drive, 16T, all wheel drive tractors

1шт.

10

17008R1

BALL,1/4" Dia

Chrome-Steel 1/4" Dia

1шт.

11

381486R1

SNAP RING,#187, 1.759", Ext

RING, drive gear retainer snap, utility & row crop tractors

1шт.

11

1014674C1

RING, SNAP

RING, drive gear retainer snap, all wheel drive tractors

1шт.
