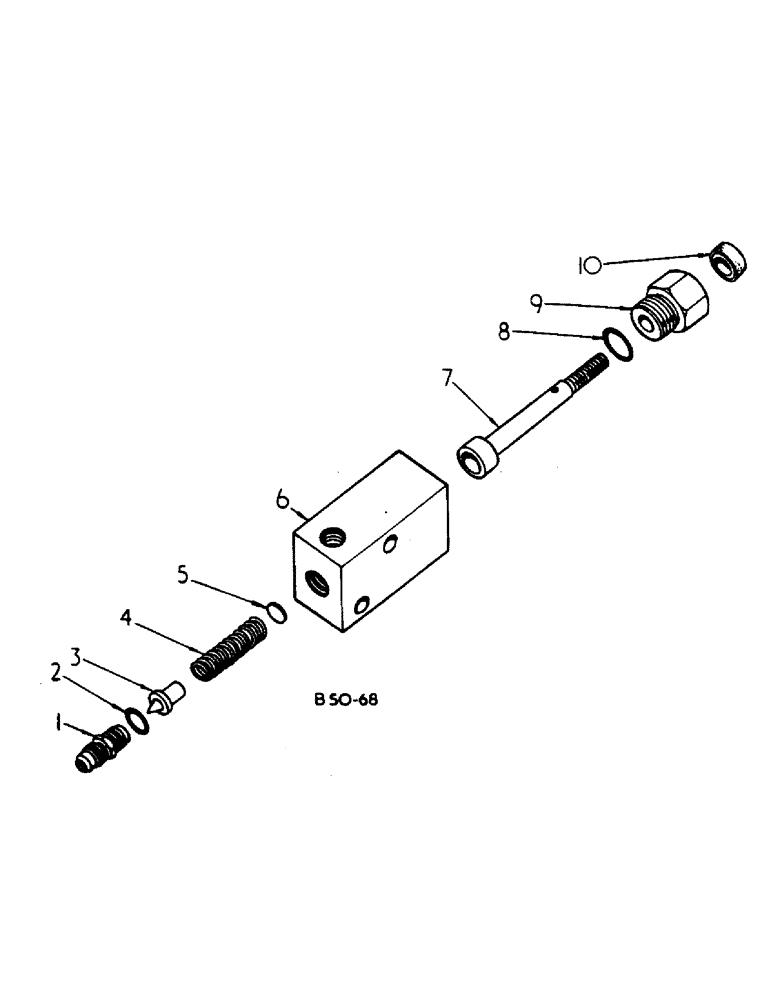

Запчасти Case IH HYDRO 84 (07-59) - DRIVE TRAIN, FOOT-N-INCH VALVE (04) - Drive Train

398705R91

VALVE

assy, foot-n-inch

1шт.

1

398709R1

SEAT

poppet valve

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

3

398710R1

VALVE POPPET

VALVE, poppet

1шт.

4

398731R1

SPRING

valve

1шт.

5

401293R91

PACKAGE

relief valve shim service

7шт.

6

NSS

NOT SOLD SEPARAT

BODY, valve order valve 398705R91

1шт.

7

398708R1

STOP

valve

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

9

398707R1

GUIDE

valve spring stop

1шт.

10

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil

1шт.
