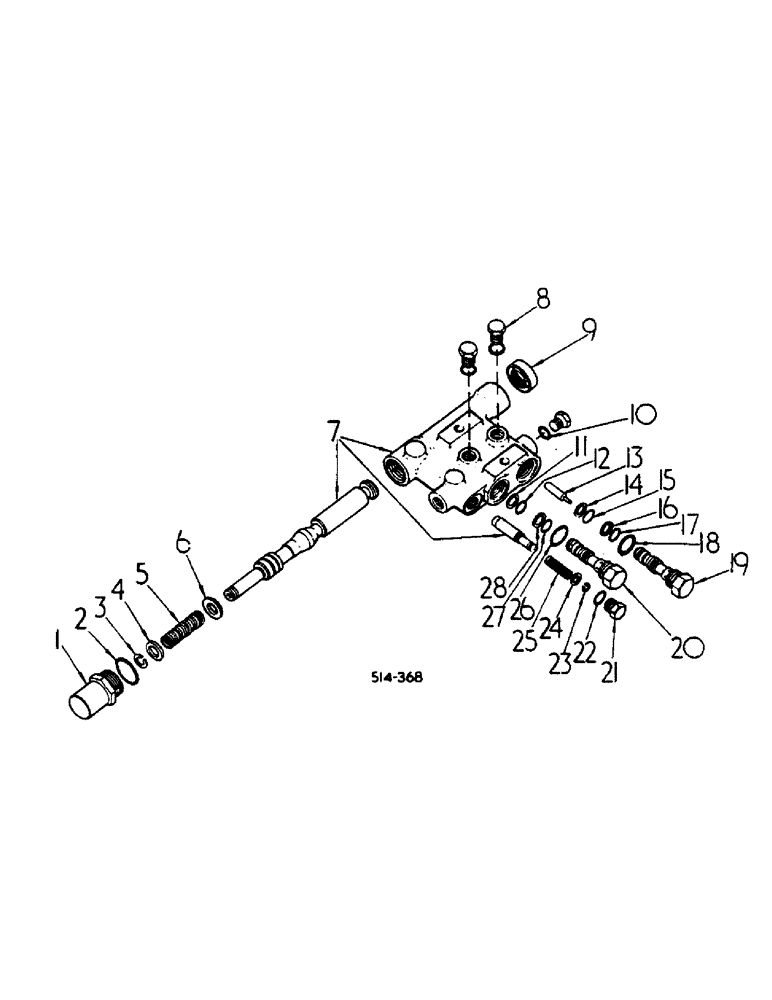

Запчасти Case IH HYDRO 84 (07-58) - DRIVE TRAIN, DRIVE CONTROL VALVE (04) - Drive Train

401852R92

VALVE

ASSY, drive control

1шт.

1

398692R1

PLUG

drive control valve

1шт.

2

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

3

398700R1

SNAP RING,#56, .524", Ext

RING, .524 ext rect sect ret

1шт.

4

398694R1

WASHER

1шт.

5

398733R1

SPRING

drive control valve centering

1шт.

6

398693R1

WASHER

1шт.

7

NSS

NOT SOLD SEPARAT

BODY ASSY, drive control valve, not serviced seperately, order valve assy

1шт.

8

9410356

PLUG

7/16-20 str thd o-ring boss

3шт.

9

381232R91

OIL SEAL

oil

1шт.

10

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

3шт.

11.

398699R1

BACK-UP RING

RING, back up

1шт.

12

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16

1шт.

13

398696R1

PIN

lower valve lift

1шт.

14

398699R1

BACK-UP RING

RING, back up

1шт.

15

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16

1шт.

16

383004R1

BACK-UP RING,Split, 13.16mm ID x 15.9mm OD x 1.32mm Thk

RING, back up

1шт.

17

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

1шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

19

404496R3

VALVE

ASSY, capsule, consist of body (NSS), spring (NSS), ball (NSS), valve assy, NSS body, NSS, spring, NSS, pin, NSS, ball, NSS, seat, NSS

1шт.

If only the description or name of the part is known. 1. Turn to the index to units on figure 1 of the introduction and locate the group and figure on which part appears. 2. On finding the figure, review illustration and parts list and locate part desired.

1шт.

20

404497R3

VALVE

ASSY, capsule, consist of body (NSS), spring, NSS, ball, NSS, valve assy, NSS, body, NSS, spring, NSS, ball, NSS, seat, NSS, washer, NSS

1шт.

If only the location or function of the part in the tractor is known. 1. Follow steps outlined in A- above.

1шт.

21

533567R1

PLUG

9/16-18 str thd o-ring boss

1шт.

22

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

23

875777R1

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

1шт.

24

401291R1

SPRING WASHER

anti-coast valve pin

1шт.

25

400454R1

SPRING

valve

1шт.

26

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

27

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

2шт.

28

383004R1

BACK-UP RING,Split, 13.16mm ID x 15.9mm OD x 1.32mm Thk

RING, back up

2шт.
