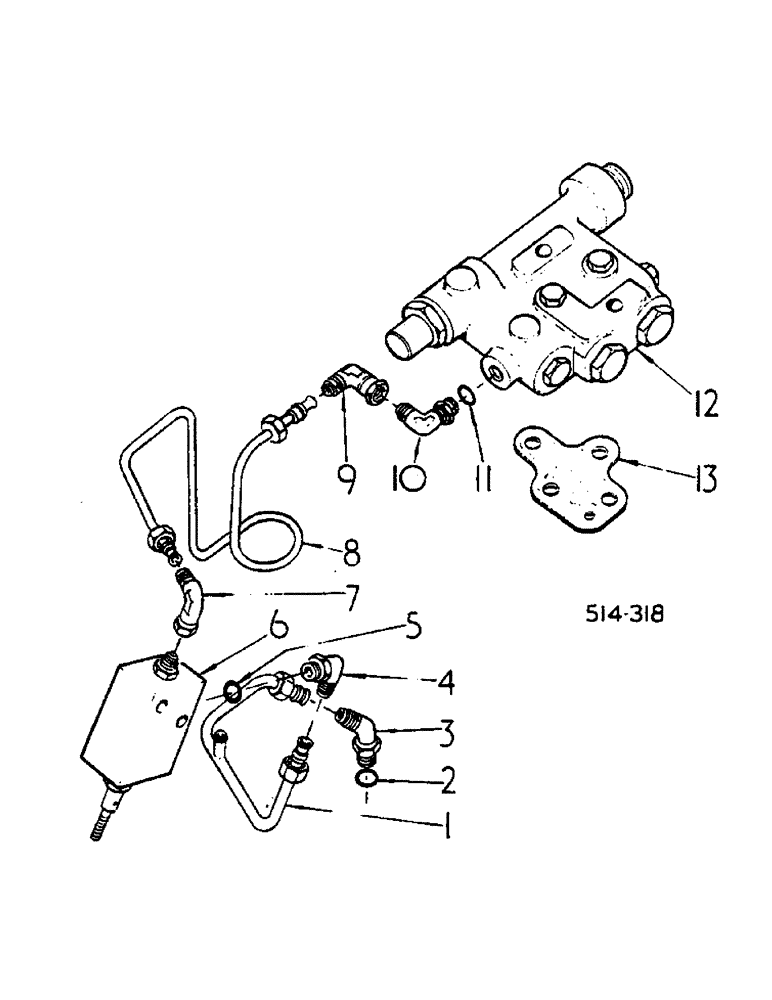

Запчасти Case IH HYDRO 84 (07-57) - DRIVE TRAIN, DRIVE CONTROL AND FOOT-N-INCH VALVE TUBING, HYDRO 84 TRACTORS (04) - Drive Train

1

3125840R1

TUBE

ASSY, pilot valve dump, Start Serial: 1692

1шт.

1

529627R1

TUBE ASSY.

TUBE ASSY, pilot valve dump, Start Serial: 1691

1шт.

2

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, Hydrostatic drive unit housing cover

1шт.

3

9411103

ELBOW,45 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

5/16 C-Z hyd fld adj 45d, hydrostatic drive unit housing cover

1шт.

4

9410975

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

5/16 C-Z hyd fld adj 90d, foot-n-inch valve

1шт.

5

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, Foot-n-inch valve elbow

1шт.

6

398705R91

VALVE

ASSY, foot-n-inch, for components, see list of parts under details of foot-n-inch valve

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

1/4 C-Z hyd fld 90D swivel, pilot valve pressure tube

1шт.

8

3116968R1

TUBE ASSY.,0.25" OD, 6.54, 9.5" Length

TUBE ASSY, pilot valve presure

1шт.

9

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

1/4 C-Z hyd fld 90D swivel

1шт.

10

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1/4 C-Z hyd fld adj 90D, drive control valve

1шт.

11

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Drive control valve elbow

1шт.

12

401852R92

VALVE

ASSY, drive control, for components, see list of parts under details of drive control valve

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

13

405032R1

GASKET

drive control valve

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

2шт.

42947V

CLEVIS PIN,1/4" x 1 1/8"

PIN, 1/4 x 1.125 pln clevis

1шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.
