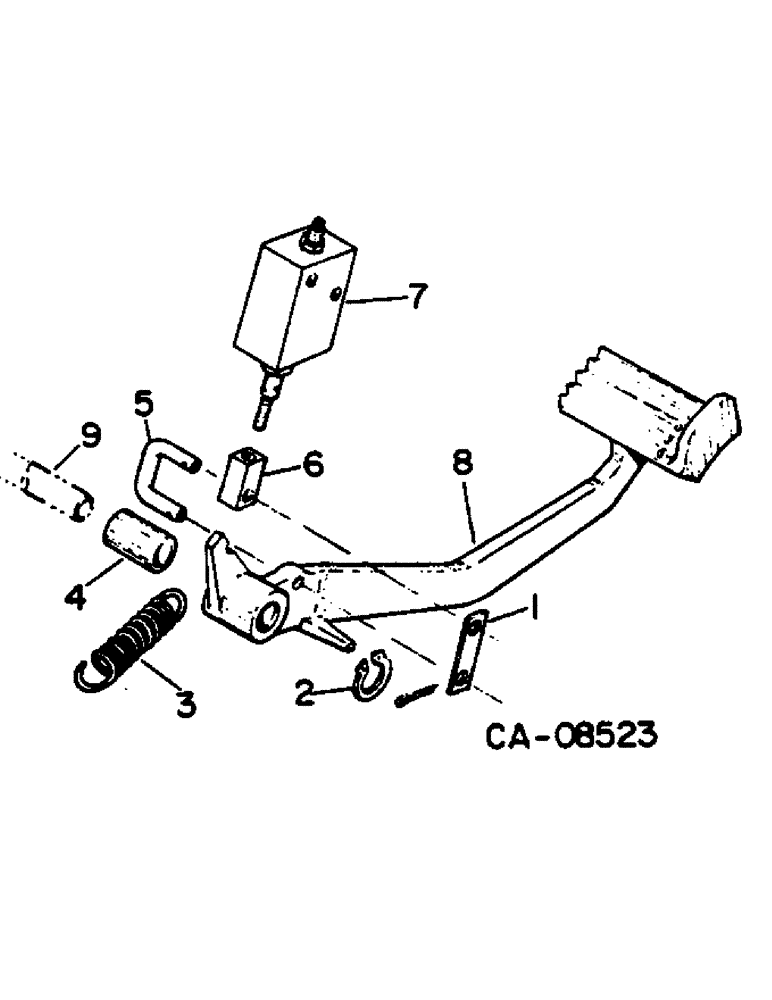

Запчасти Case IH HYDRO 84 (07-56) - DRIVE TRAIN, FOOT-N-INCH CONTROLS, HYDRO 84 TRACTORS (04) - Drive Train

1

539557R1

PLATE

valve link

1шт.

2

454331R1

SNAP RING,#87, Ext

1шт.

3

539556R1

SPRING

pedal return

1шт.

4

530816R1

BUSHING,22.25mm ID x 25.48mm OD x 38.1mm L

foot-n-inch pedal

1шт.

5

534463R2

LINK ASSY.

LINK ASSY, foot-n-inch valve

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

6

398766R1

UNION

BAR, foot-n-inch valve adjustment

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

7

398705R91

VALVE

ASSY, foot-n-inch, for components, see list of parts under details of foot-n-inch valve

1шт.

8

530817R2

PEDAL ASSY.

PEDAL W/BUSHING, foot-n-inch, includes ref no. 4

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 GA

1шт.

21739R1

WASHER

.344 x .562 x .054

1шт.

9

SHAFT, pedal support, refer to brake cylinder & connections

1шт.
