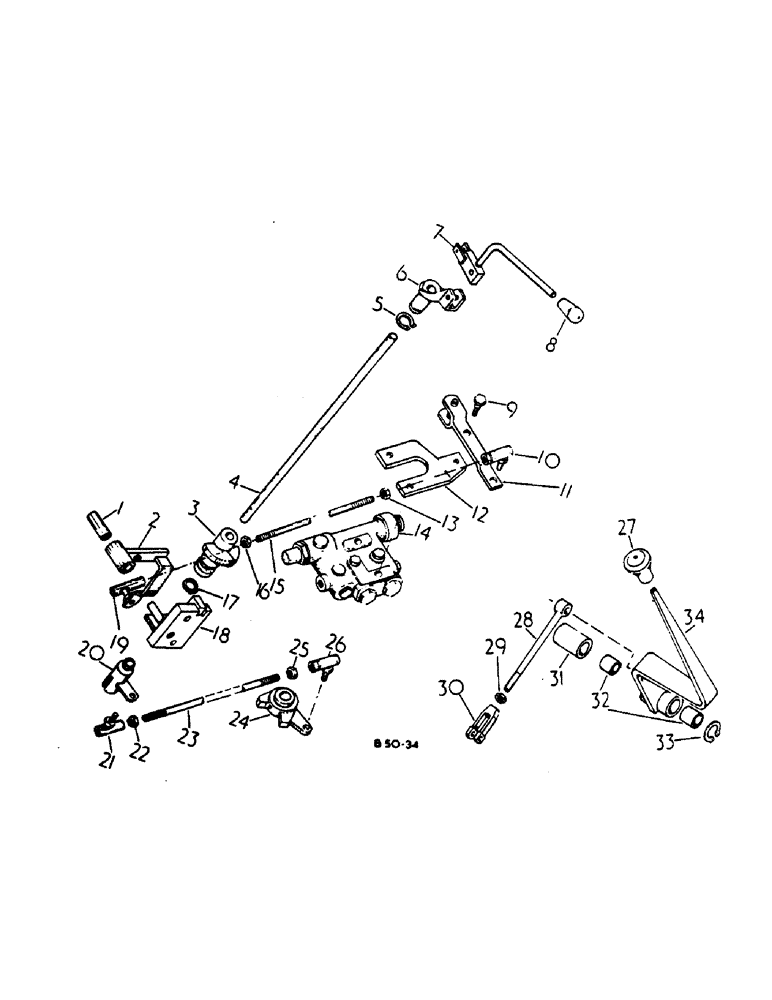

Запчасти Case IH HYDRO 84 (07-55) - DRIVE TRAIN, TRANSMISSION CONTROLS, EXTERNAL, HYDRO 84 TRACTORS, HAND SPEED CONTROLS (04) - Drive Train

1

531350R1

BUSHING

shuttle control lever

1шт.

2

531348R22

LEVER

W/BUSHING, shuttle control, includes ref no. 1

1шт.

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x .750 pln hdn dowel

1шт.

3

531360R1

SPARE PART

GATE ASSY, hydrostatic control

1шт.

4

3121761R1

ROD

control handle

1шт.

20064R1

PIN,4.78mm OD x 31.75mm L

PIN, 3/16 x 1.250 pln hdn dowel

1шт.

5

454331R1

SNAP RING,#87, Ext

1шт.

6

3112834R2

BRACKET

control handle pivot

1шт.

82635H

CLEVIS PIN,5/16" x 1 3/8"

PIN, 5/16 x 1.375 clevis

1шт.

NLS

NO LONGER SERVICED

PIN, 7/64 x 3/4 pln cot

1шт.

120386

WASHER

.312 x .734 x .051

1шт.

7

3121762R1

HANDLE

hydrostatic control

1шт.

8

402584R1

BUTTON

KNOB, control handle

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

9

531375R1

BOLT,3/8" - 16 x 1 1/16"

pivot

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

534930R1

BALL JOINT

JOINT, 3/8-24 x 1-11/32 LH-thd ball

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

531373R11

LEVER ASSY.

BRACKET, shuttle spool control rod

1шт.

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x .500 pln uhdn dowel

2шт.

12

531372R1

BRACKET

shuttle spool control rod

1шт.

13

23460R1

NUT,Jam, 3/8"-24, G5, LH

1шт.

14

401852R92

VALVE

ASSY, drive control, for components, see list of parts under drive control valve

1шт.

15

531359R1

ROD

shuttle spool control

1шт.

16

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

17

269181R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

18

3113982R92

LATCH

ASSY, neutral gate

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

19

JOINT BALL, not serviced separately, order suhttle control lever

1шт.

20

531345R1

ARM ASSY.

ARM ASSY, speed control

1шт.

21

310673R91

BALL JOINT

JOINT 5/16 x 2-3/8 c-z ball

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

86637933

JAM NUT,5/16" - 24, Gr 5

(Replaced 124920) Jam, 5/16"-24, G5

1шт.

23

531358R1

ROD

speed control

1шт.

24

129-216

JAM NUT,Jam, 5/16"-18, G5, LH

ARM, cam actuating, Replaced 403516R1

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

25

455332

NUT,Jam, 5/16"-18, G5, LH

5/16-24 x 2-3/8 cd pltd LH, thd hex

1шт.

26

25472R1

BALL JOINT

JOINT, 5/16-24 x 2-3/8 cd pltd lh thd hex

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

3121549R1

KNOB

KNOW, range shift upper lever

1шт.

28

528139R1

ROD ASSY.

ROD ASSY, range shift rear

1шт.

29

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

30

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/2 pln lt adj, or

1шт.

30

213-316

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS, 3/8-24 x 2-3/16 pln sht adj, or

1шт.

30

161003C1

NO LONGER SERVICED

CLEVIS, 3/8-24 x 2-1/4 rod end

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN, 3/8 x 1.218 phc clevis

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

Q3641

WASHER

.406 x .750 x .021 pln

1шт.

31

530934R1

SPACER

lever

1шт.

32

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

range shift lever, replaces 539245R1

1шт.

33

454331R1

SNAP RING,#87, Ext

1шт.

34

3121445R1

LEVER ASSY.

LEVER W/BUSHING, range shift includes ref no. 32

1шт.
