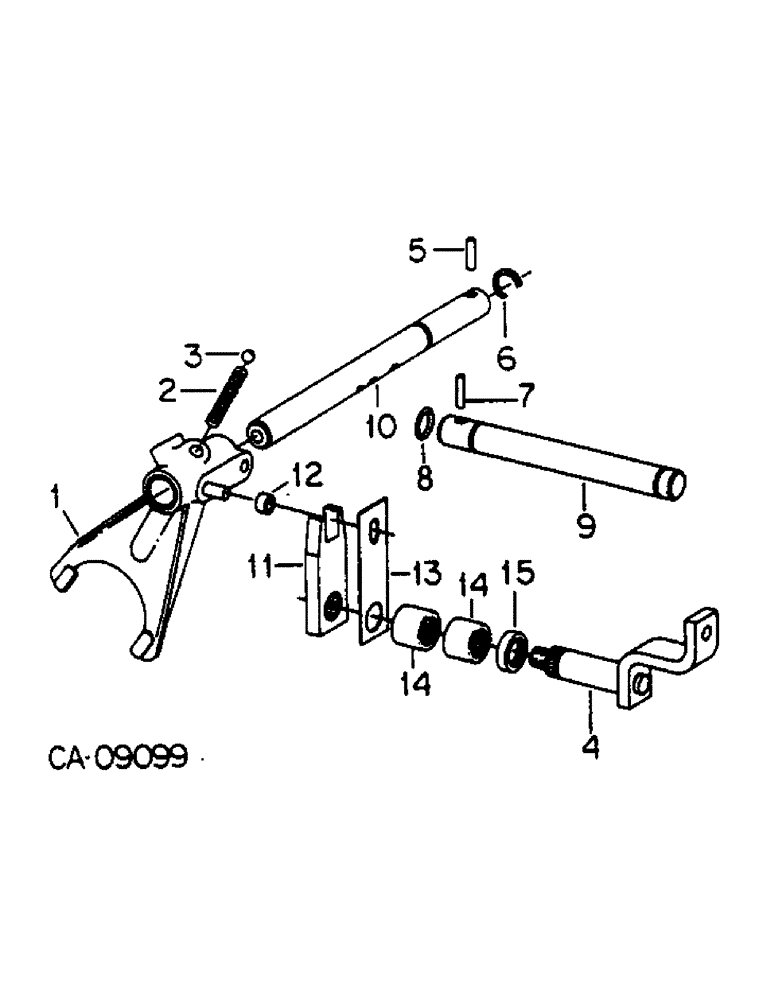

Запчасти Case IH HYDRO 84 (07-48) - DRIVE TRAIN, TRANSMISSION CONTROLS, INTERNAL, HYDRO 84 TRACTORS, SERIAL NO. 8548 AND ABOVE (04) - Drive Train

1

86311C1

FORK

ASSY, range shift

1шт.

2

103062C1

SPRING

poppet ball

1шт.

3

17013R1

BALL,13/32" Dia

1шт.

4

1289948C1

ARM

ASSY, range shift

1шт.

21018R1

WASHER

.781 x 1.500 x .027 pln

1шт.

16066R1

WASHER

.781 x 1.500 x .054 pln

1шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 pln p/t lock type 5

1шт.

5

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

6

148501R1

RING, retaining

1шт.

7

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

8

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 class 5

1шт.

9

527853R1

SHAFT

hydrostatic range lever

1шт.

10

86304C1

RAIL

range shift fork

1шт.

11

1286421C1

ARM

range shift inner

1шт.

12

1286423C1

BUSHING

range shift pin

1шт.

13

86310C1

PLATE

retainer

1шт.

14

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

2шт.

15

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

1шт.
