(07-47) - DRIVE TRAIN, TRANSMISSION CONTROLS, INTERNAL, HYDRO 84 TRACTORS, TRACTORS WITH S/N 8547 AND BELOW

Запчасти Case IH HYDRO 84 (07-47) - DRIVE TRAIN, TRANSMISSION CONTROLS, INTERNAL, HYDRO 84 TRACTORS, TRACTORS WITH S/N 8547 AND BELOW (04) - Drive Train

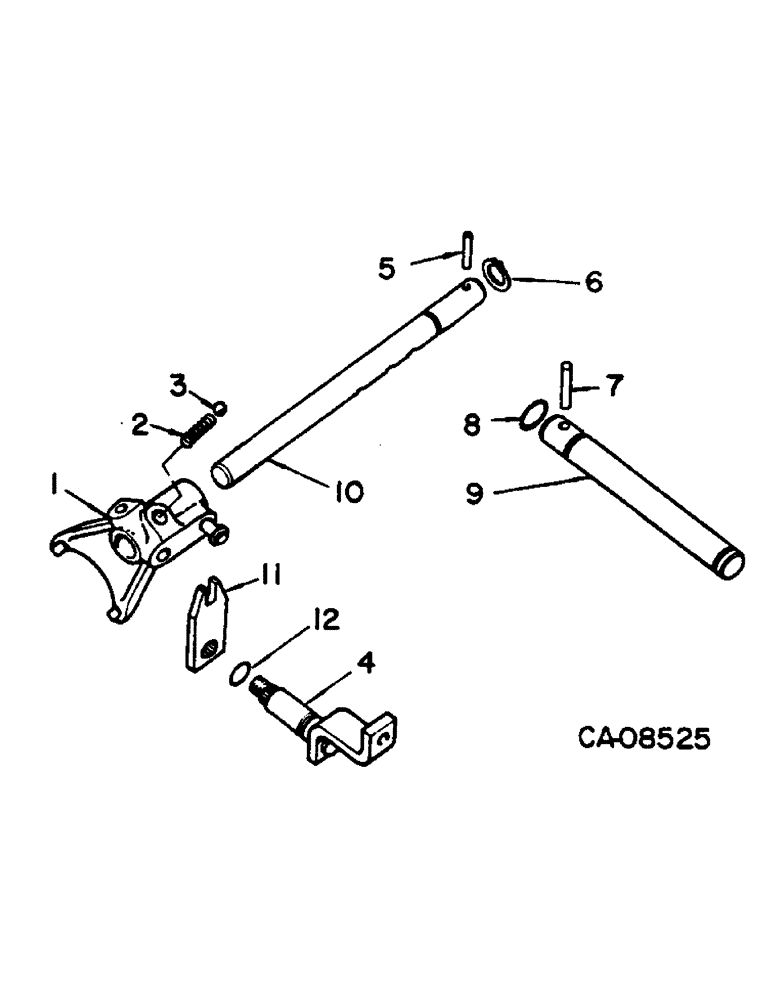

Схема запчастей Case IH HYDRO 84 - (07-47) - DRIVE TRAIN, TRANSMISSION CONTROLS, INTERNAL, HYDRO 84 TRACTORS, TRACTORS WITH S/N 8547 AND BELOW (04) - Drive Train
8
7
10
3
2
11
4
1
5
12
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

538913R4

FORK

ASSY, range shift

1шт.

2

534053R1

SPRING

poppet ball

1шт.

3

17013R1

BALL,13/32" Dia

1шт.

4

405167R3

ARM

ASSY, range shift

1шт.

Q3501

WASHER

.781 x 1.250 x .054 pln NUT, 1/2 pln p/t lock type 5

1шт.

5

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

6

661652R1

SNAP RING,#75, Ext

1шт.

7

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

8

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 class 5

1шт.

9

527853R1

SHAFT

hydrostatic range lever

1шт.

10

402150R1

RAIL

range shift fork

1шт.

11

405169R2

ARM

range shift inner

1шт.

12

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 class 6

1шт.
