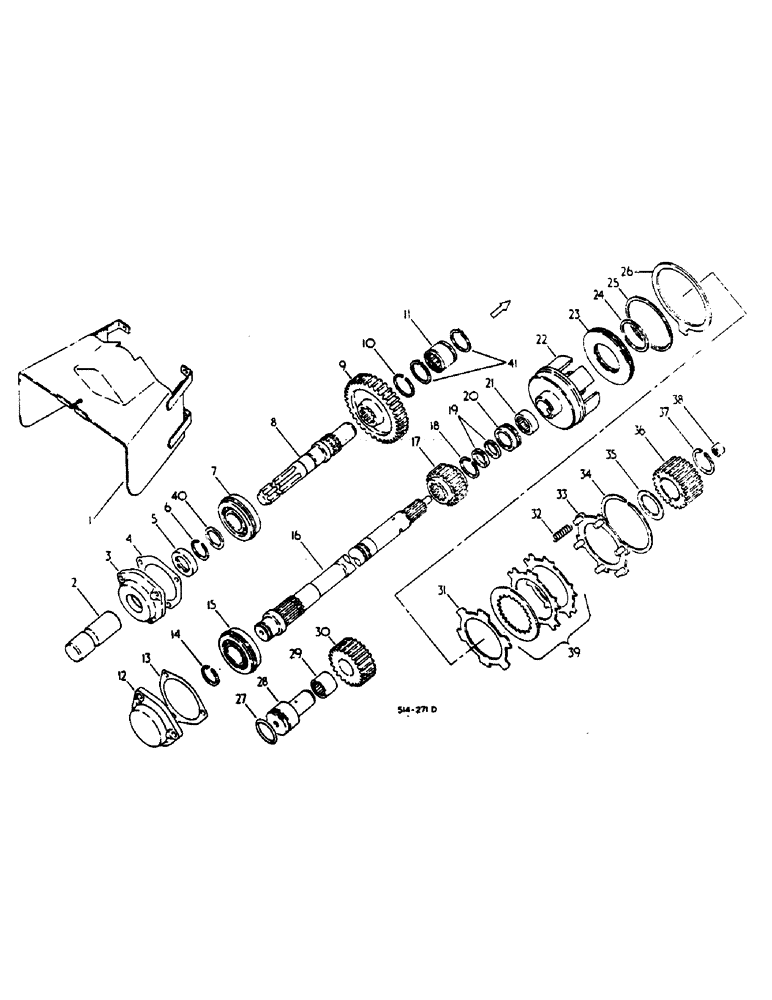

Запчасти Case IH HYDRO 84 (07-35) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF, SINGLE SPEED, UPPER OUTPUT SHAFT W/ PROVISION FOR SIDE PTO (04) - Drive Train

1

401734R1

GUARD ASSY.

SHIELD ASSY, IPTO safety

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

3054841R2

TUBE

ASSY, IPTO shaft protection, PVC, replaces 406808R1

1шт.

3

401725R2

FLANGED BEARING

IPTO shaft brg, 684, Serial Range: -6944

1шт.

3

401725R2

FLANGED BEARING

IPTO shaft brg, hydro 84, Serial Range: -5796

1шт.

3

1500086C1

FLANGED BEARING

IPTO shaft bearing, 684, Start Serial: 6945

1шт.

3

1500086C1

FLANGED BEARING

IPTO shaft bearing, hydro 84, Serial Range: -5797

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

3шт.

4

399843R3

GASKET

shaft brg retainer

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL, shaft oil

1шт.

6

607186R1

SNAP RING,#156, Ext

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING, shaft ball, hydro 84 tractors

1шт.

7

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, shaft ball, 684 tractors

1шт.

8

3113017R1

SHAFT

upper output, 684, Serial Range: -6944

1шт.

8

3113017R1

SHAFT

upper output, hydro 84, Serial Range: -5796

1шт.

8

1500087C1

SHAFT

upper output, 684, Start Serial: 6945

1шт.

8

1500087C1

SHAFT

upper output, hydro 84, Start Serial: 5797

1шт.

9

404237R1

PINION

GEAR, driven, 36T, hydro 84 tractors

1шт.

9

66192C1

GEAR

driven, 38T, 684 tractors

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

RING, 1.640 ext rect sect ret

1шт.

11

112821R91

NEEDLE BEARING

614 RPM shaft needle, 684, Serial Range: -6944

1шт.

11

112821R91

NEEDLE BEARING

614 RPM shaft needle, hydro 84, Serial Range: -5796

1шт.

11

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

ASSY, 614 RPM shaft needle, 684, Start Serial: 6945

1шт.

11

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

ASSY, 614 RPM shaft needle, hydro 84, Start Serial: 5797

1шт.

12

66191C1

FLANGED BEARING

IPTO brg end

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

3шт.

13

399843R3

GASKET

shaft brg retainer

1шт.

14

607186R1

SNAP RING,#156, Ext

1шт.

15

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING, shaft ball, used w/lower shaft drive gear, 22T

1шт.

15

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, shaft ball, used w/lower shaft drive gear, 21T

1шт.

16

66189C1

SHAFT ASSY.

SHAFT ASSY, IPTO driving

1шт.

17

404232R1

GEAR

lower shaft drive, 21T, 684 tractors

1шт.

17

404233R1

PINION

GEAR, lower shaft drive, 22T, hydro 84 tractors

1шт.

18

336000R1

SNAP RING,#175, 1.640", Ext

RING, 1.640 ext rect sect ret

1шт.

19

166972R1

RING

shaft sealing

1шт.

20

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft

1шт.

21

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING, shaft needle

1шт.

22

66068C1

GEAR

CUP, clutch w/44T gear, tractors w/side drive PTO

1шт.

22

3125149R1

CUP

front clutch, row crop & utility tractors w/o side drive PTO

1шт.

22

1500020C1

CUP

front clutch, all wheel drive tractor w/o side drive PTO

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

23

401722R1

PISTON

clutch

1шт.

24

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

RING, piston seal, inner

1шт.

25

401724R1

SEAL,0.551" ID x 0.07" Width

RING, piston seal, outer

1шт.

26

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO brake

1шт.

27

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 x 3/32

1шт.

28

401726R1

SHAFT

IPTO idler

1шт.

29

570450R91

NEEDLE BEARING

idler shaft needle

1шт.

30

401727R1

PINION

GEAR, idler, 24T

1шт.

31

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

piston return

1шт.

32

66182C1

SPRING

piston return

1шт.

33

66186C92

PLATE ASSY.

PLATE ASSY, clutch backing

1шт.

19555R1

PIN,5/16" x 1", Coiled

6шт.

34

401720R1

CIRCLIP

RING, backing plate snap

1шт.

35

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

36

66183C2

HUB ASSY.,45T

HUB ASSY, clutch

1шт.

37

401756R1

SNAP RING,#206, 1.936", Ext

RING, 1.936 ext rect sect ret

1шт.

38

533325R91

BEARING, NEEDLE

BEARING, IPTO driven shaft needle

1шт.

39

66193C91

PACKAGE

clutch plate service, consists of, 5 disc, NSS, 8 plate, NSS

1шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

inner

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING, outer

1шт.

66182C1

SPRING

6шт.

40

1500085C1

WASHER

1шт.

41

202307R1

SNAP RING,#206, Ext

Retaining, 1.906" #206, Ext

2шт.

1093099R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, IPTO speed 540, 684 tractors

1шт.

1093101R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, IPTO speed 540, hydro 84 tractors, is a picture of the shaft with arrow

1шт.

1287945C1

DECAL

PRODUCT-GRAPHIC, IPTO overspeed, 600 RPM maximum

1шт.
