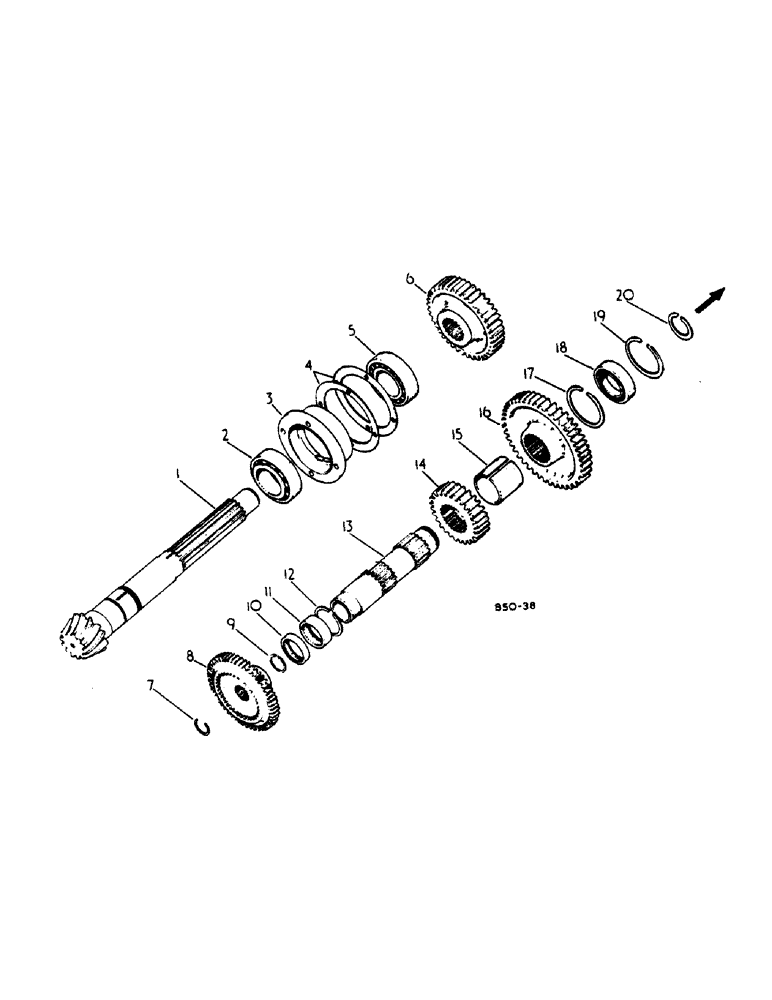

Запчасти Case IH HYDRO 84 (07-20) - DRIVE TRAIN, RANGE TRANSMISSION, IN REAR FRAME, HYDRO 84 TRACTORS (04) - Drive Train

1

NSS

NOT SOLD SEPARAT

SHAFT, pinion, 12T, utility & row crop tractors, not serviced separately, refer to main shaft bevel gears listing this group

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT, pinion, 11T, all wheel drive tractors, not serviced separately, refer to main shaft bevel gears listing this group

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSY, main shaft rear

1шт.

3

399825R1

BEARING CUP

CAGE, main shaft brg

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

4шт.

4

65423C1

SHIM KIT

PACKAGE, main shaft brg cage shim service, consists of, 2 shim.004 (NSS), 5, shim .007 (NSS)

1шт.

5

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSY, main shaft front

1шт.

6

536911R5

GEAR

hi-lo sliding, 44T

1шт.

7

533266R1

RING, SNAP

RING, IPTO front driven shaft rear snap

1шт.

8

404218R1

GEAR

pump drive, 55T

1шт.

9

399837R1

SNAP RING,#118, 1.121", Ext

RING, 1.121 ext rect sect ret

1шт.

10

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING, pump drive gear

1шт.

11

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING, countershaft needle

1шт.

12

398264R1

SNAP RING,#215, 2.026", Ext

RING, 2.026 ext rect sect ret

1шт.

13

404096R1

SHAFT

range transmission counter

1шт.

14

536910R1

PINION

GEAR, lo-range driving, 24T

1шт.

15

399835R1

BUSHING

countershaft gears

1шт.

16

404098R1

GEAR

constant mesh, 40T

1шт.

17

399832R1

RING, SNAP

RING, countershaft brg int snap

1шт.

18

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

BEARING, countershaft front ball

1шт.

19

399832R1

RING, SNAP

RING, countershaft brg int snap

1шт.

20

327068R1

RING, SNAP

RING, countershaft brg ext snap

1шт.
