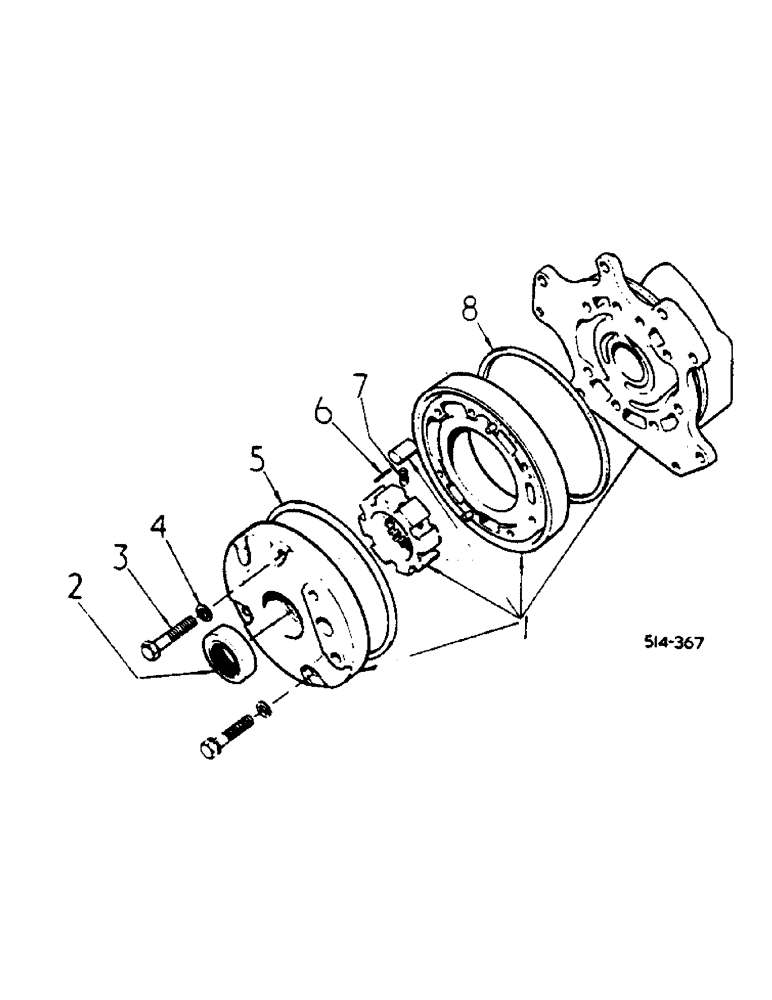

Запчасти Case IH HYDRO 84 (07-17) - DRIVE TRAIN, HYRDOSTATIC CHARGE PUMP, HYDRO 84 TRACTORS (04) - Drive Train

1

66454C91

PUMP, HYDRAULIC

PUMP ASSY, charge, consists of items 2 thru 8

1шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 phc p/t type 8

5шт.

2

405743R91

OIL SEAL

oil

1шт.

3

397440R1

12 PT SCREW,Flg, 3/8" - 16 x 1.88", Gr 5

SCREW, hex washer hd

2шт.

4

379439R1

RETAINER

copper, or

2шт.

4

565832R1

WASHER

copper

2шт.

5

405172R1

RING

rectangular seal

1шт.

6

537786R1

KIT

slipper pin, consists of 8 std. pins

1шт.

7

397433R1

SPRING

slipper

8шт.

8

405172R1

RING

rectangular seal

1шт.
