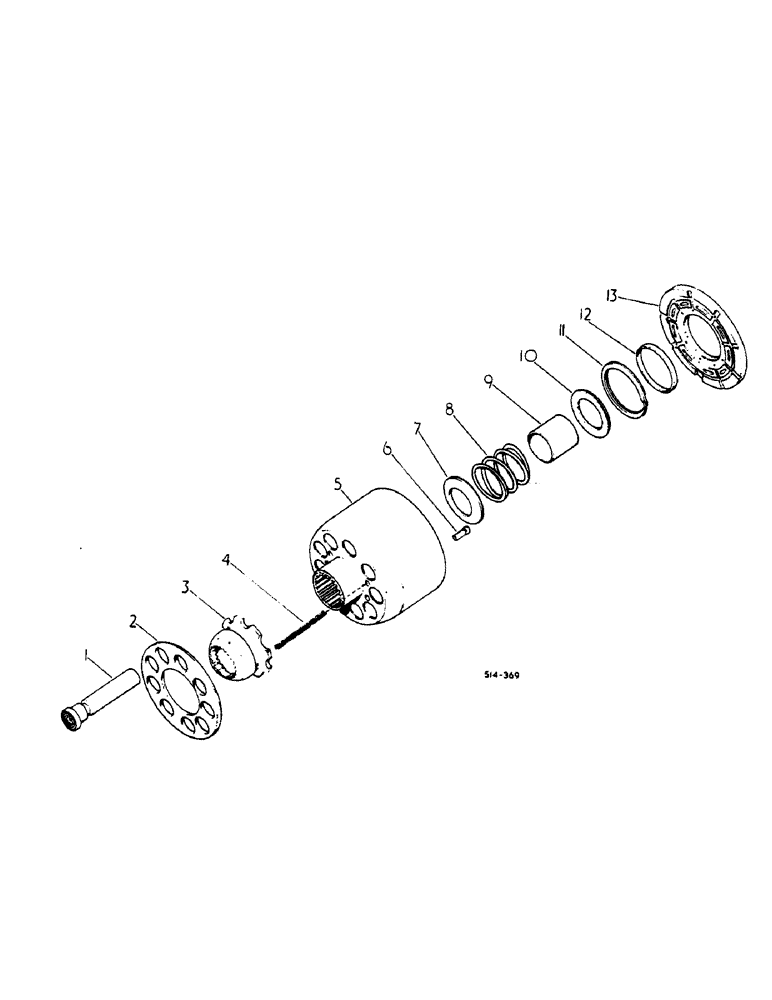

Запчасти Case IH HYDRO 84 (07-16) - DRIVE TRAIN, BLOCK KIT, PUMP CYLINDER, HYDRO 84 TRACTORS (04) - Drive Train

1252006C91

PACKAGE

BLOCK KIT, pump cylinder, replaces 138038R91, consists of ref nos 1, 2, 3, 4, and 6 thru 13

1шт.

1

1252007C1

PISTON

ASSY, replaces 539256R1

9шт.

2

394155R1

RETAINER

slipper

1шт.

3

394154R1

GUIDE

slipper retainer

1шт.

4

71220C1

SPRING

retainer, use with six spring block

6шт.

5

71219C1

BLOCK ASSY.

BLOCK ASSY, cylinder, six spring

1шт.

6

394164R1

PIN

piston cylinder

1шт.

7

394158R1

SEAT

spring

1шт.

8

532302R2

SPRING

cylinder block, replaces 394194R1

1шт.

9

394159R1

GUIDE

spring

1шт.

10

394161R1

RETAINER

spring

1шт.

11

21015R1

SNAP RING,#212, 2.217, Int, Spiral

RING, 2.217 med int spiral ret

1шт.

12

394162R1

RING

PILOT, bearing plate

1шт.

13

404201R1

PLATE

bearing

1шт.
