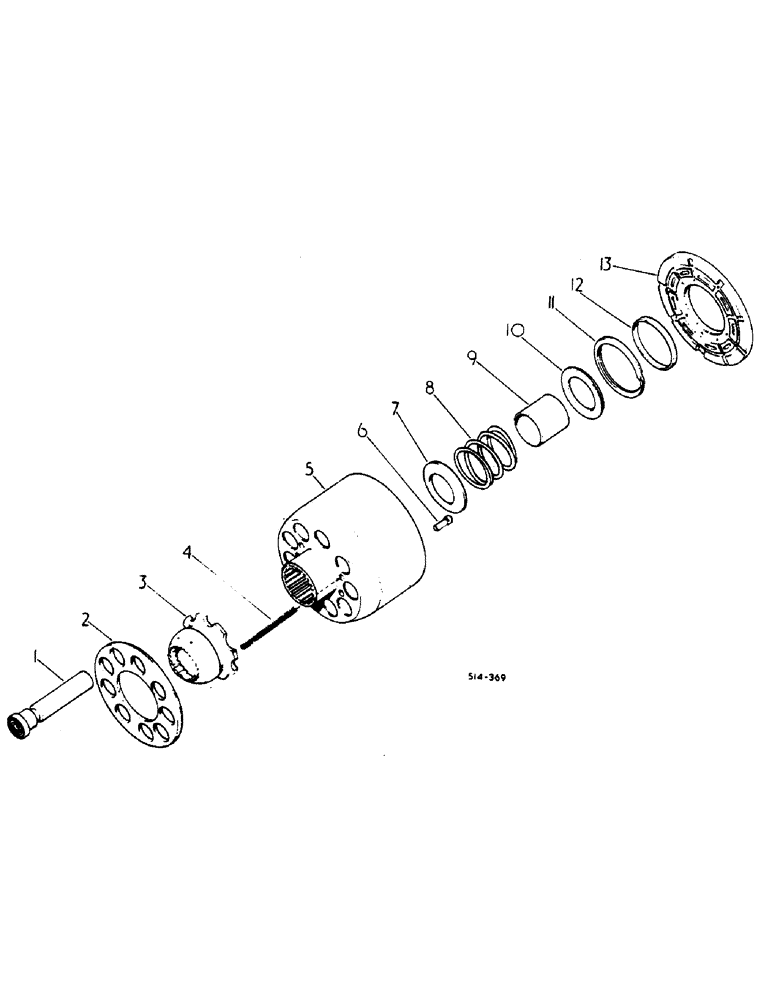

Запчасти Case IH HYDRO 84 (07-15) - DRIVE TRAIN, BLOCK KIT, MOTOR CYLINDER, HYDRO 84 TRACTORS (04) - Drive Train

133790C91

KIT

BLOCK KIT, motor cylinder, consists of ref nos 1, 2, 3, 4, 6, 7, 9 thru 13 & spring, 71887C1

1шт.

NSS

NOT SOLD SEPARAT

BLOCK KIT, motor cylinder, consists of ref nos 1, 2, 3, 4, 6, 7, 9 thru 13 & spring, 532303R2

1шт.

1

71605C1

PISTON ASSY.

PISTON ASSY

9шт.

2

405133R1

RETAINER

slipper

1шт.

3

405132R1

GUIDE

slipper retainer

1шт.

4

67822C1

SPRING

retainer, use w/six spring block

6шт.

5

67821C1

BLOCK

ASSY, cylinder, six spring

1шт.

6

527636R1

PIN

piston cylinder

1шт.

7

405136R1

SEAT

spring

1шт.

8

71887C1

SPRING

cylinder block, use w/kit, 133790C91

1шт.

8

532303R2

SPRING

cylinder block, use w/kit, 108761C91

1шт.

9

405137R1

GUIDE

spring

1шт.

10

405139R1

RETAINER

spring

1шт.

11

558383R1

SNAP RING,#250, 2.606, Int, Spiral

RING, 2.606 med int spiral ret

1шт.

12

405140R1

RING

PILOT, bearing plate

1шт.

13

405141R1

PLATE

bearing

1шт.
