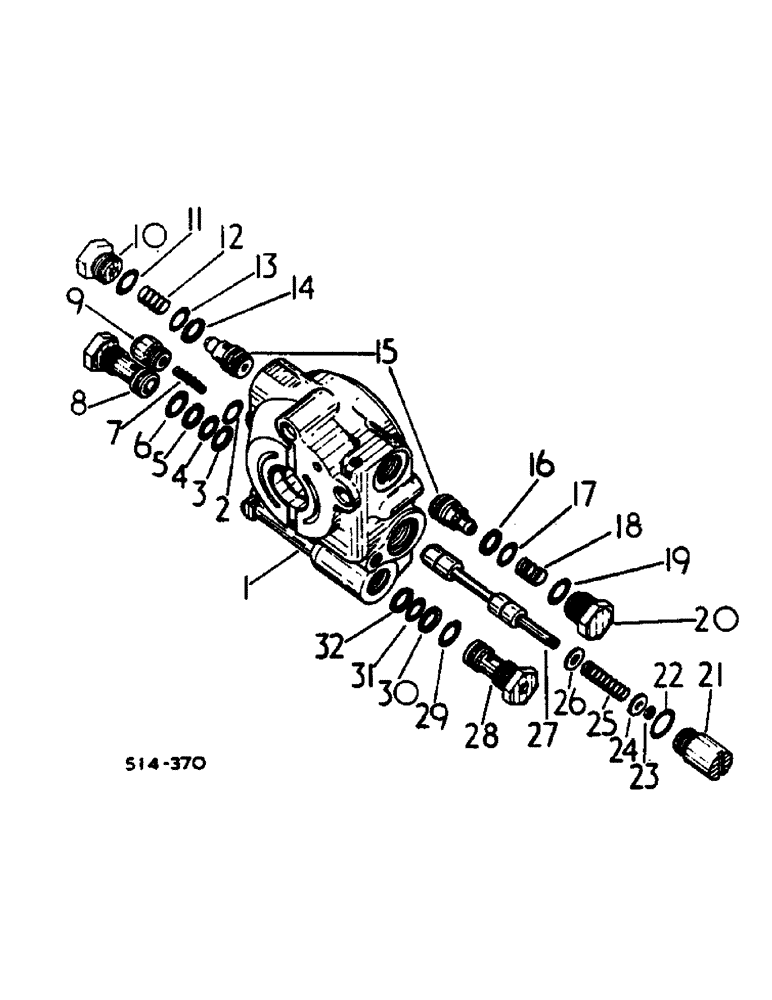

Запчасти Case IH HYDRO 84 (07-14) - DRIVE TRAIN, CENTER SECTION VALVE, HYDRO 84 TRACTORS (04) - Drive Train

1

400987R92

BODY

ASSY, center section valve, consists of, valve, NSS, body NSS

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

533356R11

PLUG

1шт.

396067R1

PLUG

1шт.

396066R1

SNAP RING,#46, .433", Ext

RING

1шт.

531079R1

SPRING

1шт.

533357R1

SPRING

1шт.

396063R2

WASHER

1шт.

396064R2

WASHER

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

3

393887R1

BACK-UP RING

RING, back up, relief valve

1шт.

4

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 x 1 x 3/32, relief valve

1шт.

5

393887R1

BACK-UP RING

RING, back up, relief valve

1шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube, relief valve

1шт.

7

533357R1

SPRING

shuttle valve centering

1шт.

8

531770R2

VALVE, PRESSURE RELI

VALVE ASSY, relief

1шт.

9

533356R11

PLUG

ASSY, shuttle valve spring

1шт.

10

400988R1

PLUG

1-3/16-12 str thd o-ring boss

1шт.

11

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube, check valve

1шт.

12

70960C1

SPRING

check valve retention

1шт.

13

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 x 1 x 3/32, relief valve

1шт.

14

393887R1

BACK-UP RING

RING, back up, relief valve

1шт.

15

528778R1

CHECK VALVE

VALVE ASSY, check, or

2шт.

15

528345R1

CHECK VALVE

VALVE ASSY, check

2шт.

16

393887R1

BACK-UP RING

RING, back up, check valve

1шт.

17

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 x 1 x 3/32, check valve

1шт.

18

7-960C1

SPRING, check valve retention

1шт.

19

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube, check valve

1шт.

20

400988R1

PLUG

1-3/16-12 str thd o-ring boss

1шт.

21

396067R1

PLUG

shuttle valve spring retainer

1шт.

22

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

23

396066R1

SNAP RING,#46, .433", Ext

RING, .433 ext rect sect ret

1шт.

24

396064R2

WASHER

shuttle valve outer

1шт.

25

531079R1

SPRING

shuttle valve centering

1шт.

26

396063R2

WASHER

shuttle valve inner

1шт.

27

406379R1

VALVE

center section shuttle, code A

1шт.

27

406380R1

VALVE

center sectoin shuttle, code B

1шт.

27

406381R1

VALVE

center section shuttle, code C

1шт.

27

406382R1

VALVE

center section shuttle, code D

1шт.

27

406383R1

VALVE

center section shuttle, code E

1шт.

27

406384R1

VALVE

center section shuttle, code F

1шт.

28

531770R2

VALVE, PRESSURE RELI

VALVE ASSY, relief

1шт.

29

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube, relief valve

1шт.

30

393887R1

BACK-UP RING

RING, back up, relief valve

1шт.

31

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 x 1 x 3/32, relief valve

1шт.

32

393887R1

BACK-UP RING

RING, back up, relief valve

1шт.

393885R91

GASKET KIT

PACKAGE, relief valve seal, consists of

1шт.

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 class 6

4шт.

393887R1

BACK-UP RING

RING, back-up

6шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube class 6

4шт.
