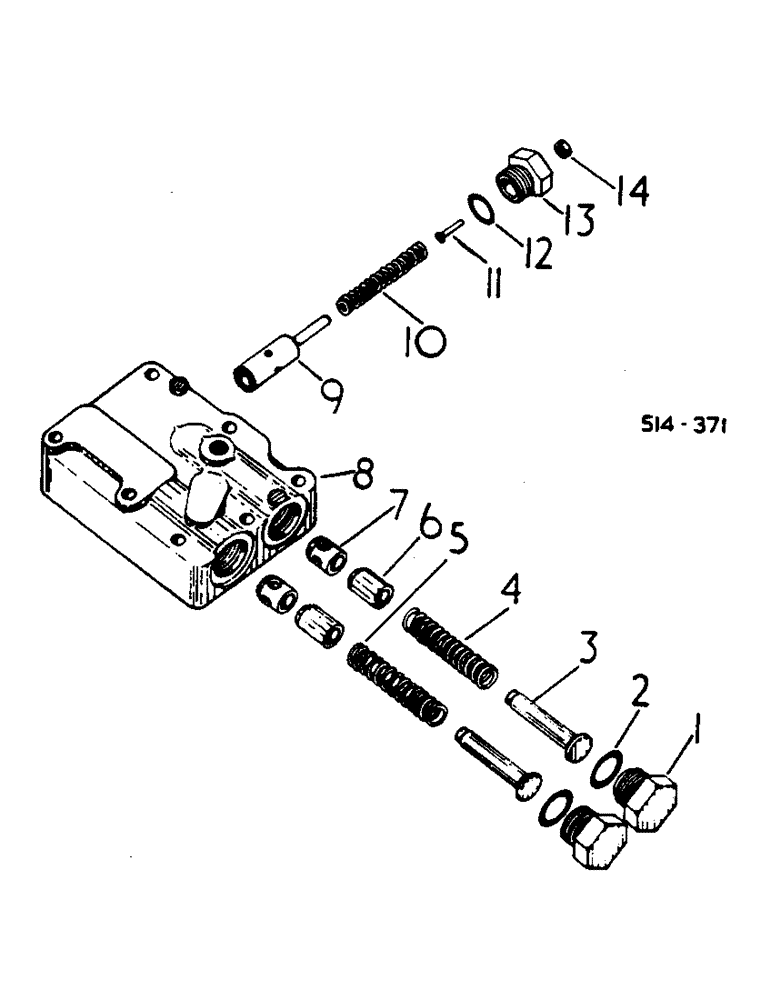

Запчасти Case IH HYDRO 84 (07-13) - DRIVE TRAIN, MULTI-VALVE, HYDRO 84 TRACTORS (04) - Drive Train

1

396133R1

PLUG

valve retaining

2шт.

2

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube, valve retaining plug

2шт.

3

396130R2

PIN

poppet valve piston

2шт.

4

396128R1

SPRING

poppet valve, heavy

1шт.

5

396129R1

SPRING

poppet valve, light

1шт.

6

396131R3

VALVE POPPET

VALVE, poppet

2шт.

7

396132R1

BUSHING

poppet valve

2шт.

8

401094R2

BODY

multi-valve

1шт.

9

529318R1

VALVE

cooler by-pass

1шт.

21872R1

WASHER

.406 x .625 x .054

1шт.

10

529319R1

SPRING

cooler by-pass

1шт.

11

535153R1

PIN

pressure check

1шт.

12

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube, cooler by-pass valve plug

1шт.

13

535151R1

PLUG

cooler by-pass valve

1шт.

14

535152R91

WIPER SEAL

SEAL, oil

1шт.
