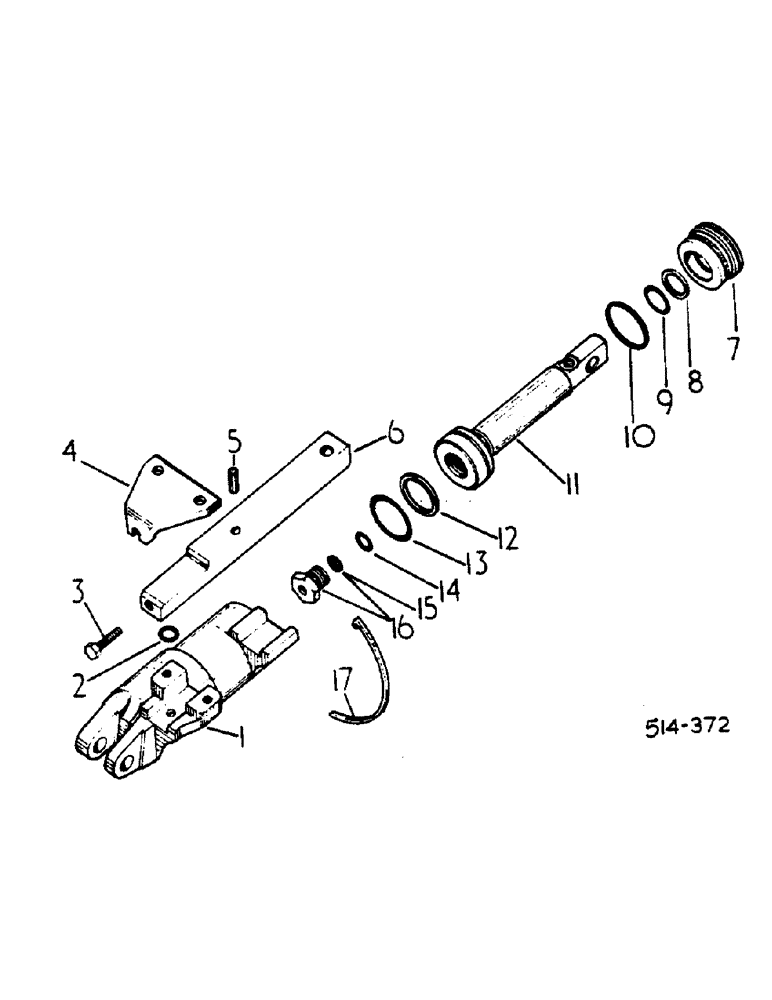

Запчасти Case IH HYDRO 84 (07-12) - DRIVE TRAIN, PUMP SERVO CYLINDER, HYDRO 84 TRACTORS (04) - Drive Train

1

401079R1

BODY

1шт.

2

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

3

396108R2

BOLT,Hex, 5/16" - 24 x 1.125"

adj block

1шт.

4

401087R1

BRACKET

adj block

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

2шт.

5

Not used this application

1шт.

6

401086R12

BLOCK ASSY.

BLOCK

1шт.

7

401084R1

GUIDE

1шт.

8

405310R1

RING

guide sealing inner

1шт.

9

347070R1

O-RING,1.301" ID x 0.07" Width

1-5/16 x 1-7/17 x 1/16

1шт.

10

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1-5/8 x 1-13/16 x 3/32

1шт.

11

401080R1

PISTON

1шт.

12

405311R1

RING

piston sealing

1шт.

13

379141R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

1-3/8 x 1-9/16 x 3/32

1шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

15

529960R1

STRAINER ELEMENT

STRAINER

1шт.

16

401082R11

PLUG

ASSY, fixed orifice, includes ref no. 15

1шт.

17

388968R1

ELECTRICAL WIRE

WIRE, retaining

1шт.

401088R91

STRIPPER PACKAGE

PACKAGE, pump servo cylinder o-ring & seal, consists of

1шт.

379141R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

1-3/8 x 1-9/16 class 5

1шт.

405311R1

RING

sealing

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

405310R1

RING

sealing

1шт.

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1-5/8 x 1-13/16 class 5

1шт.

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

396109R1

RING

orifice

1шт.

134630H1

SLEEVE

tube

1шт.

347070R1

O-RING,1.301" ID x 0.07" Width

1-5/16 x 1-7/16 class 5

1шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.
