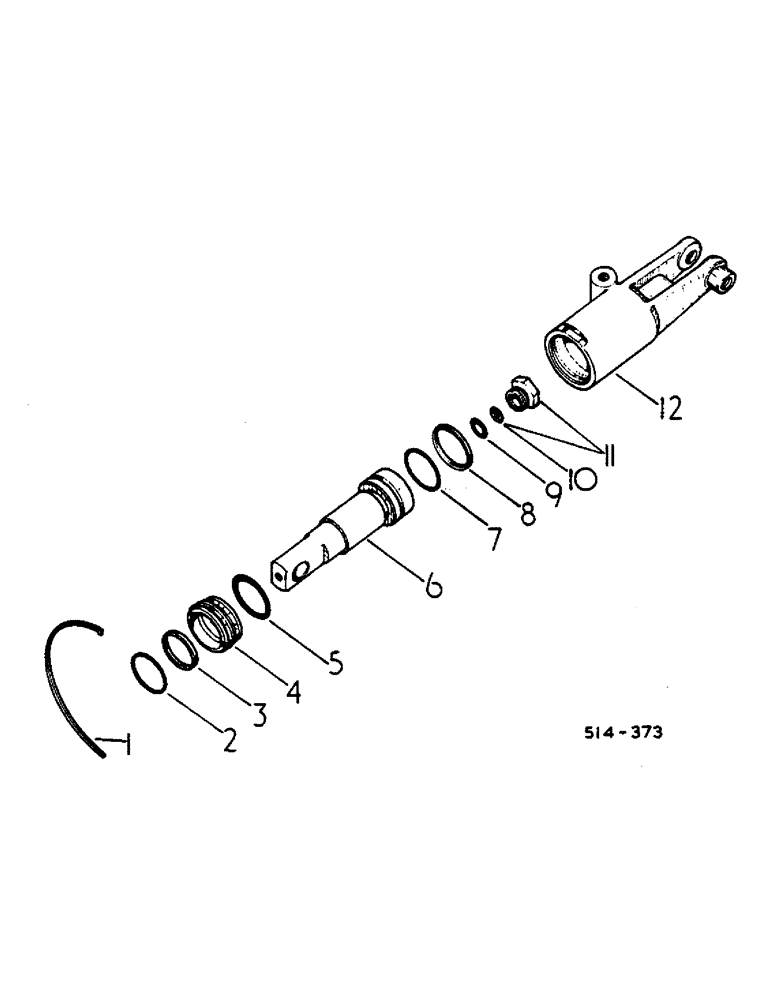

Запчасти Case IH HYDRO 84 (07-11) - DRIVE TRAIN, MOTOR SERVO CYLINDER, HYDRO 84 TRACTORS (04) - Drive Train

1

396106R1

ELECTRICAL WIRE

WIRE, retaining

1шт.

2

382781R1

O-RING,1.737" ID x 0.103" Width

1-3/4 x 1-15/16 x 3/32

1шт.

3

401092R1

RING

guide sealing inner

1шт.

4

401091R1

GUIDE

piston

1шт.

5

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32

1шт.

6

401090R1

PISTON

1шт.

7

382781R1

O-RING,1.737" ID x 0.103" Width

2-1/8 x 1-15/16 x 3/32

1шт.

8

396103R1

OLIVE

RING, piston sealing

1шт.

9

365885R1

RING

O-RING, 5/8 OD tube

1шт.

10

529376R1

STRAINER ELEMENT

STRAINER

1шт.

11

531285R91

PLUG

ASSY, fixed orifice, includes ref no. 10

1шт.

12

401089R1

BODY

cylinder

1шт.

401093R91

PACKAGE

motor servo cylinder o-ring and seal, consists of

1шт.

382781R1

O-RING,1.737" ID x 0.103" Width

1-3/4 x 1-15/16 class 5

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 class 5

1шт.

134630H1

SLEEVE

tube

2шт.

401092R1

RING

sealing

1шт.

396103R1

OLIVE

RING, sealing

1шт.

396109R1

RING

orifice

1шт.

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6

1шт.
