(07-08) - DRIVE TRAIN, MOTOR AND PUMP SERVO CYLINDER WITH CONNECTIONS, HYDRO 84 TRACTORS

Запчасти Case IH HYDRO 84 (07-08) - DRIVE TRAIN, MOTOR AND PUMP SERVO CYLINDER WITH CONNECTIONS, HYDRO 84 TRACTORS (04) - Drive Train

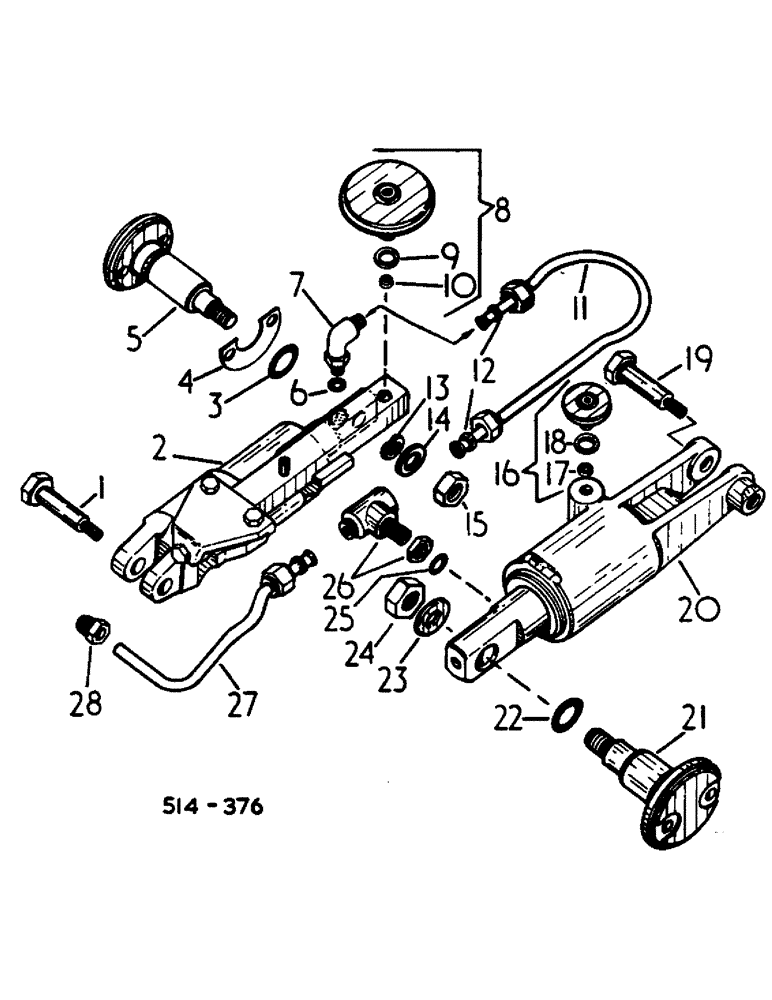

Схема запчастей Case IH HYDRO 84 - (07-08) - DRIVE TRAIN, MOTOR AND PUMP SERVO CYLINDER WITH CONNECTIONS, HYDRO 84 TRACTORS (04) - Drive Train
24
11
28
13
3
12
22
6
14
17
8
1
2
23
10
5
26
19
16
9
15
27
7
21
4
20
18
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

396119R1

BOLT,Shldr, Hex, 1/2" - 13 x 2.38"

hex hd shoulder

1шт.

2

NSS

NOT SOLD SEPARAT

CYLINDER ASSY, pump servo, for details, see list of parts under details of pump servo cylinder

1шт.

3

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

1шт.

4

401036R91

SHIM KIT

PACKAGE, pump servo trunnion shim, consists of, 3, shim .005

1шт.

NSS

NOT SOLD SEPARAT

3, shim, NSS, shim .020, NSS

1шт.

5

401035R1

TRUNNION

S, pump servo

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

401048R1

ELBOW

adj flex 5/16 tube, pump servo

1шт.

8

401049R92

PLUG

ORIFICE, pump cylinder control w/ring, includes ref nos 9 & 10

1шт.

9

403989R1

SPRING WASHER

spring

1шт.

10

396109R1

RING

1шт.

11

401047R11

TUBE ASSY.

TUBE ASSY, pump servo

1шт.

12

134630H1

SLEEVE

rubber for 5/16 OD tube

1шт.

13

401040R1

SPRING WASHER

spring

1шт.

14

401041R1

WASHER

pump servo trunnion

1шт.

15

25-118

NUT,1/2"-20, G5

1/2-20 hex

1шт.

16

530027R92

PLUG

ORIFICE, motor cylinder control w/ring, includes ref nos 17 & 18

1шт.

17

396109R1

RING

1шт.

18

403989R1

SPRING WASHER

spring

1шт.

19

396119R1

BOLT,Shldr, Hex, 1/2" - 13 x 2.38"

hex hd shoulder

1шт.

20

NSS

NOT SOLD SEPARAT

CYLINDER ASSY, motor servo, for details, see list of parts under details of motor servo cylinder

1шт.

21

401043R1

TRUNNION

motor servo

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

22

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 x 1-1/4 x 3/32

1шт.

23

401044R1

WASHER

motor servo trunnion

1шт.

24

425-1110

NUT,5/8"-18, G5

1шт.

26

401046R1

TEE

adj flex 5/16 tube, motor servo

1шт.

27

401045R11

TUBE ASSY.

TUBE ASSY, motor servo supply

1шт.

28

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty fitting

1шт.

25

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, Motor servo tee

1шт.

6

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Pump servo

1шт.
