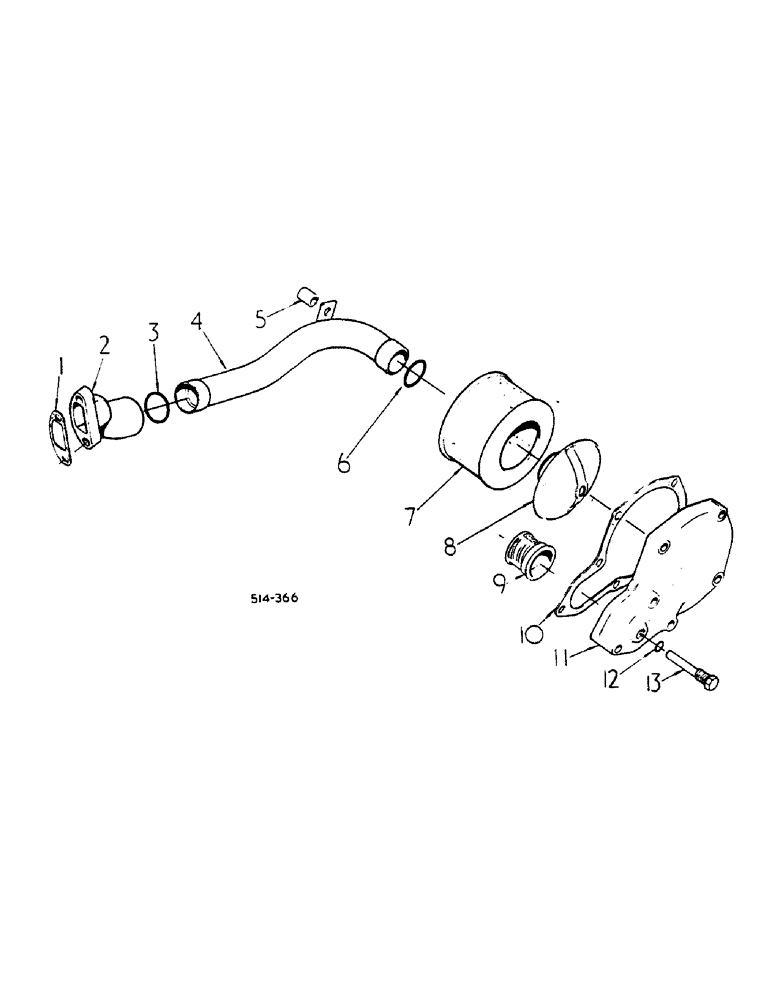

Запчасти Case IH HYDRO 84 (07-07) - DRIVE TRAIN, HYDROSTATIC SUCTION TUBE, FILTER AND COVER, HYDRO 84 TRACTORS (04) - Drive Train

1

401033R1

GASKET

suction pipe elbow

1шт.

2

401032R1

ELBOW

suction pipe

1шт.

3

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 x 1-7/8 x 1/8

1шт.

4

401074R1

TUBE ASSY.

TUBE ASSY, suction

1шт.

27348R1

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 8

3/8 x 1-5/8 PHC P/T type 8

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

5

401077R1

BUSHING

suction pipe support

1шт.

6

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 x 1-7/8 x 1/8

1шт.

7

65126C92

ELEMENT

PACKAGE, filter element service, consists of, element, NSS

1шт.

401070R1

GASKET

1шт.

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

1шт.

375271R1

O-RING,0.426" ID x 0.07" Width

1шт.

8

386121R92

VALVE

filter by-pass

1шт.

9

401072R1

VALVE

ASSY, filter shut off

1шт.

10

401070R1

GASKET

filter cover

1шт.

11

401069R1

COVER

filter

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8 x 1-5/8 pln type 5

3шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

12

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5/16 OD tube valve shut off

1шт.

13

401071R1

BOLT,Hex, 1/2" - 20 x 2 3/4"

valve shut off

1шт.
