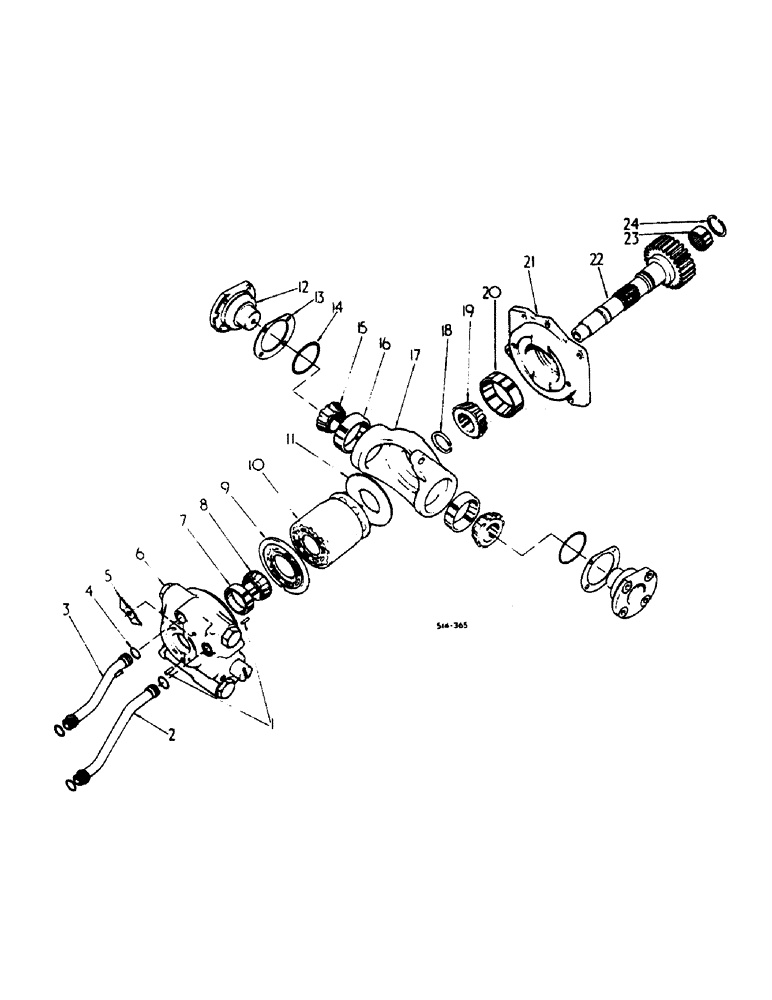

Запчасти Case IH HYDRO 84 (07-05) - DRIVE TRAIN, HYDROSTATIC OUTPUT SHAFT, CENTER SECTION, BODY & MOTOR CYL. BLOCK KIT, HYDRO 84 TRACS. (04) - Drive Train

1

394825R1

DOWEL

PIN, center section dowel

2шт.

2

400998R1

TUBE ASSY.

TUBE ASSY, center section exhaust

1шт.

3

400994R1

TUBE ASSY.

TUBE ASSY, center section charge

1шт.

4

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Exhaust & Charge Tube

2шт.

5

401000R1

STRIP

center section pipe retainer

1шт.

179814

SPACER

5/16 x 5/8 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

NSS

NOT SOLD SEPARAT

BODY ASSY, center section w/valves, for details see list of parts under detail of center section body

1шт.

400986R1

BOLT,Hex, 1/2" - 13 x 1.62"

1/2-13 x 1-5/16 hex hd cap

2шт.

7

530741R1

BEARING CUP

BEARING, output shaft front cup

1шт.

8

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

BEARING ASSY, output shaft front cone

1шт.

9

108634C1

PLATE

motor valve

1шт.

10

NSS

NOT SOLD SEPARAT

BLOCK KIT, motor cylinder, for components, see list of parts under details of block kit, motor cylinder

1шт.

11

400965R3

PLATE

thrust

1шт.

12

400966R1

TRUNNION

motor

2шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 PHC P/T type 8

8шт.

13

400967R91

SHIM KIT

PACKAGE, motor trunnion shim, consists of, 5, shim .005, NSS, shim .020, NSS, 5 shim .007, NSS

1шт.

14

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

1-13/16 x 3 x 3/32

2шт.

15

62923R91

ROLLER BEARING

ASSY, motor trunnion cone

2шт.

16

130503H

BEARING CUP

BEARING, motor trunnion cup

2шт.

17

400963R1

HOUSING

motor swash plate

1шт.

18

400971R1

RING, SNAP

RING, bearing retaining .136

1шт.

18

400972R1

RING, SNAP

RING, bearing retaining .141

1шт.

18

400973R1

RING, SNAP

RING, bearing retaining .147

1шт.

18

400974R1

RING, SNAP

RING, bearing retaining .151

1шт.

18

400975R1

RING, SNAP

RING, bearing retaining .156

1шт.

18

400976R1

RING, SNAP

RING, bearing retaining .163

1шт.

18

400977R1

RING, SNAP

RING, bearing retaining .166

1шт.

18

400978R1

RING, SNAP

RING, bearing retaining .171

1шт.

18

400979R1

RING, SNAP

RING, bearing retaining .176

1шт.

18

400980R1

RING, SNAP

RING, bearing retaining .181

1шт.

18

400981R1

RING, SNAP

RING, bearing retaining .186

1шт.

19

400960R91

ROLLER BEARING,1.7505" ID x 3.4375" OD x 1.1875, 0.9375"

BEARING ASSY, output shaft rear cone

1шт.

20

PO14039

BEARING

output shaft cup

1шт.

21

400958R1

BEARING HOUSING,2.65" ID x 4.374" OD

rear bearing

1шт.

NLS

NO LONGER SERVICED

5шт.

22

65259C1

SHAFT

output

1шт.

23

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

output shaft needle

1шт.

24

66014C1

SNAP RING

RING, output shaft bearing int snap

1шт.
