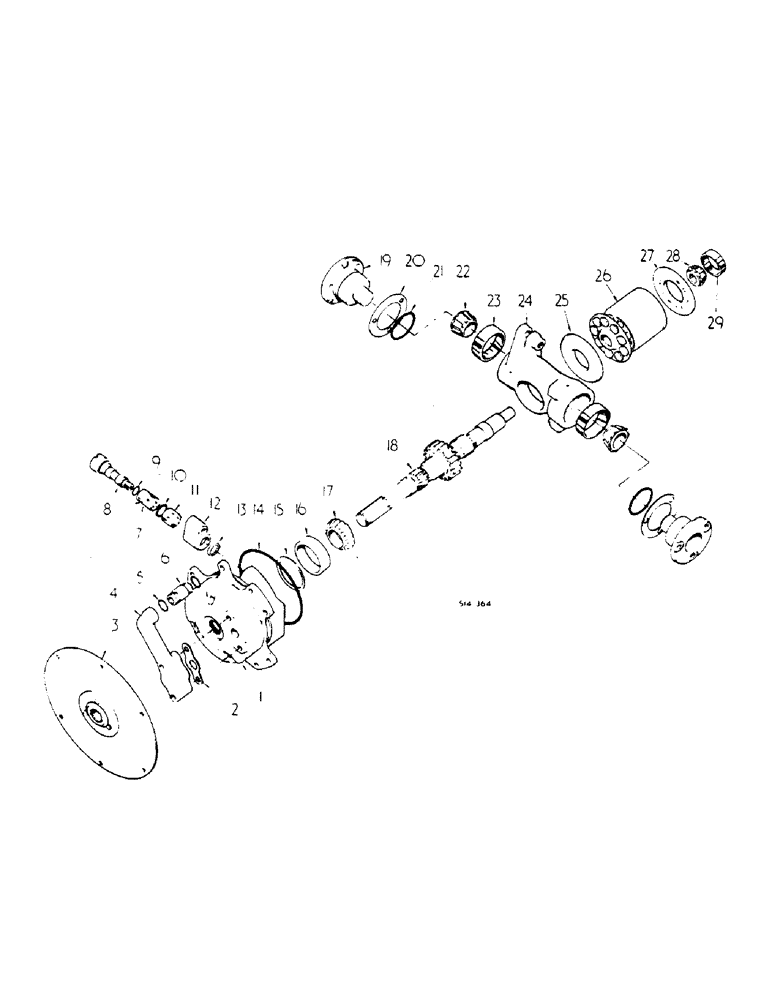

Запчасти Case IH HYDRO 84 (07-03) - DRIVE TRAIN, HYDROSTATIC INPUT SHAFT, TRANS., CHARGE PUMP AND PUMP CYLS. PUMP KIT, HYDRO 94 TRACTORS (04) - Drive Train

1

NSS

NOT SOLD SEPARAT

PUMP, transmission charge, for details see list of parts under details of transmission charge pump

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex hd nylok

5шт.

2

401028R1

GASKET

charge pump manifold

1шт.

3

404078R91

PLATE ASSY.

drive

1шт.

324711R1

BOLT

SCREW, w/nylon pellet insert, 5/16-18 x 3/4 hex hd cap

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

401027R1

MANIFOLD

charge pump

1шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

3/8 x 3-3/4 pln type 5

2шт.

565832R1

WASHER

13/32 x 5/8 x .049 copper

2шт.

5

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Charge Jumper Tube

2шт.

6

401025R1

TUBE, charge jumper

1шт.

7

529487R1

STRAINER ELEMENT

STRAINER, regulator valve

1шт.

8

529486R91

VALVE

ASSY., pressure regulator

1шт.

9

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 x 3/4 x 1/16, regulator valve

1шт.

10

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube, regulator valve

1шт.

11

396100R1

STRAINER ELEMENT

SCREEN, regulator valve strainer

1шт.

12

405194R1

HOUSING

servo regulator valve

1шт.

13

388591R1

RING

valve housing sealing

1шт.

14

343943R1

O-RING,6.234" ID x 0.139" Width

6-1/4 x 6-1/2 x 1/8

1шт.

15

401021R91

SHIM KIT

PACKAGE, input shaft front bearing shim, consists of, 5, shim .005, NSS, 5, shim .007, NSS, shim .020, NSS

1шт.

16

567849R1

BEARING CUP,1.5625" ID x 3" OD x 1.01"

input shaft front cup

1шт.

17

459454R91

ROLLER BEARING,1.563" ID x 1.01"

BEARING ASSY., input shaft front cone

1шт.

18

401009R1

SHAFT

input

1шт.

19

401012R1

TRUNNION

pump

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

20

401018R91

SHIM KIT

PACKAGE, pump trunnion shim service, consists of, 5, shim .005, NSS, 5, shim .007, NSS, shim .020, NSS

2шт.

21

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32

2шт.

22

527486R1

BEARING, CUP

BEARING, pump trunnion cup

2шт.

23

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING ASSY., pump trunnion cone

2шт.

24

401011R1

HOUSING

pump swash plate

1шт.

25

596335R3

PLATE

thrust

1шт.

26

BLOCK KIT, pump cylinder, for components, see list of parts under delails of block kit, pump cylinder

1шт.

27

108633C1

PLATE

pump valve RH

1шт.

28

400990R91

ROLLER BEARING,0.75" ID x 2.125" OD x 0.775"

BEARING ASSY., input shaft rear cone

1шт.

29

537188R1

ROLLER BEARING,0.75" ID x 2.125" OD x 0.875"

BEARING, input shaft rear cup

1шт.
