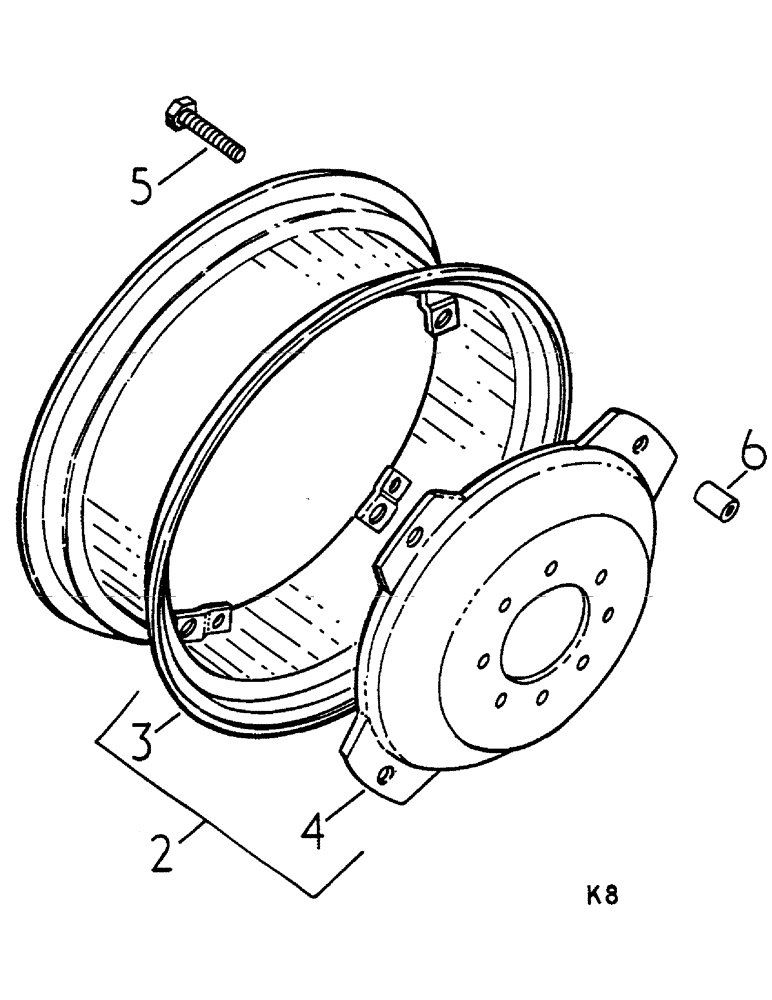

Запчасти Case IH HYDRO 84 (15-008) - FRONT WHEEL, 4-WHEEL DRIVE, Z F AXLE Wheels & Traction

1

TIRE ASSY

1шт.

2

1004591C91

WHEEL ASSY

W7-24 FRONT KIMCO

2шт.

2

1014686093

WHEEL ASSY, W8-24 FRONT KIMCO

2шт.

2

1014646R93

WHEEL ASSY, W9-24 FRONT KIMCO, ORDER 2 OFF CORRESPONDING NAGBOL FRONT WHEELS

2шт.

2

3125942R91

WHEEL ASSY.

W7-24 FRONT NAGBOL, INCLUDES RIM, DISC, BOLTS, NUTS AND WASHERS

7шт.

1500205C1

RIM

WHEEL W/LUGS

1шт.

1500208C1

DISC

WHEEL

1шт.

1500209C1

BOLT

6шт.

1500210C1

NUT

6шт.

1500211C1

WASHER

6шт.

2

3125943R91

WHEEL ASSY

W8-24 FRONT NAGBOL, INCLUDES RIM, DISC, BOLTS, NUTS AND WASHERS

2шт.

1500206C1

RIM

WHEEL W/LUGS

1шт.

1500208C1

DISC

WHEEL

1шт.

1500209C1

BOLT

6шт.

1500210C1

NUT

6шт.

1500211C1

WASHER

6шт.

2

3125944R91

WHEEL ASSY.

W9-24 FRONT NAGBOL, INCLUDES RIM, DISC, BOLTS, NUTS AND WASHERS

2шт.

1500207C1

RIM

WHEEL W/LUGS

1шт.

1500208C1

DISC

WHEEL

1шт.

1500209C1

BOLT

6шт.

1500210C1

NUT

6шт.

1500211C1

WASHER

6шт.

3

1004592C1

RIM

USE W/WHEEL 1014591C91

1шт.

3

1002008C1

RIM

WHEEL USE W/WHEEL 1014686C93

1шт.

3

1060391C1

RIM

WHEEL USE W/WHEEL 1014646R93, ORDER 2 OFF CORRESPONDING NAGBOL FRONT WHEELS

1шт.

4

1004593C1

DISC, WHEEL

KIMCO SERVICE ONLY

2шт.

5

1002000C1

WHEEL BOLT

KIMCO SERVICE ONLY

8шт.

5

1500605C1

BOLT,M16 x 1.5 x 88mm

KIMCO REWORKED WHEELS

8шт.

6

1014946C1

NUT

KIMCO SERVICE ONLY

8шт.

1014377C1

WASHER

1шт.

3147863R91

RIM

WHEEL ASSY W10-24, Z F AXLE

2шт.

3147865R1

DISC, WHEEL

24 INCH, INCLUDES BOLTS, NUTS AND WASHERS, Z F AXLE

2шт.

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

Z F AXLE

12шт.

425-1110

NUT,5/8"-18, G5

Z F AXLE

12шт.

492-11062

BEARING WASHER,5/8"

Optional, Z F Axle

12шт.

1502033C91

WHEEL

ASSY W10-24, INCLUDES DISCS, RIMS, NUTS, BOLTS AND WASHERS, Z F AXLE

2шт.

1502034C1

DISC, WHEEL

Z F AXLE

2шт.

1502035C1

RIM

WHEEL ASSY, WHEEL, Z F AXLE

2шт.

1500210C1

NUT

5/8 UNF, Z F AXLE

12шт.

1500209C1

BOLT

5/8 X 78 MM, Z F AXLE

12шт.

1502036C1

WASHER

Z F AXLE

12шт.

1500774C91

WHEEL

ASSY, W8-24, Z F AXLE, SERVICE PARTS ARE RIM, DISC AND BOLT, INCLUDES THE FOLLOWING PARTS

2шт.

1500206C1

RIM

WHEEL WITH 6 LUGS, Z F AXLE

1шт.

1502391C1

DISC

WHEEL, Z F AXLE

1шт.

1500209C1

BOLT

5/8 UNF, Z F AXLE

6шт.

1500210C1

NUT

5/8 UNF, Z F AXLE

6шт.

1502036C1

WASHER

6шт.
