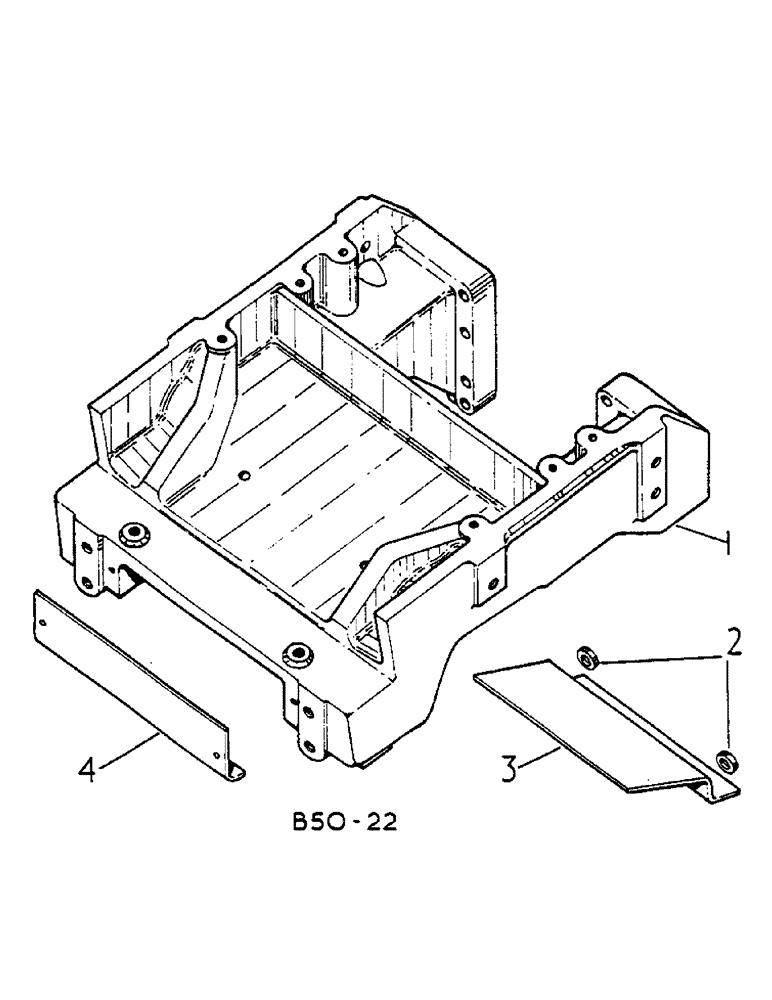

Запчасти Case IH HYDRO 84 (14-009) - FRONT BOLSTER Suspension

1

3121167R2

BOLSTER

BOLSTER, FRONT, STANDARD MACHINES, INCLUDES SCREWS

1шт.

1

3121169R3

BOLSTER

Front, 4WD, Includes screws

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 X 2-1/2 HEX HD CAP

6шт.

24970R1

BOLT

5/8-11 x 2-1/2 Twelve pt flange, Optional

6шт.

2

534813R1

SPACER

BOLSTER AIR BAFFLE, FOR SERVICE ONLY ON 3121167R1 AND 3121169R2

1шт.

3

534812R1

BAFFLE

BOLSTER

1шт.

3

1500014C1

BAFFLE

BOLSTER, 4-WHEEL DRIVE, ZF AXLE, INCLUDES SCREWS AND WASHERS

1шт.

271567

BRACKET,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8-11 X 3-1/4 HEX HD CAP

2шт.

369936R1

WASHER

BOLSTER AIR BAFFLE

2шт.

4

3121168R3

COVER

BOLSTER FRONT, INCLUDES SCREWS AND WASHERS

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16-18 X 1/2 SLTD PAN HD

2шт.

80681

LOCK WASHER,5/16"

2шт.
