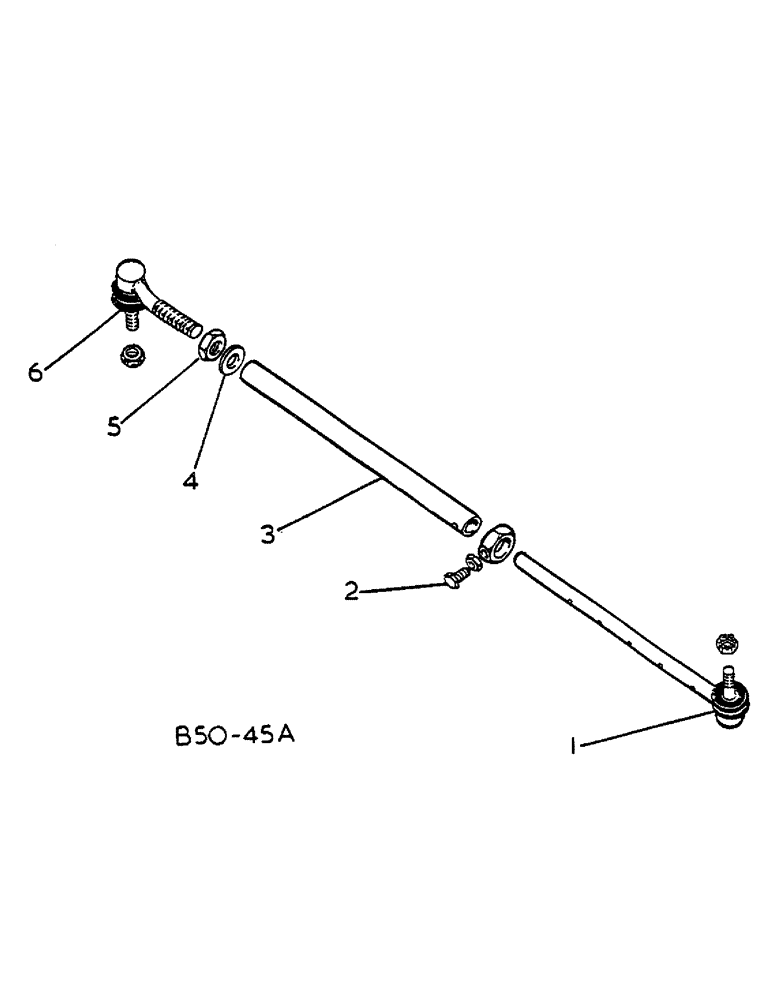

Запчасти Case IH HYDRO 84 (14-007) - ADJUSTABLE TIE ROD, ADJUSTABLE STRAIGHT FRT AXLE, 52 IN TO 77 IN TREAD Suspension

3121265R92

ROD ASSY.

ADJUSTABLE TIE, INCLUDES PINS

2шт.

121427R92

ROD ASSY, ADJUSTABLE TIE, INCLUDES PINS, OPTIONAL

2шт.

103385

COTTER PIN,1/8" x 1"

4шт.

1

3125171R1

BALL JOINT

SOCKET ASSY, OUTER

1шт.

2

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

INCLUDES NUT

1шт.

3116410R1

LOCK NUT

1шт.

3

3125172R1

TUBE,20.75 mm ID, 28 mm OD, 382 mm Length

ROD ASSY

1шт.

4

3116411R1

LOCK WASHER

TAG

1шт.

5

3116412R1

LOCK NUT

1шт.

6

3116407R2

BALL JOINT

SOCKET ASSY, INNER

1шт.
